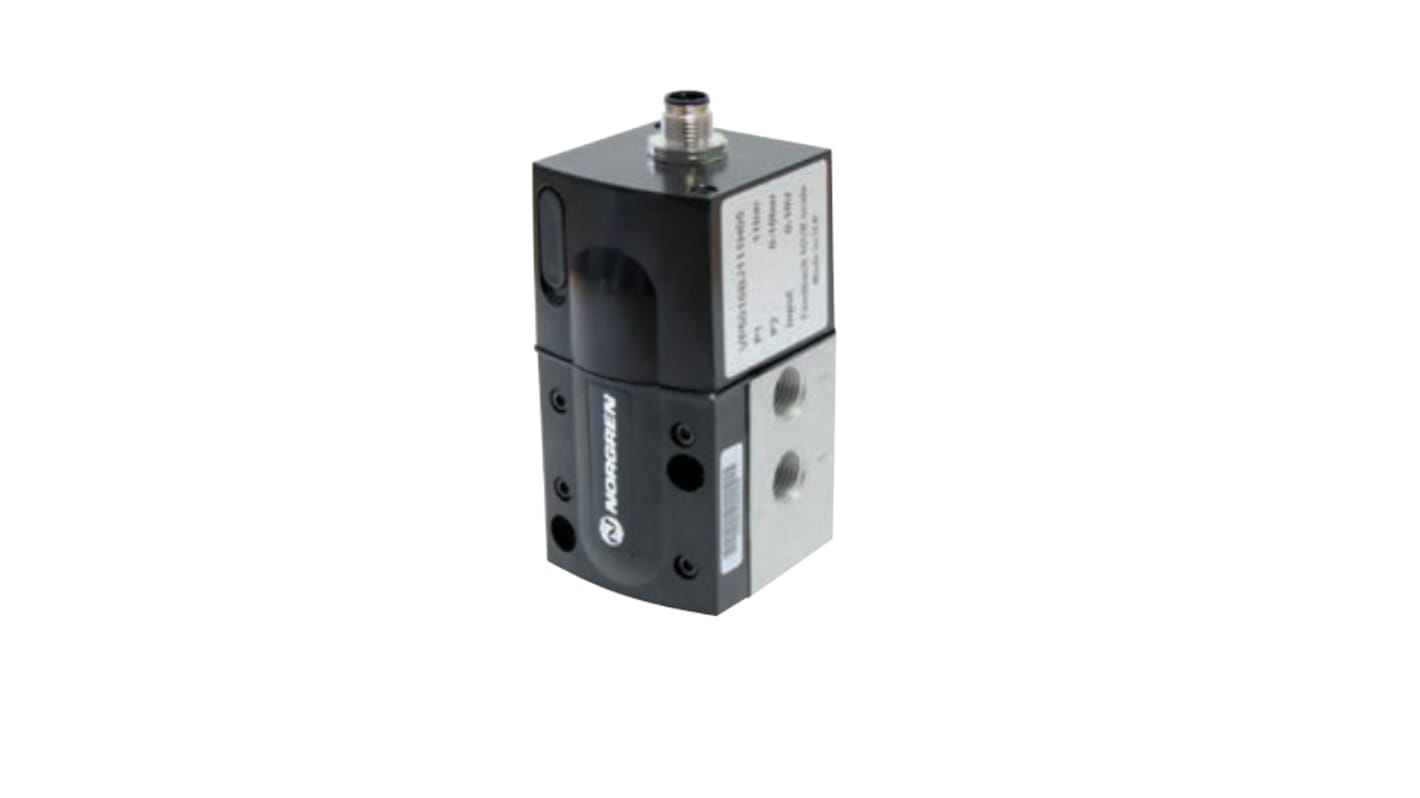

Proportional Valve, Pressure Control Valve VP2316BE461MB200

Data sheet :

feature

• All digital electronic control system
• Variable pressure control External pressure can be controlled when needed.
• Serial connection to the VP-Tool program
• Operation via field bus

Technical details

• Fluid: Compressed air
• Working pressure: 7 ... 17 bar
• Operating temperature: -5 ... 50 degrees Celsius
• Fluid temperature: -5 ... 50 degrees Celsius
• Protection level: IP65
• Connector type: M12 x 1.8 pin
