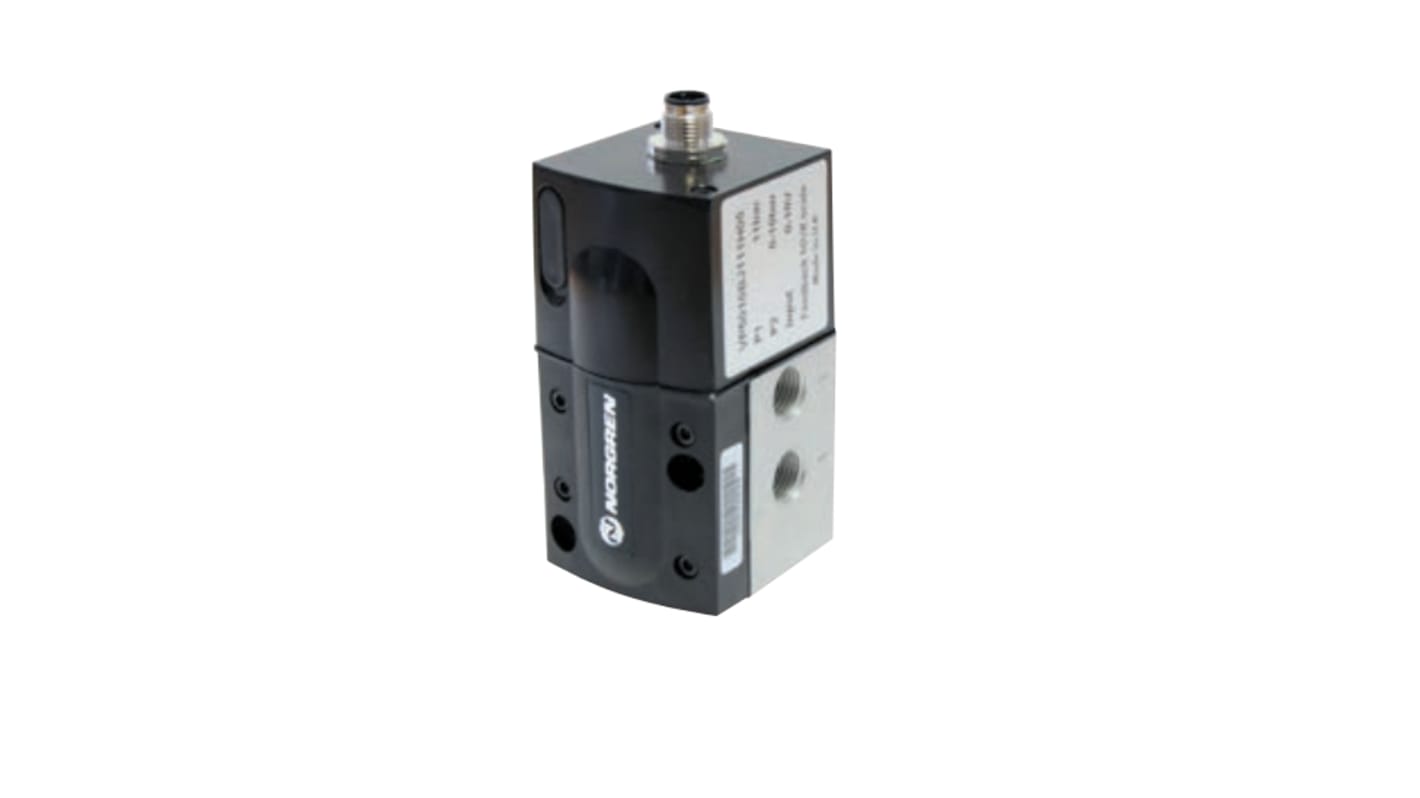

Proportional Valve, Pressure Control Valve VP2310BE461MB200

Data sheet :

feature

• All digitally controlled electronics
• Variable pressure control External pressure control available upon request
• Optional: Serial connection to the VP-Tool program.
• Optional operation via fieldbus
• The valve complies with CE.
• Free from lacquer substances that affect

Technical details

• Fluid: Compressed air
• Working pressure: 7 ... 17 bar
• Operating temperature: -5 ... 50 degrees Celsius
• Fluid temperature: -5 ... 50 degrees Celsius
• Protection level: IP65
• Output pressure: 0 ... 10 bar
