| b | 56 mm |
| c | 44.9 mm |
| d | 150 mm |
| g | 10 mm |
| s | 18 mm |
| h | 25 mm |
| t | 6 mm |
| r | 10 mm |
Featurde
| Digital/Analog | Digital |
| Inch-Metric | Metric |
| Range | 0 - 750 mm |
| Inside measuring from | 20.1 mm |
| Max. Permissible Error E MPE | ±0,06 mm |
| Max. Permissible Error S MPE | ±0,06 mm |
| Mass | 1410 g |
| Digital step | 0,01 mm |
| Max. response speed | Unlimited |
| Display | LCD, character height 9 mm (200 mm) 11 mm (300 mm) 10 mm (>300 mm) |
| Delivered | In a case, including 1 SR-44 battery |
| OFFSET | 10 mm (IP67 type only) |
| Battery life | Approx. 5 years, 3,5 years (>300 mm) |
| ORIGIN (ABS-Zero) | Yes |
| ON/OFF | Yes |
| Low voltage alarm | Yes |
| Data output | Yes |
Description

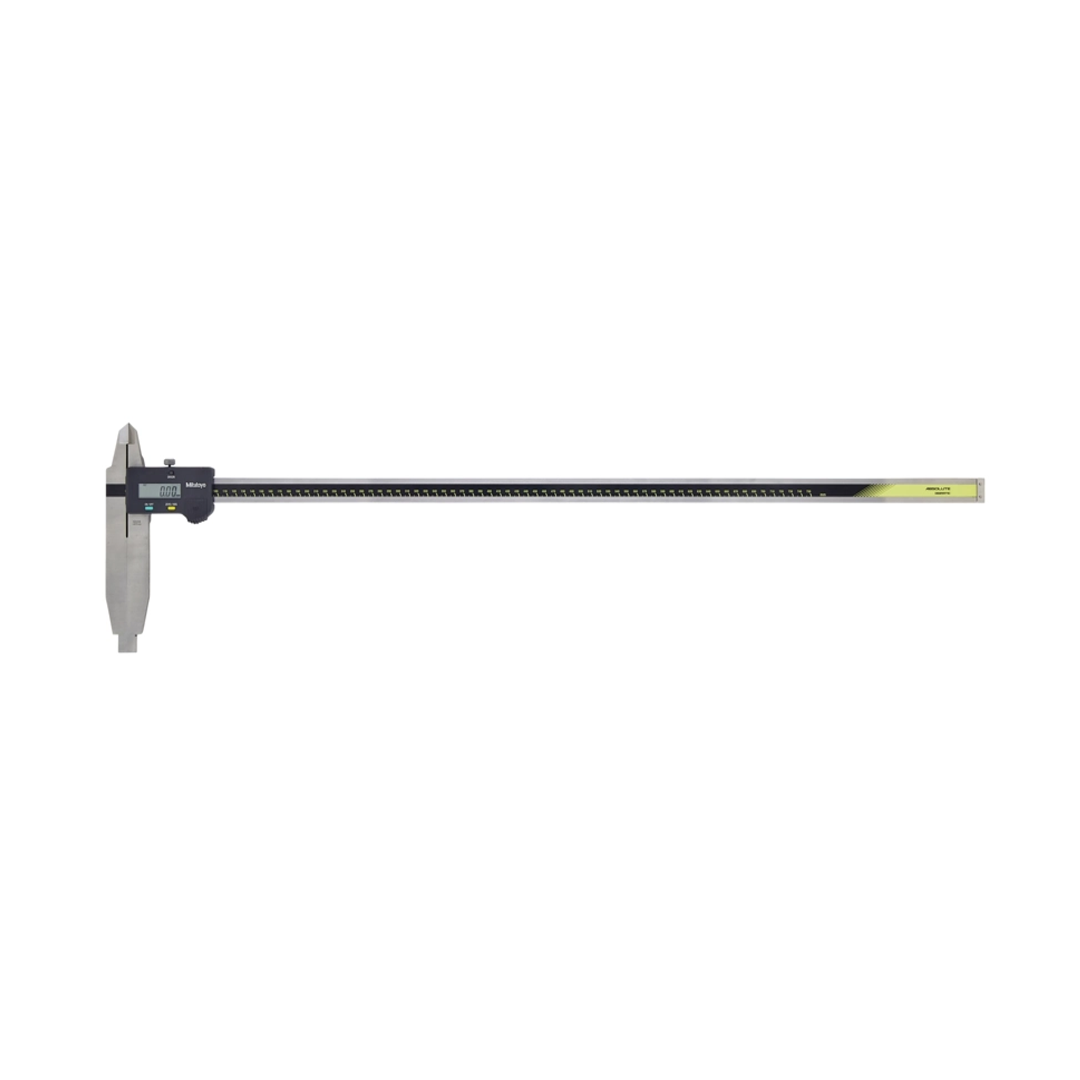

- This is a Digimatic caliper with nib-style and standard jaws. It offers you the following benefits:
- Knife-shaped measuring surfaces allow you to take outside measurements.
- Rounded measuring surfaces enable you to measure inside dimensions.
- ABSOLUTE System delivers reliable measurements.
