| L | 233 mm |
| A | 16.5 mm |
| B | 21 mm |
| C | 14.6 mm |
| D | 40 mm |
| H | 16 mm |
Featurde
| Range | 0 - 150 mm |
| Depth bar | Ø 1.9 mm |
| Thumb roller | Yes |
| Data output | Yes |
| Max. Permissible Error E MPE | ±0,02 mm |
| Max. Permissible Error S MPE | ±0,04 mm |
| Digital step | 0,01 mm |
| Max. response speed | Unlimited |
| Display | LCD, character height 9 mm (150, 200 mm) 11 mm (300 mm) |
| Delivered | In a case, including 1 SR-44 battery |
| ORIGIN (ABS-Zero) | Yes |
| Auto Power OFF after 20 min. non use | Yes |
| Low voltage alarm | Yes |
| Battery life | Approx. 5 years under normal use |
| Mass | 168 g |
Description

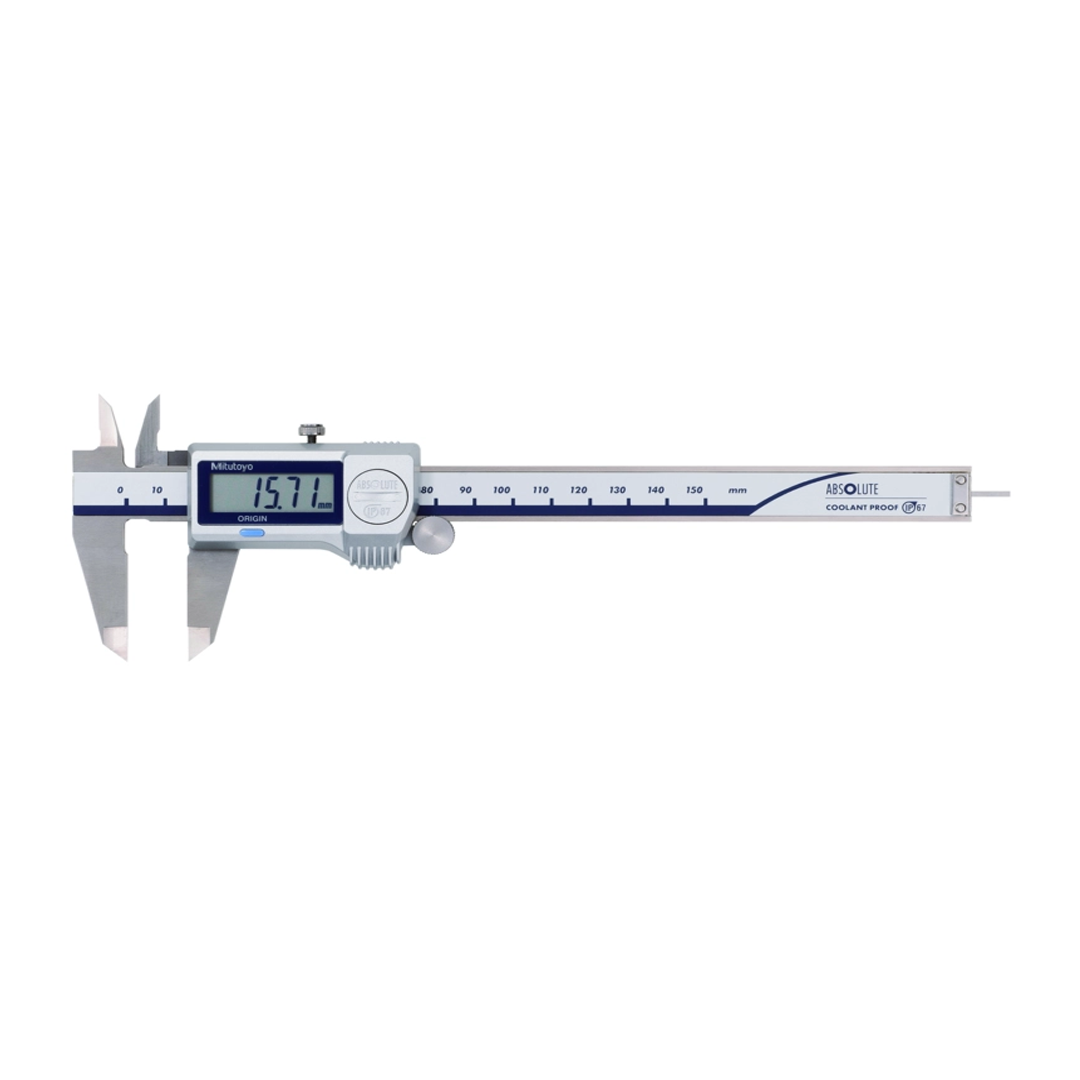

- This IP67 ABSOLUTE digimatic caliper allows reliable measurements in a wide range of situations and offers you the following benefits:
- Excellent resistance against water and dust (IP67 protection level) enabling use in machining situations that include splashing coolant fluid
- It is dustproof, complies with EN60529 and withstands temporary complete immersion in water without suffering any damage.
- ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
