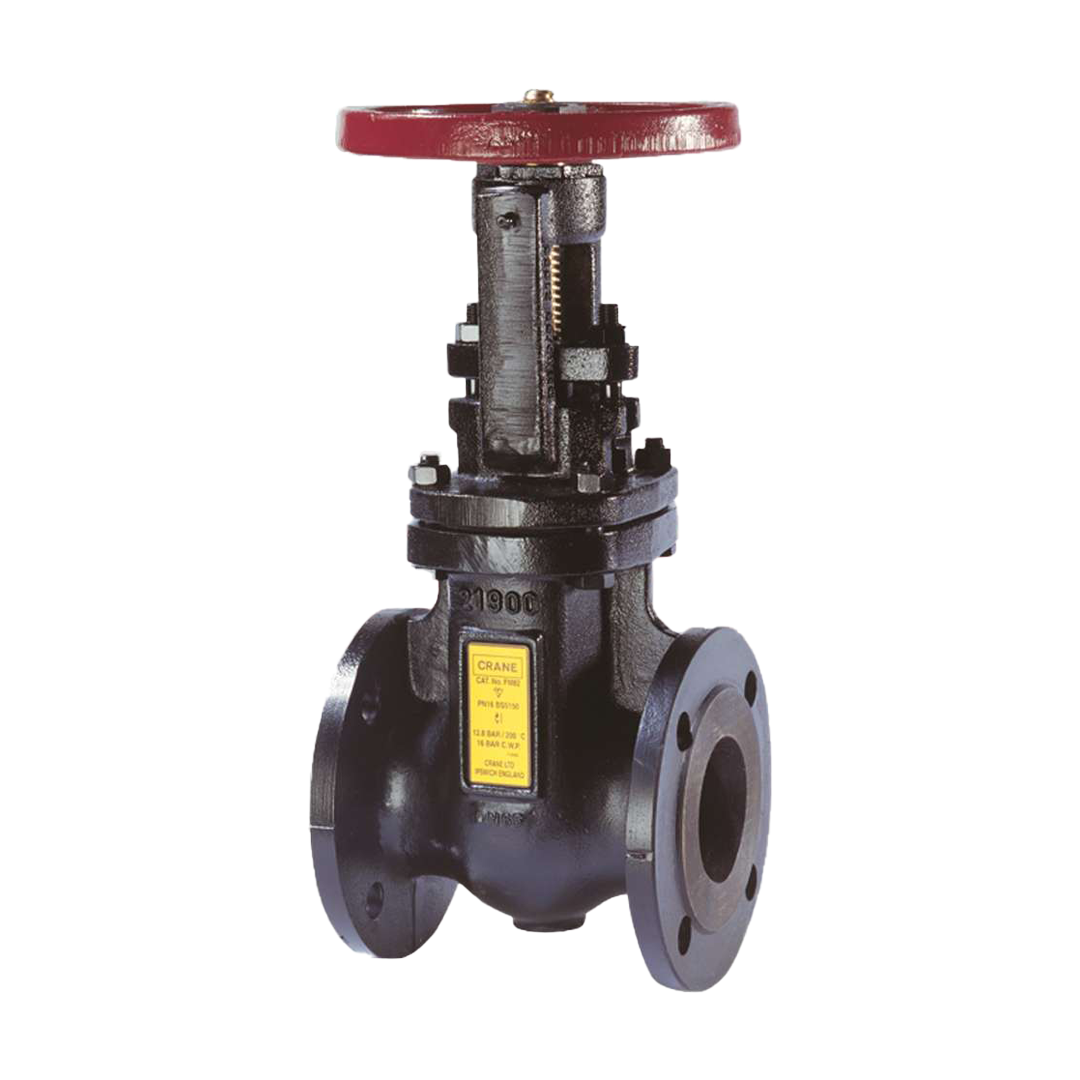

Gate Valve Crane 10" Cast Iron, OS&Y Rising Stem, Model FM82 Class PN16 (232 Psi)

Gate Valve Crane 10" Cast Iron, OS&Y Rising Stem, Model FM82 Class PN16 (232 Psi)

66,852.45 ฿
66,852.45 ฿
Sale Sold out

Crane

รายละเอียด Gate Valve Crane 10" Cast Iron, OS&Y Rising Stem, Model FM82 Class PN16 (232 Psi)

It is a valve used to control the flow of liquid in a pipe system. Made from cast iron which is a strong, durable and corrosion resistant material. OS&Y stands for outside screw and yoke, which means that the stem of the valve screws into the fixture from the outside. This type of valve is also called a raised stem gate valve because the stem lifts up when Open the valve For applications where it is necessary to completely shut off the flow of liquid. Not suitable for applications where flow control is required. Because they can be difficult to precisely control, OS&Y Rising Stems are commonly used in water, wastewater, and irrigation applications. They can also be used in other industrial applications, such as chemical processing and power generation.

Important information because

  • Gate Valve Crane, very high quality for use.
  • Each valve is hydrostatically tested in accordance with BS EN 12266-1:2003.
  • Manufactured according to BS EN 1171:2002 standards.
  • The raised stem provides visibility into the open valve position.

Features

  • Strong and durable
  • Corrosion resistant
  • Easy to use
  • It is inexpensive.

Usage and advantages

  • In water systems: Gate valves may be used to shut off the flow of water to a building or specific area. or to drain water from the drain pipe
  • In wastewater systems: Gate valves may be used to shut off the flow of wastewater to a wastewater treatment plant. or to drain waste water from the system
  • In industrial applications: Gate valves may be used to shut off the flow of hazardous or corrosive liquids. or to drain fluid from the system
View full details
Gate Valve Crane 10 นิ้ว Cast Iron, OS&Y Rising Stem, Model FM82 Class PN16 (232 Psi)

Materials

No. Part Material
1 Body Cast Iron BS EN 1561 GJL-250
2 Bonnet/Yoke Cast Iron BS EN 1561 GJL-250
2 Bonnet Cast Iron BS EN 1561 GJL-250
3 Disc Cast Iron BS EN 1561 GJL-250
4 Stem Stainless Steel 410 S21
5 Body Seat Ring Bronze BS EN 1982 CC491K
6 Disc Seat Ring Bronze BS EN 1982 CC491K
7 Yoke Sleeve Bronze BS EN 1982 CC491K
8 Yoke Sleeve Retg Nut Ductile Iron ASTM A536 65-45-12
9 Yoke Sleeve Nut Malleable Iron BS EN 1562 GJMB 300-6
10 Gland Flange Malleable Iron BS EN 1562 GJMB 300-6
11 Gland (2"-4") Brass BS EN 12164 CW721R
11 Gland (5"-12") Malleable Iron BS EN 1562 GJMB-300-6
13 Packing Graphite
14 Bonnet Gasket Graphite wrapped with SS304
16 Handwheel Malleable Iron BS EN 1562 GJMB-300-6
18 Body Plate Aluminium
20 Yoke Cast Iron BS EN 1561 GJL-250

Dimensions & Weights

SIZE(mm) WEIGHT(Kg) A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm) H(mm)
50 22.5 178 20 165 334 399 19 203 102
65 26.4 190 20 185 354 432 19 203 122
80 31 203 22 200 375 469 19 203 135
100 44.3 229 24 220 449 566 22 229 155
125 72.3 254 26 254 575 714 28.5 305 185
150 88.1 267 26 279 649 813 28.5 305 212
200 140 292 30 340 800 1013 34.9 356 248
250 225 330 32 405 984 1257 39.7 406 320
300 314 356 32 460 1127 1454 39.7 457 378
