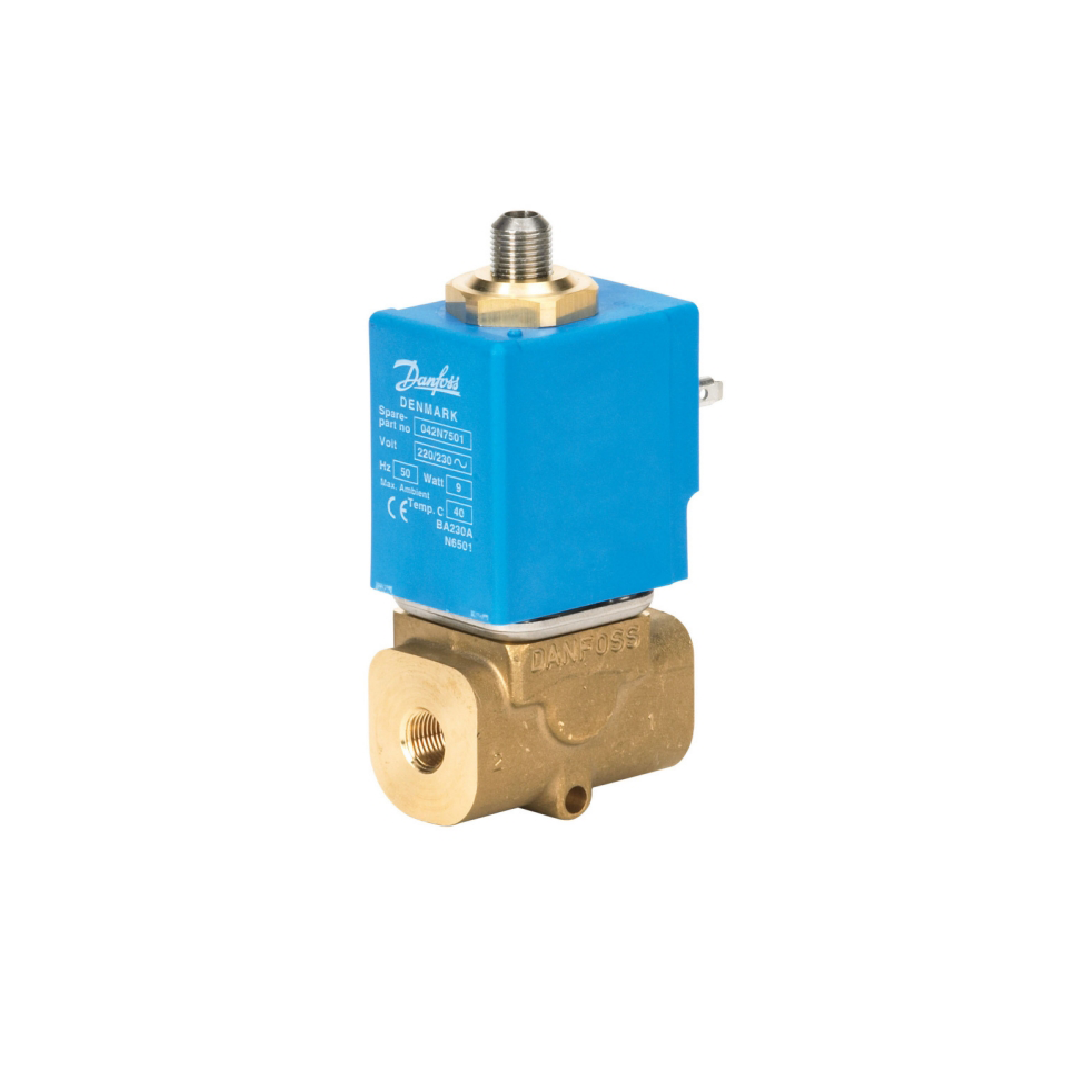

Danfoss Solenoid valve, EV310B, Function: NO, G, 1/4, 0.15 m³/h, FKM 032U4944

Danfoss Solenoid valve, EV310B, Function: NO, G, 1/4, 0.15 m³/h, FKM 032U4944

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 21,330.00 ฿
Regular price Sale price 21,330.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV310B, Function: NO, G, 1/4, 0.15 m³/h, FKM 032U4944

โซลินอยด์วาล์วDanfossรหัส032U4944ตระกูลEV310Bอุปกรณ์ตัดต่อการไหลพรีเมียมสถานะNOหรือNormallyOpenโดยวาล์วจะเปิดค้างไว้และปิดสนิทเมื่อได้รับไฟมาพร้อมเกลียวเชื่อมต่อมาตรฐานGขนาด1/4นิ้วประสิทธิภาพการไหล0.15m³/hใช้ซีลประเภทFKMซึ่งสามารถทนทานต่อน้ำมันอุณหภูมิสูงและสารเคมีกัดกร่อนได้อย่างดีเยี่ยมDanfossคือสัญลักษณ์แห่งความไว้วางใจในวิศวกรรมโลกวาล์วตัวนี้สร้างขึ้นเพื่อทนแรงดันสูงช่วยเพิ่มความปลอดภัยให้ระบบท่อป้องกันความเสียหายจากแรงกระแทกของน้ำและปรับปรุงประสิทธิภาพการทำงานให้สมบูรณ์ตอบสนองโจทย์วิศวกรผู้เชี่ยวชาญ

คุณสมบัติ

  • ซีรีส์อุปกรณ์: EV310B
  • สถานะการทำงาน: NO (Normally Open)
  • รูปแบบการเชื่อมต่อ: เกลียว G ขนาด 1/4 นิ้ว
  • อัตราการไหล: 0.15 m³/h
  • วัสดุซีล: FKM

ข้อมูลจำเพาะ

  • ซีรีส์โมเดล: EV310B
  • รูปแบบการทำงาน: NO (ปกติเปิด)
  • ประเภทและขนาดจุดเชื่อมต่อ: เกลียว G ขนาด 1/4 นิ้ว
  • อัตราการไหลของของเหลว: 0.15 m³/h
  • ชนิดวัสดุซีล: FKM
Gross weight 0.32 Kilogram
Net weight 0.294 Kilogram
Volume 0.283 Liter
EAN 5702423179923
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 40 °C
Ambient temperature max. [°F] 104 °F
Application Open
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 0.17 gal/min
Differential pressure [bar] [max] 16 bar
Differential pressure [bar] [min] 0 bar
Differential pressure [psi] [max] 232 psi
Differential pressure [psi] [min] 0 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 20 ms
Est. time to open, water [ms] 20 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Fluid Group 1
Function NO
In scope of WEEE Yes
Kv value [m³/h] 0.15 m³/h
Max. test pressure [bar] 24 bar
Max. test pressure [psig] 348 psig
Max. Working Pressure [bar] 16 bar
Max. Working Pressure [psig] 232 psig
Media recommendations Oil,Comp.Air,Vacuum
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 3/2
Operation Direct-operated
Orifice size [mm] 2 mm
Orifice size fraction [in] 5/64 in
Packing format Multi pack
Parts Program name EV310B
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 16 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. b14e413f-777d-43a3-8d82-8968a252e86b
SCIP dossier product name EV310B - solenoid valve
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV310B 2B G 14F NO040
Type EV310B
Type designation EV310B 2
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • รหัสสินค้า: 032U4944
  • ซีรีส์วาล์ว: EV310B
  • ระบบการทำงาน: NO
  • ประเภทการเชื่อมต่อ: G 1/4
  • อัตราการไหลและวัสดุ: 0.15 m³/h, ซีล FKM
