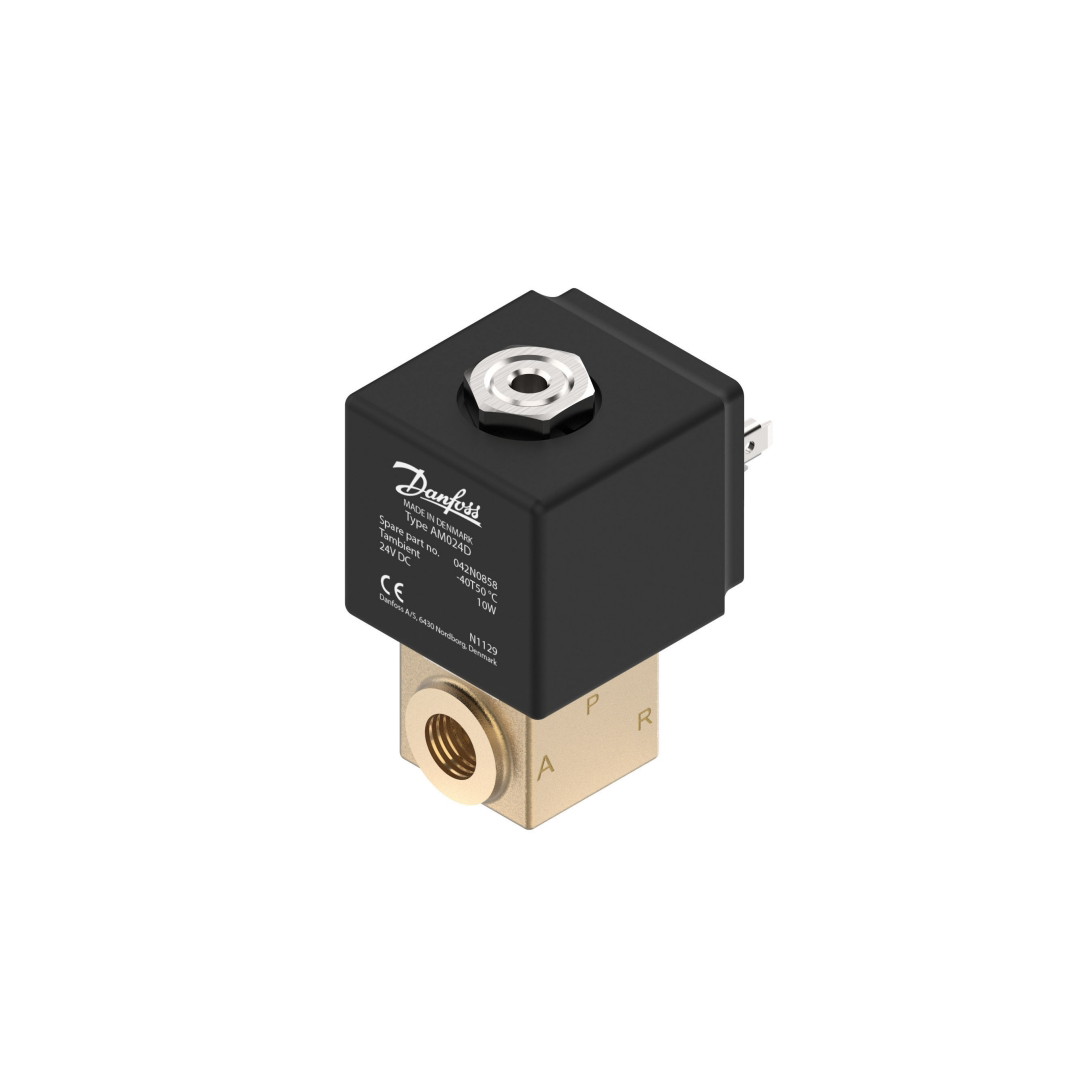

Danfoss Solenoid valve, EV310A, Function: NC, G, 1/4, 0.13 m³/h, FKM 032H8111

Danfoss Solenoid valve, EV310A, Function: NC, G, 1/4, 0.13 m³/h, FKM 032H8111

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 26,140.00 ฿
Regular price Sale price 26,140.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV310A, Function: NC, G, 1/4, 0.13 m³/h, FKM 032H8111

โซลินอยด์วาล์ว Danfoss รุ่น EV310A รหัส 032H8111 ถูกออกแบบมาเพื่อเครื่องจักรที่ต้องการวาล์ว 3 ทางคุณภาพสูง สถานะปกติปิด (NC) ช่วยตัดการทำงานของของเหลวหรือก๊าซเมื่อไฟฟ้าดับ ตัววาล์วเชื่อมต่อด้วยเกลียว G ขนาด 1/4 นิ้ว และจัดการปริมาณการไหลได้ 0.13 ลูกบาศก์เมตรต่อชั่วโมง ใช้วัสดุซีล FKM ช่วยยืดอายุการใช้งานเมื่อต้องสัมผัสกับน้ำมันและของเหลวที่มีความร้อน แบรนด์เดนฟอสไม่เพียงแต่มอบความแม่นยำในการสั่งการ แต่ยังออกแบบให้ทนทานต่อแรงกระแทกจากของไหล ส่งเสริมเสถียรภาพการทำงานในโรงงานได้อย่างยอดเยี่ยมและยาวนาน

คุณสมบัติ

  • รุ่น EV310A สถานะการทำงานแบบ NC ระงับการไหลเวียนเพื่อรอสัญญาณสั่งเปิด
  • เกลียวเชื่อมต่อท่อขนาด G 1/4 นิ้ว มีความหนาและต้านทานแรงดันกระแทกได้ดี
  • อัตราความจุที่ 0.13 ลูกบาศก์เมตรต่อชั่วโมง ดำเนินการไหลแบบราบรื่นไม่สะดุด
  • ส่วนผสมของซีล FKM ยกระดับความต้านทานต่อน้ำมันปิโตรเลียมและอากาศร้อน
  • การประกอบตัววาล์วทำได้รวดเร็ว ช่วยประหยัดเวลาซ่อมบำรุงในโรงงาน

ข้อมูลจำเพาะ

  • รหัสสินค้า 032H8111 รุ่น EV310A ขนาดเกลียว G 1/4 นิ้ว อัตราการไหล 0.13 ลูกบาศก์เมตรต่อชั่วโมง ซีล FKM แบบ NC
  • โซลินอยด์วาล์ว 3 ทาง อัตราการไหลสูงขึ้น สำหรับควบคุมอุปกรณ์ขับเคลื่อนลม
  • ซีล FKM ทนความร้อนและสารเคมีอุตสาหกรรม ยืดอายุการใช้งาน
  • ตัวเรือนทนแรงดันใช้งานในระบบลมอัดได้อย่างมั่นใจ
  • บำรุงรักษาง่าย ชิ้นส่วนภายในได้มาตรฐานสากล
Gross weight 0.12 Kilogram
Net weight 0.12 Kilogram
Volume 0.113 Liter
EAN 5702423050345
Actuator A
Actuator size 9 mm
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Closed and Drain
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 0.26 gal/min
Differential pressure [bar] [max] 14 bar
Differential pressure [bar] [min] 0 bar
Differential pressure [psi] [max] 203 psi
Differential pressure [psi] [min] 0 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 10 ms
Est. time to open, water [ms] 10 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Engraved 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 0.22 m³/h
Max media viscosity [cSt] 20 cSt
Max. test pressure [bar] 21 bar
Max. test pressure [psig] 304.5 psig
Max. Working Pressure [bar] 14 bar
Max. Working Pressure [psig] 203 psig
Media recommendations Oil,Comp.Air,Vacuum
Media tolerance comments Neutral media
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 2/2
Operation Direct-operated
Orifice size [mm] 3 mm
Orifice size fraction [in] 1/8 in
Packing format Multi pack
Parts Program name EV210A
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 16 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. 6bc3fec0-8115-484f-a3e7-a47e8f714a69
SCIP dossier product name EV210A B - solenoid valve
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV210A 3B G 14F NC000
Type EV210A
Type designation EV210A 3
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์ผลิตภัณฑ์: EV310A
  • ฟังก์ชันการทำงาน: ปกติปิด (Normally Closed)
  • ขนาดจุดเชื่อมต่อ: เกลียว G ขนาด 1/4 นิ้ว
  • อัตราการไหลสูงสุด (Kv): 0.13 m³/h
  • วัสดุซีลวาล์ว: FKM
