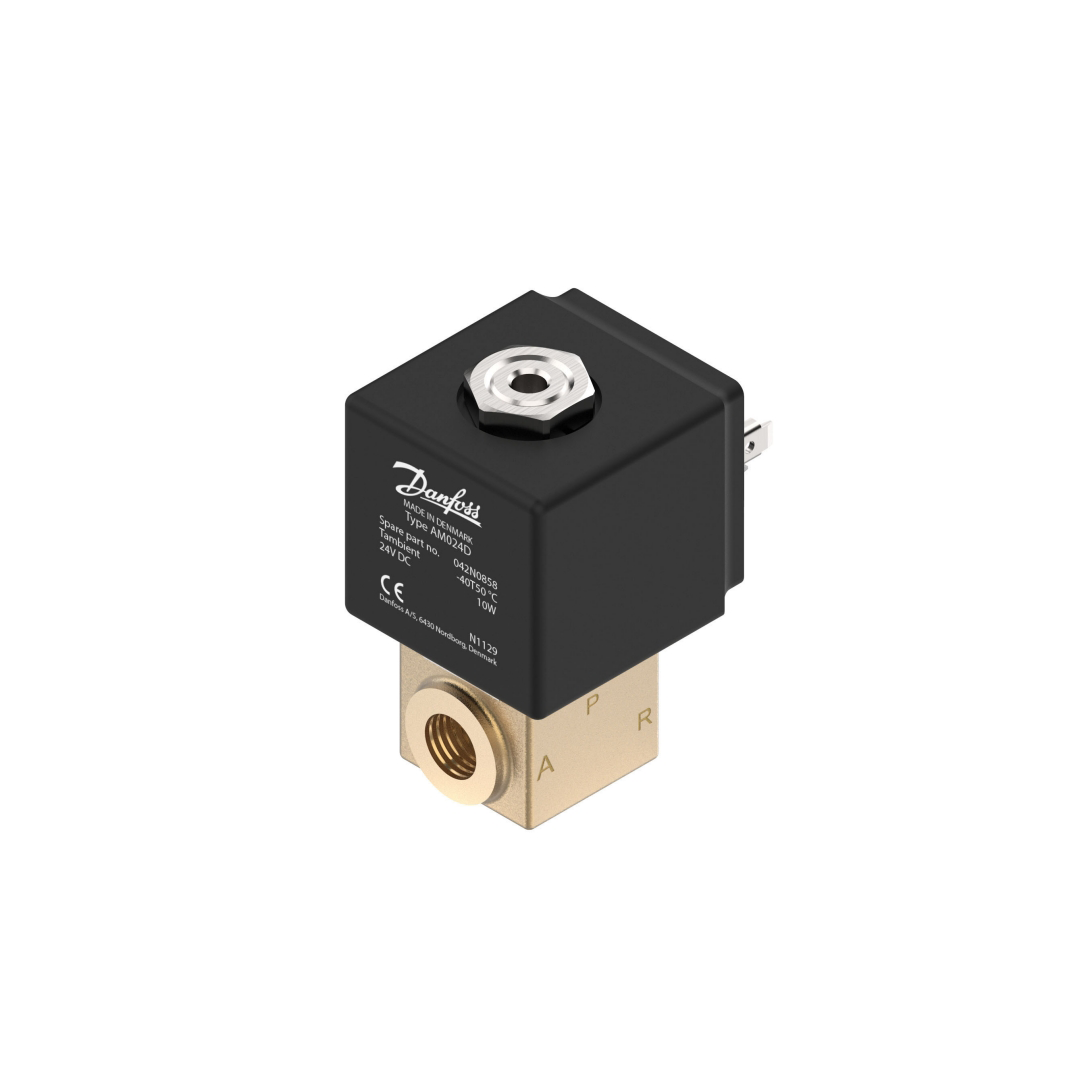

Danfoss Solenoid valve, EV310A, Function: NC, G, 1/4, 0.08 m³/h, FKM 032H8099

Danfoss Solenoid valve, EV310A, Function: NC, G, 1/4, 0.08 m³/h, FKM 032H8099

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 15,130.00 ฿
Regular price Sale price 15,130.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV310A, Function: NC, G, 1/4, 0.08 m³/h, FKM 032H8099

วาล์วแม่เหล็กไฟฟ้า 3 ทาง Danfoss ซีรีส์ EV310A รหัส 032H8099 มอบโซลูชันสำหรับการสลับทิศทางในระบบลมและน้ำมัน กลไกสถานะปกติปิด (NC) มั่นใจได้ว่าไม่มีของไหลรั่วไหลหากปราศจากไฟสั่งการ เชื่อมต่อได้อย่างมั่นคงด้วยเกลียว G 1/4 นิ้ว รองรับอัตราการระบายที่ 0.08 ลูกบาศก์เมตรต่อชั่วโมง เสริมประสิทธิภาพขั้นสุดด้วยซีล FKM ที่ขึ้นชื่อด้านการทนความร้อนและต้านทานสารเคมี การออกแบบคอยล์ของเดนฟอสสามารถระบายความร้อนได้ดีเยี่ยม ช่วยให้ระบบสั่งงานสามารถทำงานได้อย่างต่อเนื่องตลอดทั้งวันโดยไม่สูญเสียความแม่นยำ

คุณสมบัติ

  • ชุดควบคุม EV310A ระบบ ปกติปิด ตัดขาดทางเดินของเหลวเมื่อระบบไฟไม่พร้อมทำงาน
  • ข้อต่อเกลียว G 1/4 นิ้ว มาตรฐานยุโรป เข้ากันได้กับอุปกรณ์ฟิตติ้งทุกแบรนด์
  • ความเร็วการไหลผ่าน 0.08 m³/h เพียงพอต่อการส่งผ่านของเหลวในกระบวนการประกอบ
  • ยางซีลวัสดุ FKM โดดเด่นด้านการรักษาสภาพความยืดหยุ่นในสภาวะที่ท้าทาย
  • โครงสร้างด้านนอกทนทานต่อรอยขีดข่วนและการกัดกร่อนจากสภาพแวดล้อมภายนอก

ข้อมูลจำเพาะ

  • รหัสสินค้า 032H8099 รุ่น EV310A ขนาดเกลียว G 1/4 นิ้ว อัตราการไหล 0.08 ลูกบาศก์เมตรต่อชั่วโมง ซีล FKM แบบ NC
  • วาล์ว 3 ทาง ควบคุมทิศทางลมและก๊าซในระบบอัตโนมัติ
  • ซีล FKM ป้องกันการรั่วซึม ทนต่อน้ำมันหล่อลื่นในระบบลมอัด
  • โครงสร้างแข็งแรง ทนทานต่อสภาพแวดล้อมการทำงานรอบสูง
  • ติดตั้งง่าย รองรับการต่อพ่วงกับกล่องควบคุมไฟฟ้าหลากหลายรูปแบบ
Gross weight 0.126 Kilogram
Net weight 0.122 Kilogram
Volume 0.113 Liter
EAN 5702423050437
Actuator A
Actuator size 9 mm
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Closed and Drain
Approval PZH
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 0.26 gal/min
Differential pressure [bar] [max] 14 bar
Differential pressure [bar] [min] 0 bar
Differential pressure [psi] [max] 203 psi
Differential pressure [psi] [min] 0 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 10 ms
Est. time to open, water [ms] 10 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Engraved 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 0.22 m³/h
Max media viscosity [cSt] 20 cSt
Max. test pressure [bar] 21 bar
Max. test pressure [psig] 304.5 psig
Max. Working Pressure [bar] 14 bar
Max. Working Pressure [psig] 203 psig
Media recommendations Water & Brine
Media tolerance comments Neutral media
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Operation Direct-operated
Orifice size [mm] 3 mm
Orifice size fraction [in] 1/8 in
Packing format Multi pack
Parts Program name EV210A
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 16 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. 6bc3fec0-8115-484f-a3e7-a47e8f714a69
SCIP dossier product name EV210A B - solenoid valve
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV210A 3B G 14E NC000
Type EV210A
Type designation EV210A 3
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์ผลิตภัณฑ์: EV310A
  • ฟังก์ชันการทำงาน: ปกติปิด (Normally Closed)
  • ขนาดจุดเชื่อมต่อ: เกลียว G ขนาด 1/4 นิ้ว
  • อัตราการไหลสูงสุด (Kv): 0.08 m³/h
  • วัสดุซีลวาล์ว: FKM
