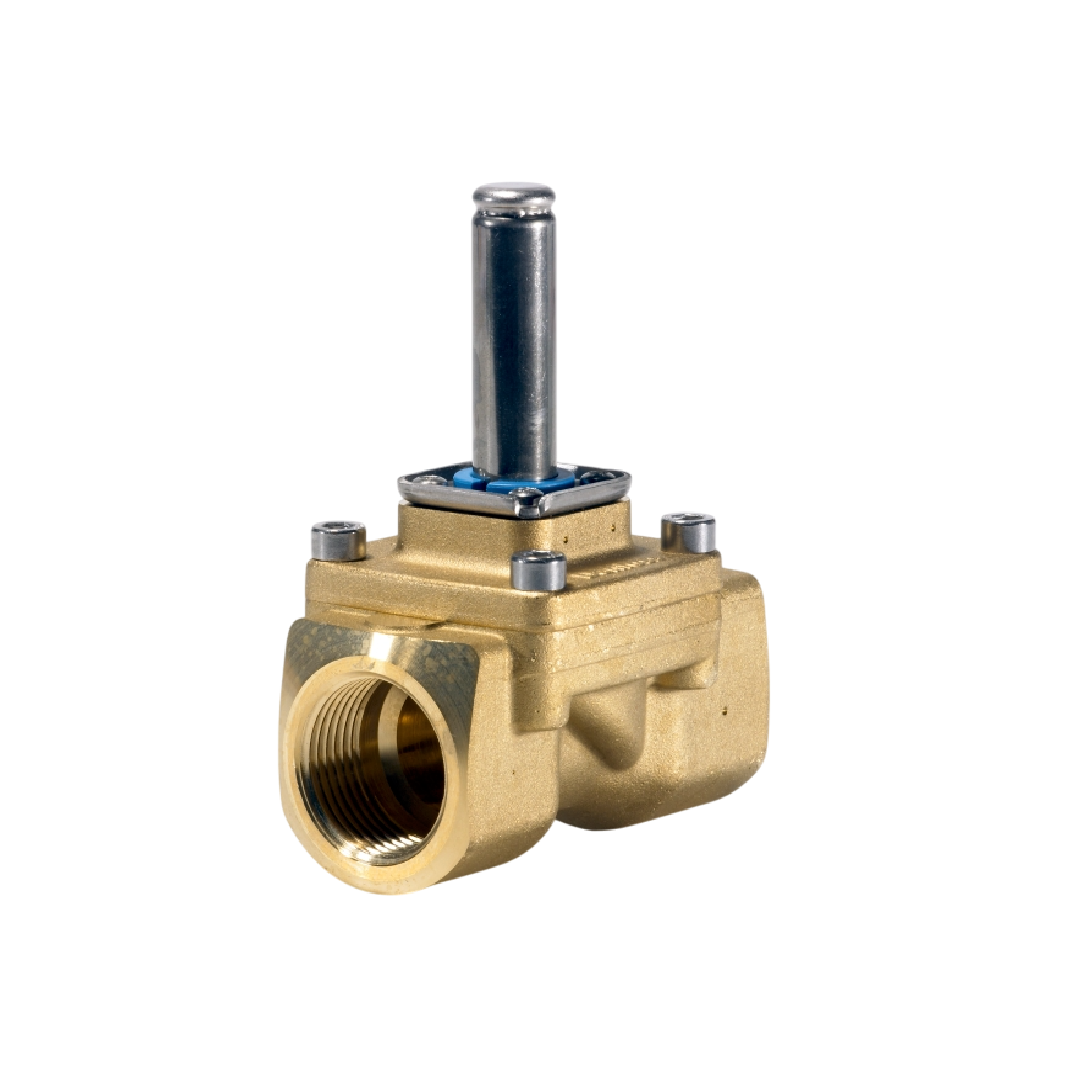

Danfoss Solenoid valve, EV250B, Function: NO, G, 3/4, 4.9 m³/h, FKM 032U5355

Danfoss Solenoid valve, EV250B, Function: NO, G, 3/4, 4.9 m³/h, FKM 032U5355

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 19,810.00 ฿
Regular price Sale price 19,810.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV250B, Function: NO, G, 3/4, 4.9 m³/h, FKM 032U5355

โซลินอยด์วาล์วDanfossอัจฉริยะรหัส032U5355รุ่นEV250Bออกแบบมาสำหรับการจัดการของไหลมาพร้อมเกลียวเชื่อมต่อมาตรฐานGขนาด3/4นิ้วให้อัตราไหลผ่าน4.9m³/hทำงานแบบNOหรือNormallyOpenหมายถึงวาล์วจะเปิดค้างไว้และปิดสนิทเมื่อได้รับไฟมาพร้อมซีลFKMที่มีคุณสมบัติทนทานต่อน้ำมันอุณหภูมิสูงและสารเคมีกัดกร่อนได้อย่างดีเยี่ยมผลิตภัณฑ์จากDanfossได้รับการยอมรับในสากลถึงความทนทานและนวัตกรรมล้ำสมัยการใช้วาล์วมาตรฐานจะช่วยลดความเสี่ยงระบบขัดข้องเพิ่มความราบรื่นในสายการผลิตและประหยัดพลังงานอย่างเป็นรูปธรรมมั่นใจในทุกสภาวะการทำงาน

คุณสมบัติ

  • ซีรีส์อุปกรณ์: EV250B
  • สถานะการทำงาน: NO (Normally Open)
  • รูปแบบการเชื่อมต่อ: เกลียว G ขนาด 3/4 นิ้ว
  • อัตราการไหล: 4.9 m³/h
  • วัสดุซีล: FKM

ข้อมูลจำเพาะ

  • ซีรีส์โมเดล: EV250B
  • รูปแบบการทำงาน: NO (ปกติเปิด)
  • ประเภทและขนาดจุดเชื่อมต่อ: เกลียว G ขนาด 3/4 นิ้ว
  • อัตราการไหลของของเหลว: 4.9 m³/h
  • ชนิดวัสดุซีล: FKM
Gross weight 0.862 Kilogram
Net weight 0.816 Kilogram
Volume 1.295 Liter
EAN 5702423214297
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 60 °C
Ambient temperature max. [°F] 140 °F
Application Closed and Drain
Approval EAC
UL
Body material DZR brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material DZR brass
Connection size [in] 3/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 5.7 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 0 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 100 ms
Est. time to open, water [ms] 150 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Fluid Group 1
Function NO
In scope of WEEE Yes
Kv value [m³/h] 4.9 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Oil,Comp.Air,Vacuum
Media tolerance comments Slightly aggressive media
Water at max. 60°C/140 °F
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] 0 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] 32 °F
Number of ways 2/2
Operation Assisted lift operated
Orifice size [mm] 18 mm
Orifice size fraction [in] 3/4 in
Packing format Multi pack
Parts Program name EV250B
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. d367528f-afd7-4ce7-98d3-93a4c38934b8
SCIP dossier product name EV250B NO - solenoid valve
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV250B 18BD G 34F NO000
Type EV250B
Type designation EV250B 18
UK RoHS compliance Out of scope
UL evaluated Yes

ข้อมูลทางเทคนิค

  • รหัสสินค้า: 032U5355
  • ซีรีส์วาล์ว: EV250B
  • ระบบการทำงาน: NO
  • ประเภทการเชื่อมต่อ: G 3/4
  • อัตราการไหลและวัสดุ: 4.9 m³/h, ซีล FKM
