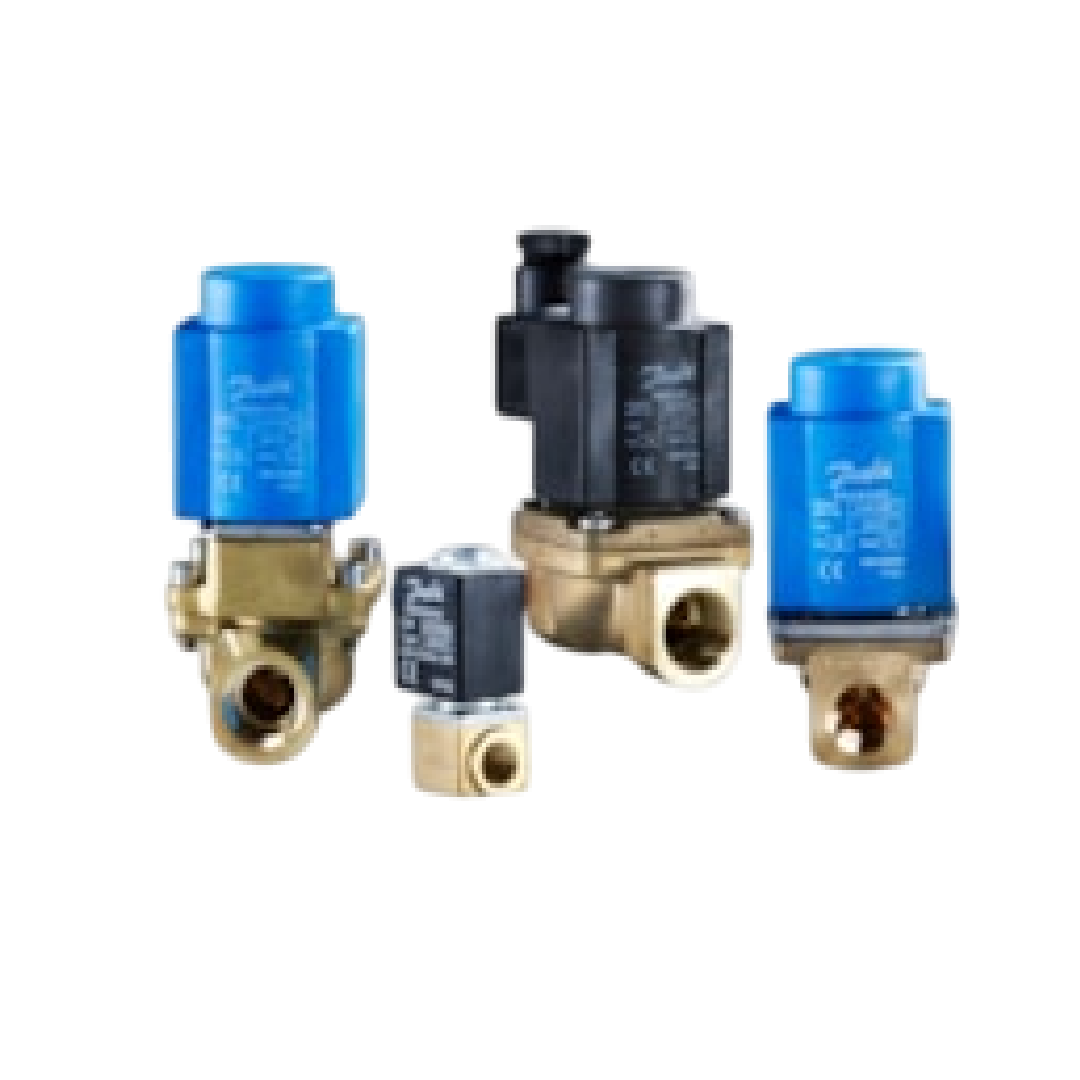

Danfoss Solenoid valve, EV250B, Function: NO, G, 1, 5.2 m³/h, EPDM 032U5356

Danfoss Solenoid valve, EV250B, Function: NO, G, 1, 5.2 m³/h, EPDM 032U5356

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 37,760.00 ฿
Regular price Sale price 37,760.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV250B, Function: NO, G, 1, 5.2 m³/h, EPDM 032U5356

โซลินอยด์วาล์วDanfossรหัส032U5356ซีรีส์EV250Bวาล์วควบคุมทิศทางประสิทธิภาพสูงทำงานแบบNO(NormallyOpen)กล่าวคือวาล์วจะเปิดค้างไว้และปิดสนิทเมื่อได้รับไฟมาพร้อมเกลียวเชื่อมต่อมาตรฐานGขนาด1นิ้วรองรับอัตราการไหล5.2m³/hโดดเด่นด้วยซีลEPDMซึ่งทนทานต่อน้ำร้อนไอน้ำและสารเคมีบางประเภทลดการเสื่อมสภาพDanfossเป็นแบรนด์ระดับโลกที่มุ่งเน้นวิศวกรรมความแม่นยำวาล์วรุ่นนี้จึงช่วยปกป้องระบบจากการรั่วซึมตอบสนองรวดเร็วและลดภาระการบำรุงรักษาเหมาะสำหรับงานที่ต้องการความเสถียรระดับสูงสุดลงทุนกับคุณภาพเพื่อผลลัพธ์ที่ยั่งยืน

คุณสมบัติ

  • ซีรีส์อุปกรณ์: EV250B
  • สถานะการทำงาน: NO (Normally Open)
  • รูปแบบการเชื่อมต่อ: เกลียว G ขนาด 1 นิ้ว
  • อัตราการไหล: 5.2 m³/h
  • วัสดุซีล: EPDM

ข้อมูลจำเพาะ

  • ซีรีส์โมเดล: EV250B
  • รูปแบบการทำงาน: NO (ปกติเปิด)
  • ประเภทและขนาดจุดเชื่อมต่อ: เกลียว G ขนาด 1 นิ้ว
  • อัตราการไหลของของเหลว: 5.2 m³/h
  • ชนิดวัสดุซีล: EPDM
Gross weight 1.07 Kilogram
Net weight 1.01 Kilogram
Volume 1.295 Liter
EAN 5702423214303
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 60 °C
Ambient temperature max. [°F] 140 °F
Application Closed and Drain
Approval PZH
SINTEF
Body material DZR brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material DZR brass
Connection size [in] 1
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 6 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 0 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 100 ms
Est. time to open, water [ms] 150 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Fluid Group 1
Function NO
In scope of WEEE Yes
Kv value [m³/h] 5.2 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Technical & Soft Water
Media tolerance comments -30–120 °C: 0–10 bar
120–140 °C: 0–4 bar
Slightly aggressive media
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Operation Assisted lift operated
Orifice size [mm] 22 mm
Orifice size fraction [in] 7/8 in
Packing format Multi pack
Parts Program name EV250B
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. d367528f-afd7-4ce7-98d3-93a4c38934b8
SCIP dossier product name EV250B NO - solenoid valve
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV250B 22BD G 1E NO000
Type EV250B
Type designation EV250B 22
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • รหัสสินค้า: 032U5356
  • ซีรีส์วาล์ว: EV250B
  • ระบบการทำงาน: NO
  • ประเภทการเชื่อมต่อ: G 1
  • อัตราการไหลและวัสดุ: 5.2 m³/h, ซีล EPDM
