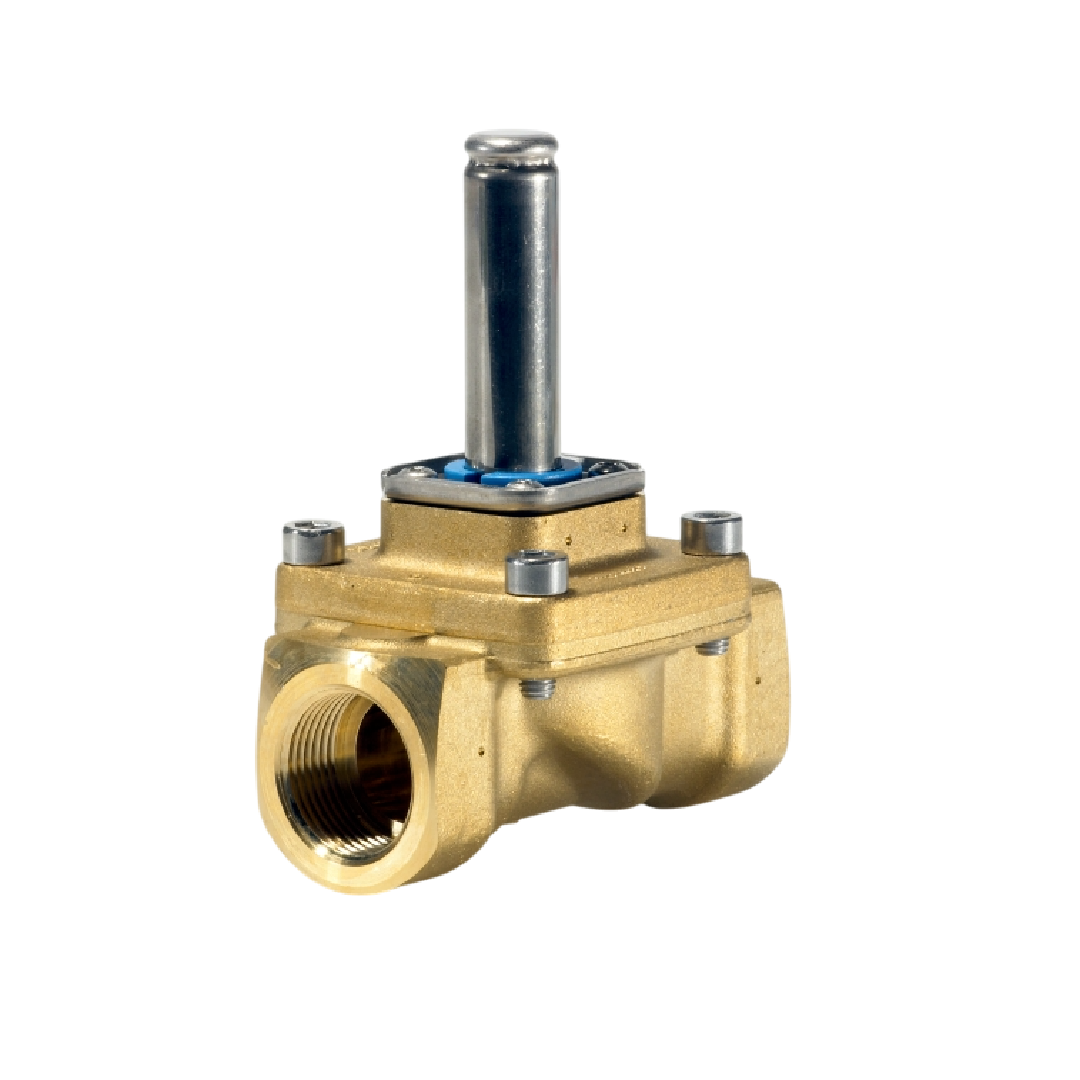

Danfoss Solenoid valve, EV250B, Function: NC, G, 3/4, 6 m³/h, FKM 032U5255
Danfoss Solenoid valve, EV250B, Function: NC, G, 3/4, 6 m³/h, FKM 032U5255
DANFOSS
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
18,530.00 ฿
Regular price
Sale price
18,530.00 ฿
Unit price
/
per
Couldn't load pickup availability
รายละเอียด Danfoss Solenoid valve, EV250B, Function: NC, G, 3/4, 6 m³/h, FKM 032U5255
โซลินอยด์วาล์วDanfossอัจฉริยะรหัส032U5255รุ่นEV250Bออกแบบมาสำหรับการจัดการของไหลมาพร้อมเกลียวเชื่อมต่อมาตรฐานGขนาด3/4นิ้วให้อัตราไหลผ่าน6m³/hทำงานแบบNCหรือNormallyClosedหมายถึงวาล์วจะปิดเมื่อไร้ไฟและเปิดเมื่อจ่ายกระแสไฟมาพร้อมซีลFKMที่มีคุณสมบัติทนทานต่อน้ำมันอุณหภูมิสูงและสารเคมีกัดกร่อนได้อย่างดีเยี่ยมผลิตภัณฑ์จากDanfossได้รับการยอมรับในสากลถึงความทนทานและนวัตกรรมล้ำสมัยการใช้วาล์วมาตรฐานจะช่วยลดความเสี่ยงระบบขัดข้องเพิ่มความราบรื่นในสายการผลิตและประหยัดพลังงานอย่างเป็นรูปธรรมมั่นใจในทุกสภาวะการทำงาน
View full details
คุณสมบัติ
คุณสมบัติ
- ซีรีส์อุปกรณ์: EV250B
- สถานะการทำงาน: NC (Normally Closed)
- รูปแบบการเชื่อมต่อ: เกลียว G ขนาด 3/4 นิ้ว
- อัตราการไหล: 6 m³/h
- วัสดุซีล: FKM
ข้อมูลจำเพาะ
ข้อมูลจำเพาะ
- ซีรีส์โมเดล: EV250B
- รูปแบบการทำงาน: NC (ปกติปิด)
- ประเภทและขนาดจุดเชื่อมต่อ: เกลียว G ขนาด 3/4 นิ้ว
- อัตราการไหลของของเหลว: 6 m³/h
- ชนิดวัสดุซีล: FKM
| Gross weight | 0.865 Kilogram |
| Net weight | 0.82 Kilogram |
| Volume | 1.295 Liter |
| EAN | 5702423179183 |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Application | Closed and Drain |
| Approval |
EAC UL |
| Body material | DZR brass |
| China RoHS compliance | Out of scope |
| Connection Internal/External | Internal |
| Connection material | DZR brass |
| Connection size [in] | 3/4 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Contain batteries | No |
| Cv value [gal/min] | 6.95 gal/min |
| Differential pressure [bar] [max] | 10 bar |
| Differential pressure [bar] [min] | 0 bar |
| Differential pressure [psi] [max] | 145 psi |
| Differential pressure [psi] [min] | 0 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Est. time to close, water [ms] | 100 ms |
| Est. time to open, water [ms] | 150 ms |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Fluid Group | 1 |
| Function | NC |
| In scope of WEEE | Yes |
| Kv value [m³/h] | 6 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 15 bar |
| Max. test pressure [psig] | 217.5 psig |
| Max. Working Pressure [bar] | 10 bar |
| Max. Working Pressure [psig] | 145 psig |
| Media recommendations | Oil,Comp.Air,Vacuum |
| Media tolerance comments |
Slightly aggressive media Water at max. 60°C/140 °F |
| Medium temperature range [°C] [max] | 100 °C |
| Medium temperature range [°C] [min] | 0 °C |
| Medium temperature range [°F] [max] | 212 °F |
| Medium temperature range [°F] [min] | 32 °F |
| Number of ways | 2/2 |
| Operation | Assisted lift operated |
| Orifice size [mm] | 18 mm |
| Orifice size fraction [in] | 3/4 in |
| Packing format | Multi pack |
| Parts Program name | EV250B |
| Product accessories | Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 23e5d8c0-c744-42b7-b414-f18776b38f4b |
| SCIP dossier product name | EV250B NC - solenoid valve |
| Seal Material | FKM |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV250B 18BD G 34F NC000 |
| Type | EV250B |
| Type designation | EV250B 18 |
| UK RoHS compliance | Out of scope |
| UL evaluated | Yes |
