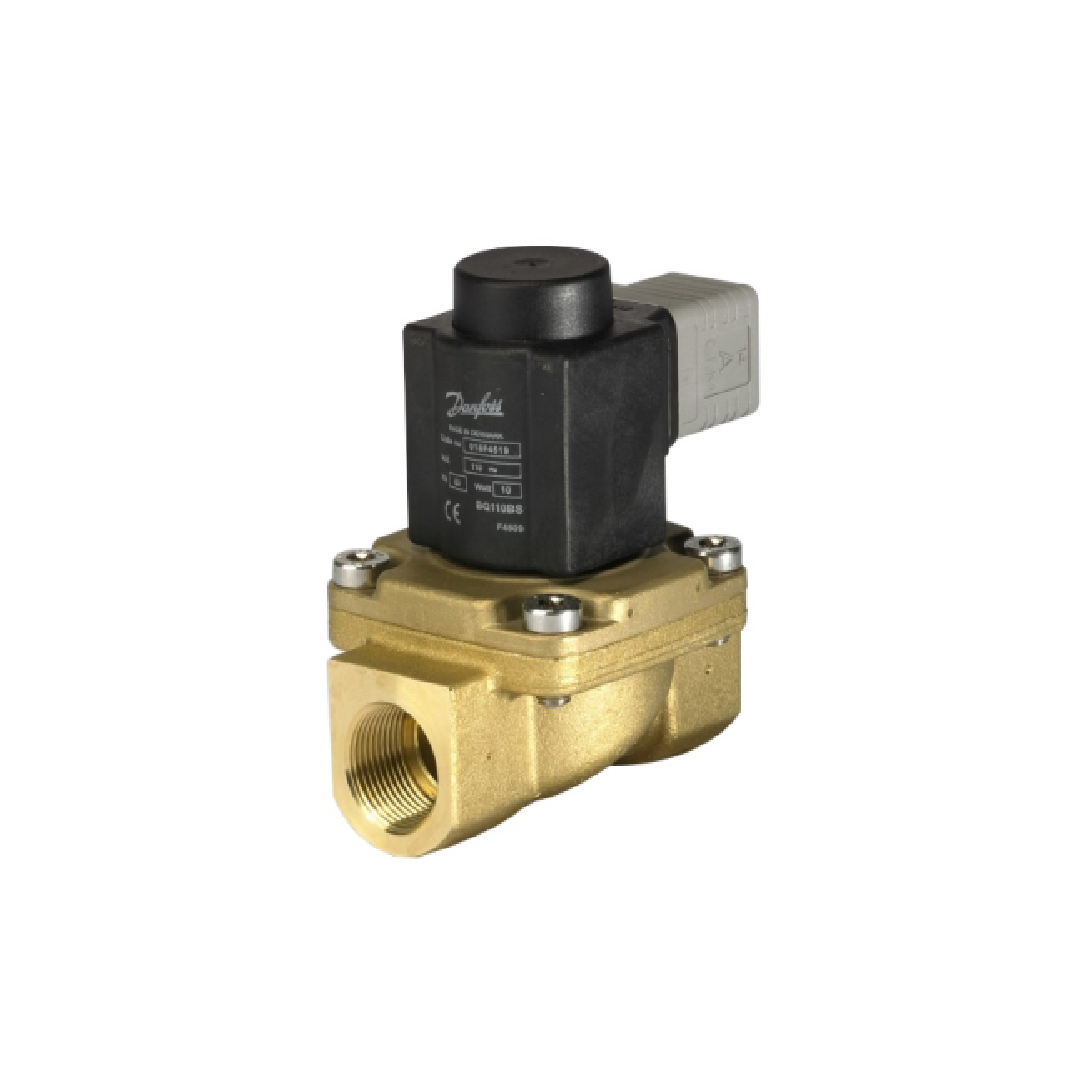

Danfoss Solenoid valve, EV225B, Function: NC, NPT, 1, 6 m³/h, PTFE 032U3694

Danfoss Solenoid valve, EV225B, Function: NC, NPT, 1, 6 m³/h, PTFE 032U3694

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 16,000.00 ฿
Regular price Sale price 16,000.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV225B, Function: NC, NPT, 1, 6 m³/h, PTFE 032U3694

Danfoss Solenoid valve, EV225B, Function: NC, NPT, 1, 6 m³/h, PTFE 032U3694 เพิ่มประสิทธิภาพให้ระบบอุตสาหกรรมด้วย โซลินอยด์วาล์ว Danfoss รุ่น EV225B รหัส 032U3694 ซึ่งเป็นวาล์วแบบเซอร์โวที่ออกแบบพิเศษสำหรับระบบไอน้ำโดยเฉพาะ วาล์วรุ่นนี้ใช้ฟังก์ชันปกติปิด (NC) ช่วยตัดการไหลทันทีเมื่อไม่มีไฟเลี้ยงเพื่อความปลอดภัย ติดตั้งเข้ากับระบบด้วยมาตรฐานเกลียว NPT 1 นิ้ว สามารถปล่อยผ่านอัตราการไหลได้ 6 ลูกบาศก์เมตรต่อชั่วโมง พร้อมใช้วัสดุซีล PTFE ที่มีความทนทานต่อไอน้ำอุณหภูมิสูงและสารเคมีที่กัดกร่อนได้อย่างดีเยี่ยม ช่วยยกระดับความปลอดภัยและมาตรฐานการควบคุมของเหลวตามแบบฉบับวิศวกรรมของ Danfoss

คุณสมบัติ

  • โซลินอยด์ Danfoss รหัส 032U3694 ซีรีส์ EV225B
  • การทำงานเริ่มต้นในสถานะ NC
  • ข้อต่อสำหรับติดตั้งขนาด 1 นิ้ว เกลียว NPT
  • ปริมาณการไหลผ่าน 6 m³/h
  • โครงสร้างซีลผลิตจาก PTFE

ข้อมูลจำเพาะ

  • แบรนด์และรุ่น: Danfoss Solenoid Valve รุ่น EV225B (รหัส 032U3694)
  • สถานะการทำงาน: ปกติปิด (NC)
  • ขนาดจุดเชื่อมต่อ: เกลียว NPT ขนาด 1 นิ้ว
  • ความสามารถในการไหล: อัตรา 6 m³/h
  • ชนิดของซีล: PTFE
Gross weight 1.466 Kilogram
Net weight 1.404 Kilogram
Volume 1.295 Liter
EAN 5702423231201
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 40 °C
Ambient temperature max. [°F] 104 °F
Approval C UL US LISTED
cURus recognized
Body material DZR brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material DZR brass
Connection size [in] 1
Connection standard ANSI/ASME B1.20.1
Connection type NPT
Contain batteries No
Cv value [gal/min] 6.95 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.7 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 10 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 20 ms
Est. time to open, water [ms] 20 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 6 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 25 bar
Max. test pressure [psig] 363 psig
Max. Working Pressure [bar] 24.1 bar
Max. Working Pressure [psig] 350 psig
Media recommendations Steam
Media tolerance comments Slightly aggressive media
Medium temperature range [°C] [max] 185 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 365 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 25 mm
Orifice size fraction [in] 1 in
Packing format Multi pack
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. 37eed611-ac6e-4afb-8c8d-2fa1dd1fb454
SCIP dossier product name EV225B - solenoid valve
Seal Material PTFE
Serviceable Solenoid valve spare parts
Specification key EV225B 25BD N 1T NC000
Type EV225B
Type designation EV225B 25
UK RoHS compliance Out of scope
UL evaluated Yes

ข้อมูลทางเทคนิค

  • แบรนด์และซีรีส์ผลิตภัณฑ์: Danfoss รุ่น EV225B (หมายเลขอ้างอิง 032U3694)
  • ฟังก์ชันการทำงาน: วาล์วประเภท NC (Normally Closed) หรือแบบปกติปิด
  • รูปแบบข้อต่อ: ชนิดเกลียวมาตรฐาน NPT ขนาด 1 นิ้ว
  • ประสิทธิภาพอัตราการไหล: รองรับปริมาตรการไหลที่ 6 m³/h
  • ชนิดวัสดุซีล: ซีลเทฟลอน PTFE สำหรับการป้องกันการรั่วซึม
