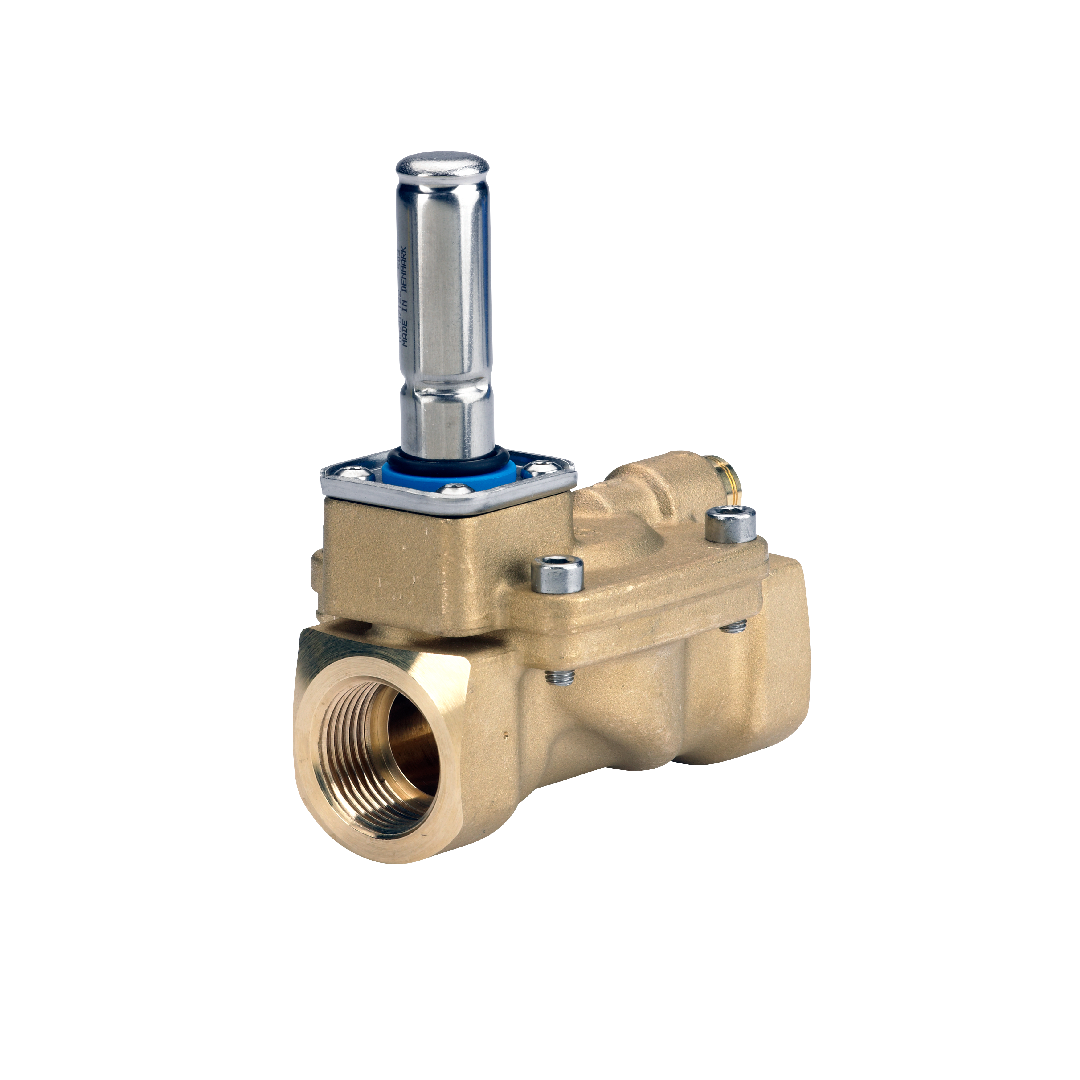

Danfoss Solenoid valve, EV220B, Function: NO, G, 3/4, 8 m³/h, FKM 032U7123

Danfoss Solenoid valve, EV220B, Function: NO, G, 3/4, 8 m³/h, FKM 032U7123

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 13,280.00 ฿
Regular price Sale price 13,280.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NO, G, 3/4, 8 m³/h, FKM 032U7123

วาล์วแม่เหล็กไฟฟ้า Danfoss รุ่น EV220B รหัสสินค้า 032U7123 นวัตกรรมด้านการควบคุมของไหลระดับโลกที่ออกแบบมาเพื่อความแม่นยำ มาพร้อมรูปแบบการทำงานปกติเปิด (Normally Open) ยอมให้ของไหลผ่านได้เมื่อไม่มีไฟ ช่วยประหยัดพลังงานในระบบที่เปิดเป็นหลัก สามารถบริหารจัดการอัตราการไหลได้ 8 m³/h ผ่านตัวเกลียวเชื่อมต่อมาตรฐาน G ขนาด 3/4 นิ้ว ที่ทนทานต่อแรงดันภายในท่อ ติดตั้งซีลยาง FKM ที่ออกแบบมาเป็นพิเศษเพื่อรองรับน้ำมันและทนอุณหภูมิสูงได้ดีเยี่ยม ด้วยระบบขับเคลื่อนแบบ Servo-operated จึงทำงานได้อย่างราบรื่นและลดภาระค่าใช้จ่ายในการบำรุงรักษา

คุณสมบัติ

  • ผลิตภัณฑ์ควบคุมการไหลรุ่น EV220B ตอบสนองการทำงานได้อย่างแม่นยำ
  • ระบบทำงานแบบปกติเปิด (NO) ยอมให้ของไหลผ่านได้อย่างต่อเนื่อง
  • รูปแบบเกลียว G ขนาด 3/4 นิ้ว รองรับการติดตั้งที่หลากหลาย
  • ประสิทธิภาพการระบายของไหล 8 ลูกบาศก์เมตรต่อชั่วโมง
  • ประกอบด้วยยาง FKM รองรับการใช้งานที่ต้องสัมผัสสารเคมีบางชนิด

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U7123
  • รุ่นและระบบการทำงาน: EV220B แบบ NO (Normally Open)
  • ประเภทและขนาดเกลียว: G 3/4 นิ้ว
  • อัตราการไหล: 8 m³/h
  • วัสดุซีล: FKM
Gross weight 0.916 Kilogram
Net weight 0.862 Kilogram
Volume 0.88 Liter
EAN 5702423018222
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval DNVGL-CG-0339
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 3/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 9.25 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.35 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to open, water [ms] 40 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NO
In scope of WEEE Yes
Kv value [m³/h] 8 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Max. Working Pressure note Liquids: max 10 bar/145 psi
Media recommendations Oil,Comp.Air,Vacuum
Media tolerance comments Neutral media
Water at max. 60°C/140 °F
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] 0 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] 32 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 20 mm
Orifice size fraction [in] 3/4 in
Packing format Multi pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 24 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. e1e8e346-d9ba-4293-882a-99c4f592144c
SCIP dossier product name EV220B 15-50 brass NO - solenoid valve
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV220B 20B G 34F NO000
Type EV220B
Type designation EV220B 20
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์โมเดล: EV220B
  • สถานะการทำงาน: ปกติเปิด (NO)
  • ประเภทและขนาดเกลียว: G 3/4 นิ้ว
  • อัตราการไหล (Kv): 8 m³/h
  • วัสดุซีล: FKM
