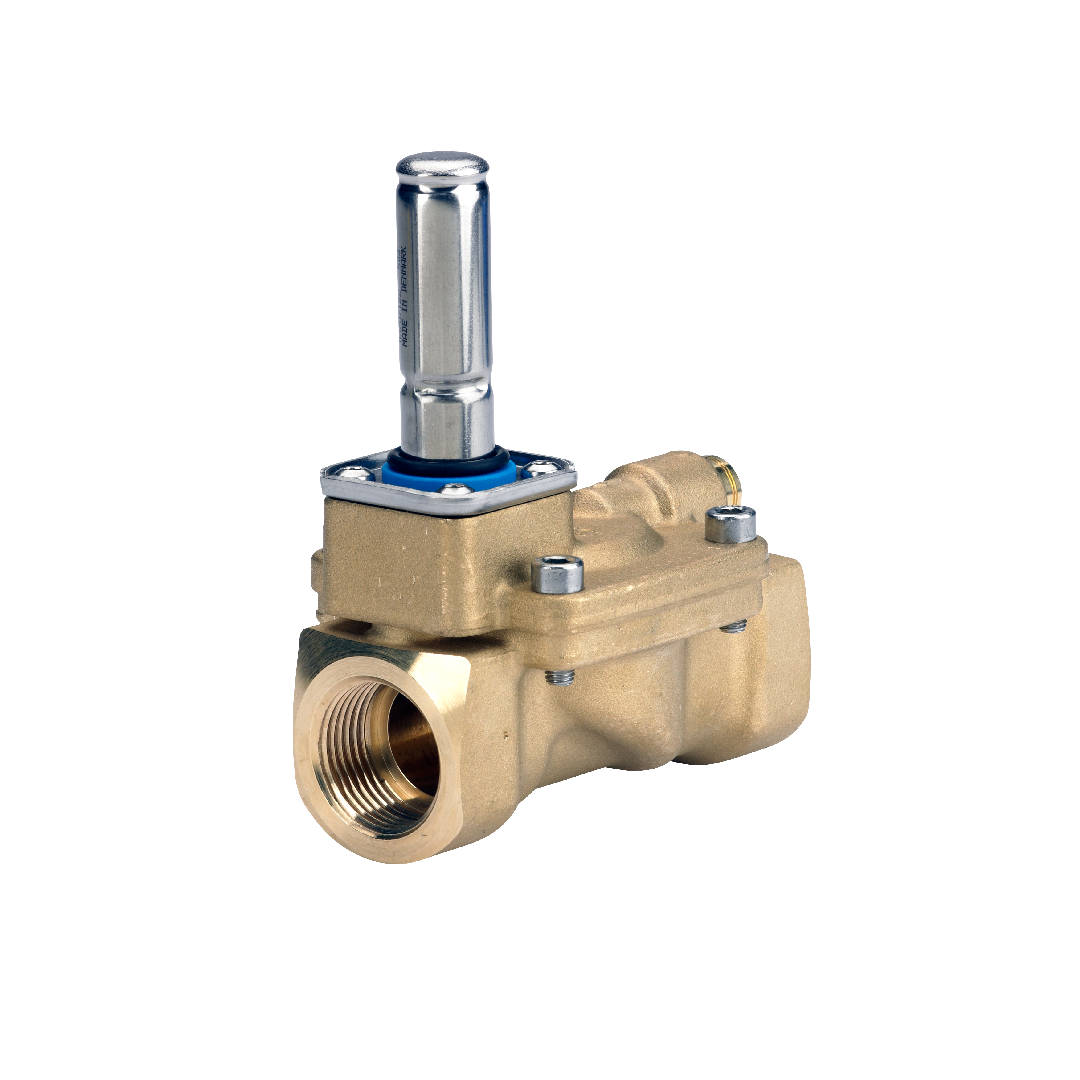

Danfoss Solenoid valve, EV220B, Function: NO, G, 3/4, 8 m³/h, EPDM 032U7122

Danfoss Solenoid valve, EV220B, Function: NO, G, 3/4, 8 m³/h, EPDM 032U7122

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 24,510.00 ฿
Regular price Sale price 24,510.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NO, G, 3/4, 8 m³/h, EPDM 032U7122

เพิ่มประสิทธิภาพการควบคุมของไหลด้วย Danfoss EV220B รหัส 032U7122 โซลินอยด์วาล์วมาตรฐานสากลที่ชูจุดเด่นด้านความแข็งแรง ขับเคลื่อนการทำงานแบบ ปกติเปิด (NO) ที่เปิดให้ของไหลผ่านได้อิสระเมื่อไม่มีไฟ เป็นทางเลือกที่ช่วยลดพลังงานสำหรับระบบที่ต้องเปิดแช่ไว้ ตัวอุปกรณ์มาพร้อมเกลียวเชื่อมต่อ G ขนาด 3/4 นิ้ว รองรับอัตราการไหลได้อย่างเต็มประสิทธิภาพที่ 8 m³/h ใช้วัสดุซีล EPDM คุณภาพสูงที่ถูกพัฒนามาให้ทนต่อน้ำ ไอน้ำ และความร้อนสะสมได้อย่างดีเยี่ยม พร้อมกลไก Servo-operated ที่ขึ้นชื่อเรื่องการลดแรงกระแทกของเหลวในเส้นท่อได้อย่างยอดเยี่ยม

คุณสมบัติ

  • วาล์วอุตสาหกรรม Danfoss ซีรีส์ EV220B ออกแบบมาเพื่อประสิทธิภาพขั้นสูง
  • สั่งการแบบ Normally Open (NO) จะปิดช่องทางเมื่อได้รับกระแสไฟฟ้า
  • ใช้เกลียวมาตรฐาน G ขนาดความกว้าง 3/4 นิ้ว ป้องกันการรั่วซึมได้ดี
  • ขีดความสามารถในการควบคุมปริมาณการไหลระดับ 8 m³/h
  • ใช้ซีลกันรั่วชนิด EPDM ที่มีความยืดหยุ่นสูงและอายุการใช้งานยาวนาน

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U7122
  • รุ่นและระบบการทำงาน: EV220B แบบ NO (Normally Open)
  • ประเภทและขนาดเกลียว: G 3/4 นิ้ว
  • อัตราการไหล: 8 m³/h
  • วัสดุซีล: EPDM
Gross weight 0.914 Kilogram
Net weight 0.868 Kilogram
Volume 0.88 Liter
EAN 5702423018864
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval DNVGL-CG-0339
GL
PZH
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 3/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 9.25 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.35 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to open, water [ms] 40 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NO
In scope of WEEE Yes
Kv value [m³/h] 8 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Max. Working Pressure note Liquids: max 10 bar/145 psi
Media recommendations Water & Brine
Media tolerance comments Neutral media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 20 mm
Orifice size fraction [in] 3/4 in
Packing format Multi pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 24 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. e1e8e346-d9ba-4293-882a-99c4f592144c
SCIP dossier product name EV220B 15-50 brass NO - solenoid valve
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 20B G 34E NO000
Type EV220B
Type designation EV220B 20
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์โมเดล: EV220B
  • สถานะการทำงาน: ปกติเปิด (NO)
  • ประเภทและขนาดเกลียว: G 3/4 นิ้ว
  • อัตราการไหล (Kv): 8 m³/h
  • วัสดุซีล: EPDM
