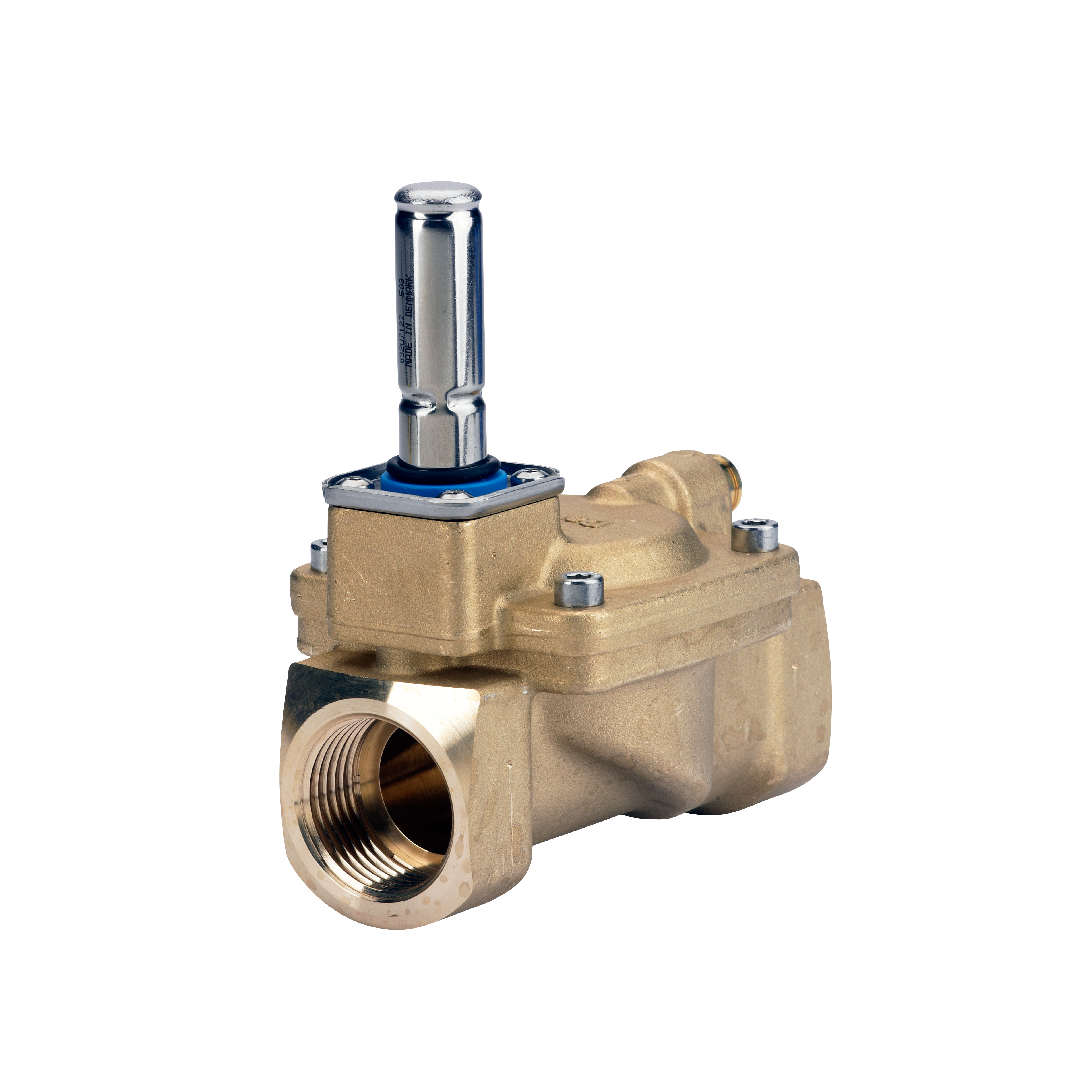

Danfoss Solenoid valve, EV220B, Function: NO, G, 1, 11 m³/h, EPDM 032U7127

Danfoss Solenoid valve, EV220B, Function: NO, G, 1, 11 m³/h, EPDM 032U7127

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 21,330.00 ฿
Regular price Sale price 21,330.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NO, G, 1, 11 m³/h, EPDM 032U7127

Danfoss Solenoid valve, EV220B, Function: NO, G, 1, 11 m³/h, EPDM 032U7127: โซลินอยด์วาล์วคุณภาพสูง Danfoss ซีรีส์ EV220B ชนิดปกติเปิด (NO) ขนาดเกลียว G 1 นิ้ว อัตราการไหล 11 m³/h ติดตั้งซีล EPDM ที่ทนทานต่อน้ำร้อนและน้ำเย็นได้อย่างยอดเยี่ยม ออกแบบให้วาล์วเปิดในสภาวะปกติเพื่ออำนวยความสะดวกให้ระบบหมุนเวียนของไหล และปิดเมื่อได้รับกระแสไฟ ช่วยควบคุมการทำงานได้อย่างตรงจังหวะ เพิ่มประสิทธิภาพ ความปลอดภัย และลดการซ่อมบำรุงในระบบท่อประปาอุตสาหกรรมได้อย่างยั่งยืน

คุณสมบัติ

  • โซลินอยด์วาล์วอุตสาหกรรม Danfoss ซีรีส์ EV220B
  • ออกแบบให้มีระบบการทำงานแบบปกติเปิด (NO)
  • จุดเชื่อมต่อท่อขนาด 1 นิ้ว ชนิดเกลียว G
  • ความสามารถในการรองรับอัตราการไหล 11 m³/h
  • ชิ้นส่วนซีลภายในผลิตจากวัสดุ EPDM

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U7127 (รุ่น EV220B)
  • รูปแบบการทำงาน: ปกติเปิด (NO)
  • การเชื่อมต่อ: เกลียว G ขนาด 1 นิ้ว
  • อัตราการไหล: 11 m³/h
  • วัสดุซีล: EPDM
Gross weight 1.382 Kilogram
Net weight 1.32 Kilogram
Volume 1.295 Liter
EAN 5702423018871
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval DNVGL-CG-0339
GL
PZH
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 12.7 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.35 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to open, water [ms] 300 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NO
In scope of WEEE Yes
Kv value [m³/h] 11 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Max. Working Pressure note Liquids: max 10 bar/145 psi
Media recommendations Water & Brine
Media tolerance comments Neutral media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 25 mm
Orifice size fraction [in] 1 in
Packing format Multi pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. e1e8e346-d9ba-4293-882a-99c4f592144c
SCIP dossier product name EV220B 15-50 brass NO - solenoid valve
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 25B G 1E NO000
Type EV220B
Type designation EV220B 25
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์และรหัสสินค้า รุ่น EV220B (รหัส 032U7127)
  • สถานะการทำงาน (Function) NO
  • ประเภทและขนาดเกลียว เกลียว G ขนาด 1 นิ้ว
  • ปริมาณการไหล (Kv) 11 m³/h
  • วัสดุซีล EPDM
