Danfoss Solenoid valve, EV220B, Function: NC, NPT, 3/4, 8 m³/h, EPDM 032U6533

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 3/4, 8 m³/h, EPDM 032U6533

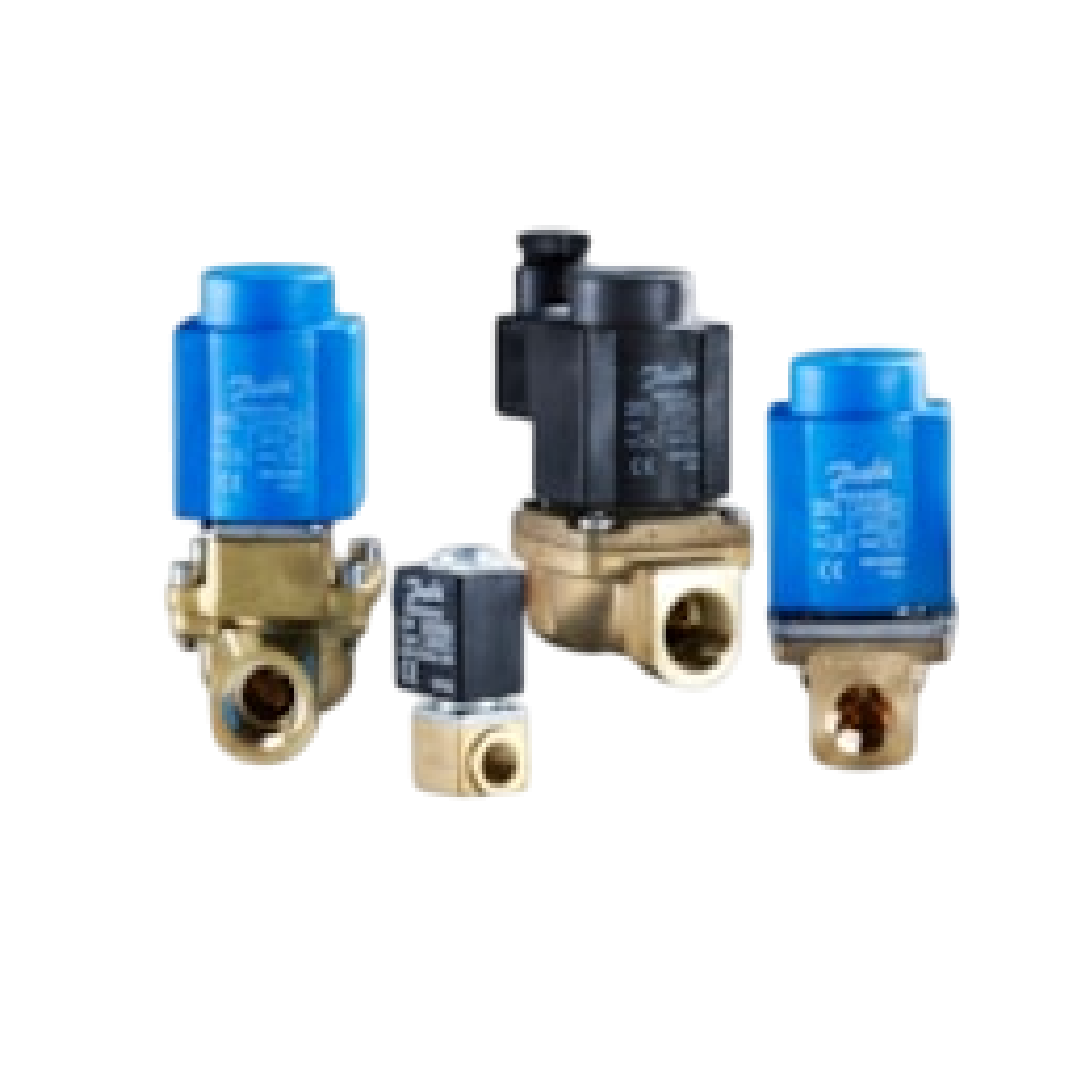

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 12,820.00 ฿
Regular price Sale price 12,820.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, NPT, 3/4, 8 m³/h, EPDM 032U6533

ยกระดับความเชื่อมั่นให้ระบบท่อด้วย โซลินอยด์วาล์ว Danfoss รหัส 032U6533 รุ่น EV220B โซลินอยด์วาล์วสเปคยุโรปที่ให้ความคุ้มค่าสูงสุด ทำงานด้วยกลไก ปกติปิด (Normally Closed) ตอบสนองความต้องการด้านความปลอดภัย โดยจะปิดสนิทเมื่อไร้สัญญาณไฟ รองรับโฟลว์เรตได้มาตรฐาน 8 m³/h พร้อมเกลียวการเชื่อมต่อแบบ NPT ขนาด 3/4 นิ้ว ซีลด้านในทำจาก EPDM ที่ทนทานต่อน้ำร้อนและไอน้ำได้อย่างมีเสถียรภาพ ระบบขับเคลื่อนแบบ Servo-operated ออกแบบมาเพื่อเพิ่มความนุ่มนวลในการเปิดปิดวาล์ว และสลายปัญหา Water hammer ที่มักทำลายโครงสร้างท่อ

คุณสมบัติ

  • วาล์วอุตสาหกรรม Danfoss ซีรีส์ EV220B ออกแบบมาเพื่อประสิทธิภาพขั้นสูง
  • กลไกแบบ NC (ปกติปิด) ป้องกันการรั่วไหลได้อย่างมั่นใจ
  • ใช้เกลียวมาตรฐาน NPT ขนาดความกว้าง 3/4 นิ้ว ป้องกันการรั่วซึมได้ดี
  • ขีดความสามารถในการควบคุมปริมาณการไหลระดับ 8 m³/h
  • ใช้ซีลกันรั่วชนิด EPDM ที่มีความยืดหยุ่นสูงและอายุการใช้งานยาวนาน

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U6533
  • รุ่นและระบบการทำงาน: EV220B แบบ NC (Normally Closed)
  • ประเภทและขนาดเกลียว: NPT 3/4 นิ้ว
  • อัตราการไหล: 8 m³/h
  • วัสดุซีล: EPDM
Gross weight 0.961 Kilogram
Net weight 0.899 Kilogram
Volume 1.295 Liter
EAN 5702423031696
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Open
Approval C UL US LISTED
DNVGL-CG-0339
GL
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 3/4
Connection standard ANSI/ASME B1.20.1
Connection type NPT
Contain batteries No
Cv value [gal/min] 9.25 gal/min
Differential pressure [bar] [max] 9.791 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 142 psi
Differential pressure [psi] [min] 4.351 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to open, water [ms] 40 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 8 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 20 bar
Max. test pressure [psig] 290 psig
Max. Working Pressure [bar] 15.5 bar
Max. Working Pressure [psig] 225 psig
Media recommendations Water & Brine
Media tolerance comments Neutral media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 20 mm
Orifice size fraction [in] 3/4 in
Packing format Multi pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. b8af40bc-3f7f-4177-bd55-c3503cccfc04
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 20B N 34E NC000
Type EV220B
Type designation EV220B 20
UK RoHS compliance Out of scope
UL evaluated Yes

ข้อมูลทางเทคนิค

  • ซีรีส์โมเดล: EV220B
  • สถานะการทำงาน: ปกติปิด (NC)
  • ประเภทและขนาดเกลียว: NPT 3/4 นิ้ว
  • อัตราการไหล (Kv): 8 m³/h
  • วัสดุซีล: EPDM
