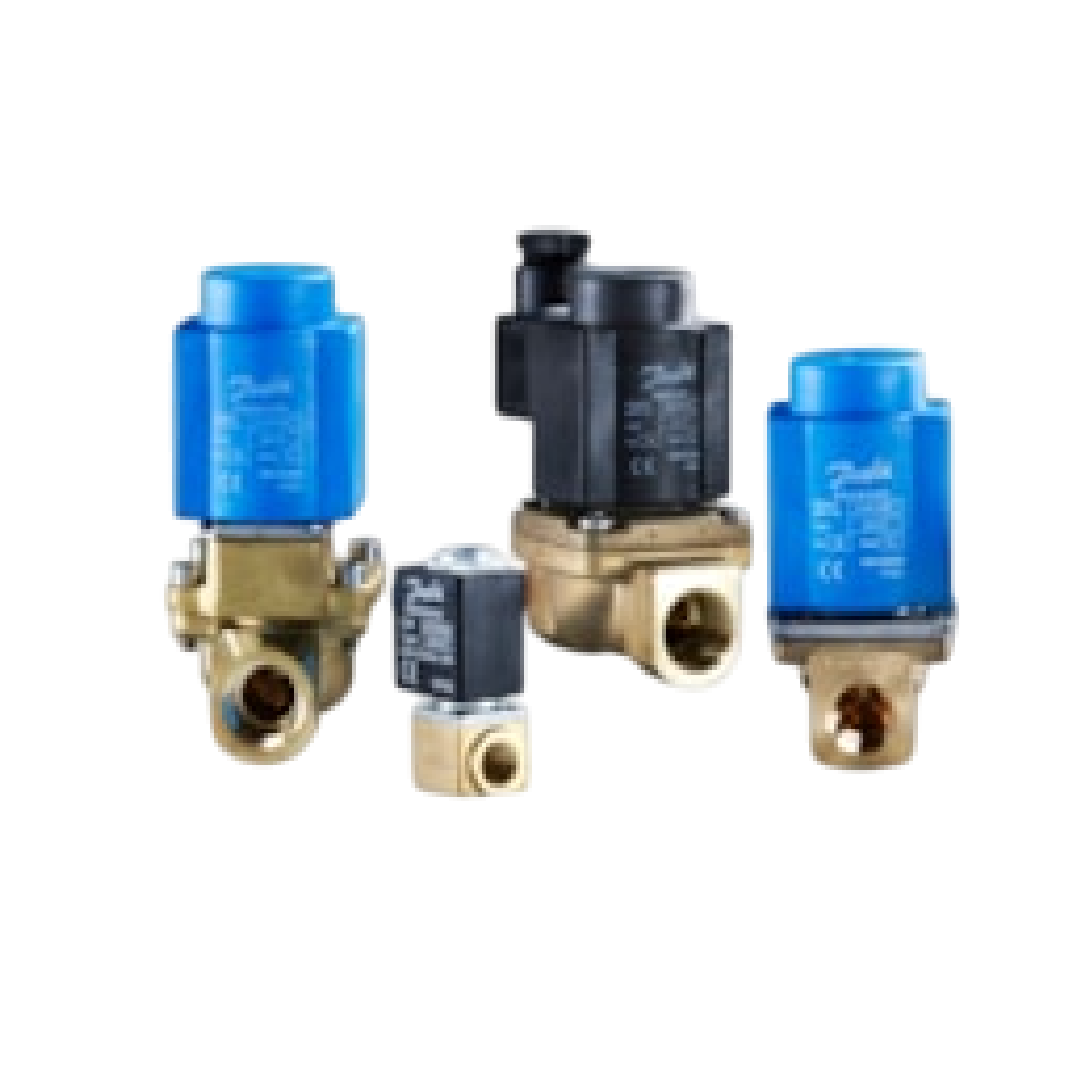

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 3/4, 6 m³/h, EPDM 032U6523

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 3/4, 6 m³/h, EPDM 032U6523

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 18,530.00 ฿
Regular price Sale price 18,530.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, NPT, 3/4, 6 m³/h, EPDM 032U6523

ยกระดับมาตรฐานระบบของเหลวด้วย โซลินอยด์วาล์ว Danfoss รหัส 032U6523 รุ่น EV220B ตัวช่วยจัดการทิศทางน้ำที่เชื่อถือได้ ใช้รูปแบบ ปกติปิด (NC) ทำหน้าที่สกัดกั้นการไหลเป็นหลักเมื่อไม่มีไฟ ป้องกันปัญหาของไหลทะลักจากเหตุไฟฟ้าขัดข้อง บริหารปริมาณของไหลได้ถึง 6 m³/h ด้วยรูปแบบข้อต่อเกลียวมาตรฐาน NPT ขนาด 3/4 นิ้ว ช่วยให้ประกอบติดตั้งทำได้ง่ายและทนแรงดัน ภายในติดตั้งซีลยาง EPDM ที่ต้านทานการสึกหรอจากสภาพอากาศและน้ำร้อนได้ยอดเยี่ยม ทำงานคู่กับระบบ Servo-operated ที่สลายปัญหาเสียงดังหรือท่อกระตุกเมื่อปิดวาล์ว

คุณสมบัติ

  • วาล์วอุตสาหกรรม Danfoss ซีรีส์ EV220B ออกแบบมาเพื่อประสิทธิภาพขั้นสูง
  • กลไกแบบ NC (ปกติปิด) ป้องกันการรั่วไหลได้อย่างมั่นใจ
  • ใช้เกลียวมาตรฐาน NPT ขนาดความกว้าง 3/4 นิ้ว ป้องกันการรั่วซึมได้ดี
  • ขีดความสามารถในการควบคุมปริมาณการไหลระดับ 6 m³/h
  • ใช้ซีลกันรั่วชนิด EPDM ที่มีความยืดหยุ่นสูงและอายุการใช้งานยาวนาน

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U6523
  • รุ่นและระบบการทำงาน: EV220B แบบ NC (Normally Closed)
  • ประเภทและขนาดเกลียว: NPT 3/4 นิ้ว
  • อัตราการไหล: 6 m³/h
  • วัสดุซีล: EPDM
Gross weight 0.71 Kilogram
Net weight 0.656 Kilogram
Volume 0.88 Liter
EAN 5702423031481
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Open
Approval C UL US LISTED
cURus recognized
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 3/4
Connection standard ANSI/ASME B1.20.1
Connection type NPT
Contain batteries No
Cv value [gal/min] 6.95 gal/min
Differential pressure [bar] [max] 9.971 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 142 psi
Differential pressure [psi] [min] 4.351 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 500 ms
Est. time to open, water [ms] 200 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 6 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 16 bar
Max. test pressure [psig] 232 psig
Max. Working Pressure [bar] 9.8 bar
Max. Working Pressure [psig] 142 psig
Media recommendations Water & Brine
Media tolerance comments Neutral media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] 0 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] 32 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 18 mm
Orifice size fraction [in] 3/4 in
Packing format Multi pack
Parts Program name EV220B 6 - 22
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 24 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. f440c2c1-98fa-405b-9256-d9b24590a97e
SCIP dossier product name EV220B 6-22 brass NC - solenoid valve
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 18B N 34E NC000
Type EV220B
Type designation EV220B 18
UK RoHS compliance Out of scope
UL evaluated Yes

ข้อมูลทางเทคนิค

  • ซีรีส์โมเดล: EV220B
  • สถานะการทำงาน: ปกติปิด (NC)
  • ประเภทและขนาดเกลียว: NPT 3/4 นิ้ว
  • อัตราการไหล (Kv): 6 m³/h
  • วัสดุซีล: EPDM
