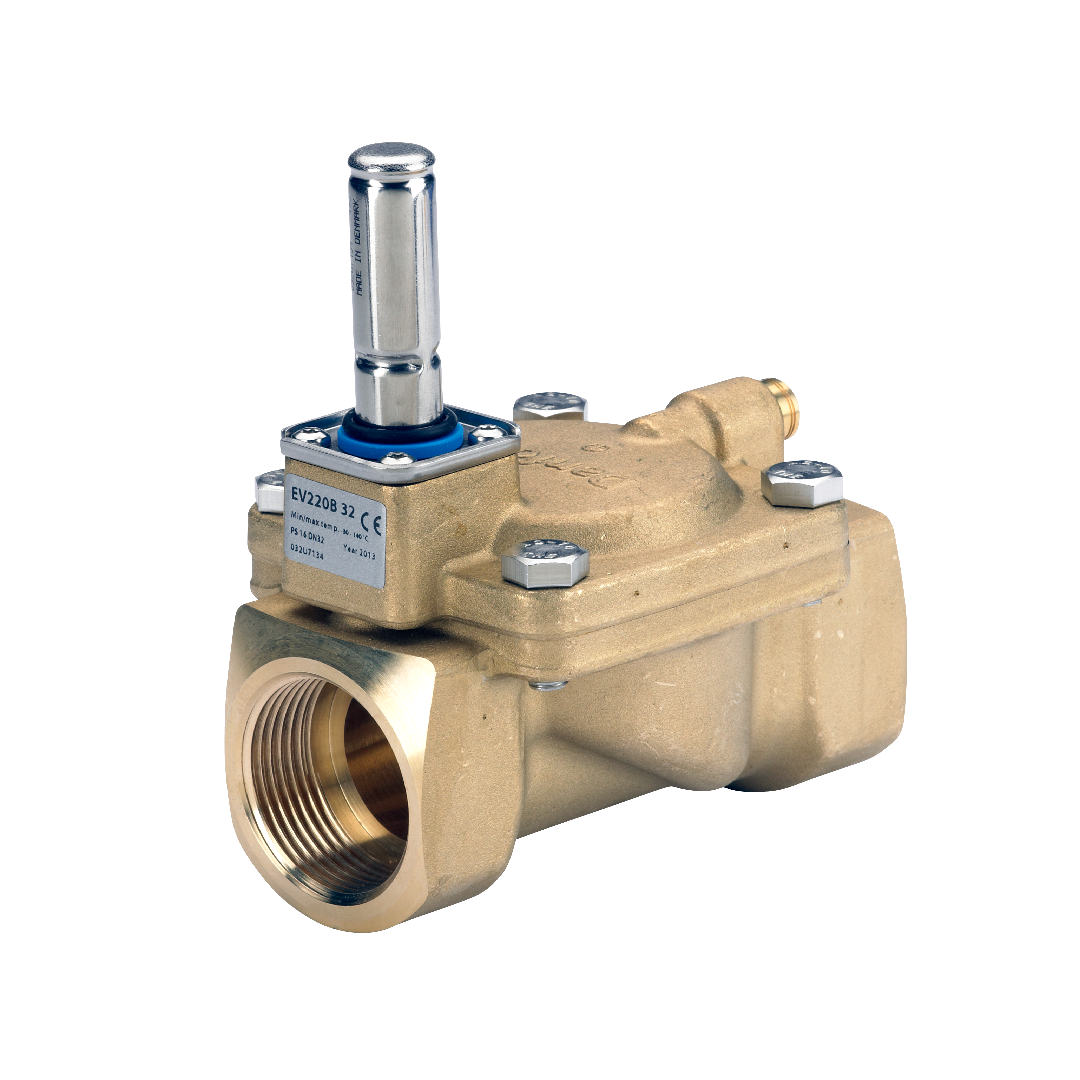

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1 1/4, 18 m³/h, EPDM 032U7535

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1 1/4, 18 m³/h, EPDM 032U7535

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 19,420.00 ฿
Regular price Sale price 19,420.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1 1/4, 18 m³/h, EPDM 032U7535

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1 1/4, 18 m³/h, EPDM 032U7535: โซลินอยด์วาล์วควบคุมของไหลจาก Danfoss รุ่น EV220B ฟังก์ชันปกติปิด (NC) เกลียว NPT ขนาด 1 1/4 นิ้ว รองรับอัตราการไหล 18 m³/h มาพร้อมแผ่นซีล EPDM คุณภาพสูง ซึ่งมีคุณสมบัติทนทานต่อน้ำร้อนและสภาพอากาศได้ดีเยี่ยม ระบบทำงานด้วย Servo-operated มอบความนุ่มนวลและแม่นยำ ตอบสนองต่อการทำงานอัตโนมัติได้อย่างรวดเร็ว ช่วยป้องกันการรั่วซึมและรักษาความดันในระบบให้คงที่ เหมาะสำหรับระบบจัดการน้ำในโรงงานอุตสาหกรรมยุคใหม่

คุณสมบัติ

  • โซลินอยด์วาล์วอุตสาหกรรม Danfoss ซีรีส์ EV220B
  • ออกแบบให้มีระบบการทำงานแบบปกติปิด (NC)
  • จุดเชื่อมต่อท่อขนาด 1 1/4 นิ้ว ชนิดเกลียว NPT
  • ความสามารถในการรองรับอัตราการไหล 18 m³/h
  • ชิ้นส่วนซีลภายในผลิตจากวัสดุ EPDM

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U7535 (รุ่น EV220B)
  • รูปแบบการทำงาน: ปกติปิด (NC)
  • การเชื่อมต่อ: เกลียว NPT ขนาด 1 1/4 นิ้ว
  • อัตราการไหล: 18 m³/h
  • วัสดุซีล: EPDM
Gross weight 2.347 Kilogram
Net weight 1.963 Kilogram
Volume 7.334 Liter
EAN 5702423044726
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval CE
DNVGL-CG-0339
PED
UKCA
Body material Brass
CE evaluated Yes
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1 1/4
Connection standard ANSI/ASME B1.20.1
Connection type NPT
Contain batteries No
Cv value [gal/min] 20.8 gal/min
Differential pressure [bar] [max] 9.791 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 142 psi
Differential pressure [psi] [min] 4.351 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 2500 ms
Est. time to open, water [ms] 1000 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 18 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 20 bar
Max. test pressure [psig] 290 psig
Max. Working Pressure [bar] 12.4 bar
Max. Working Pressure [psig] 180 psig
Media recommendations Water & Brine
Media tolerance comments Neutral media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 140 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 284 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 32 mm
Orifice size fraction [in] 1 1/4 in
Packing format Single pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 1 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. b8af40bc-3f7f-4177-bd55-c3503cccfc04
SCIP dossier product name EV220B 15-50 brass NC - solenoid valve
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 32B N 114E NC000
Type EV220B
Type designation EV220B 32
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์และรหัสสินค้า รุ่น EV220B (รหัส 032U7535)
  • สถานะการทำงาน (Function) NC
  • ประเภทและขนาดเกลียว เกลียว NPT ขนาด 1 1/4 นิ้ว
  • ปริมาณการไหล (Kv) 18 m³/h
  • วัสดุซีล EPDM
