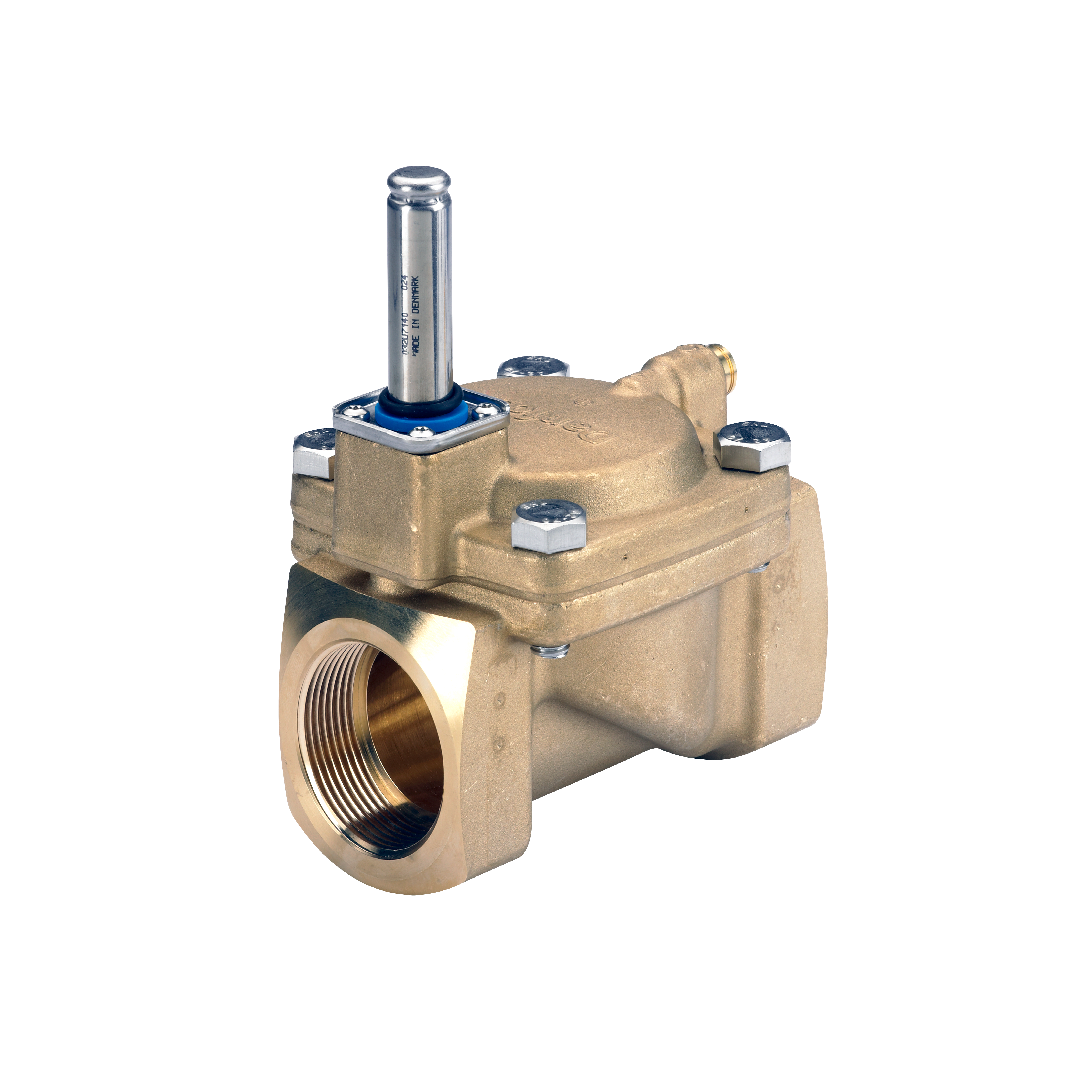

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1 1/2, 24 m³/h, EPDM 032U6536

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1 1/2, 24 m³/h, EPDM 032U6536

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 26,140.00 ฿
Regular price Sale price 26,140.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1 1/2, 24 m³/h, EPDM 032U6536

วาล์วแม่เหล็กไฟฟ้า Danfoss รหัสสินค้า 032U6536 ซีรีส์ EV220B นวัตกรรมการจัดการของไหลที่ผสานความทนทานและความปลอดภัยเข้าด้วยกันอย่างลงตัว โดดเด่นด้วยรูปแบบการทำงาน ปกติปิด (NC) วาล์วจะบล็อกของเหลวทันทีที่ไม่มีการสั่งการด้วยไฟฟ้า เพื่อควบคุมระบบให้อยู่ในสถานะปลอดภัยเสมอ สามารถบริหารอัตราการไหลได้ 24 m³/h ผ่านตัวเกลียวมาตรฐานอเมริกัน NPT ขนาด 1 1/2 นิ้ว ภายในติดตั้งซีลยาง EPDM ที่พัฒนามาให้ต้านทานน้ำ ไอน้ำ และความร้อนสะสม ผนวกกับระบบขับเคลื่อนแบบ Servo-operated ที่ทำงานราบรื่น ช่วยลดภาระการซ่อมบำรุง

คุณสมบัติ

  • วาล์วอุตสาหกรรม Danfoss ซีรีส์ EV220B ออกแบบมาเพื่อประสิทธิภาพขั้นสูง
  • กลไกแบบ NC (ปกติปิด) ป้องกันการรั่วไหลได้อย่างมั่นใจ
  • ใช้เกลียวมาตรฐาน NPT ขนาดความกว้าง 1 1/2 นิ้ว ป้องกันการรั่วซึมได้ดี
  • ขีดความสามารถในการควบคุมปริมาณการไหลระดับ 24 m³/h
  • ใช้ซีลกันรั่วชนิด EPDM ที่มีความยืดหยุ่นสูงและอายุการใช้งานยาวนาน

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U6536
  • รุ่นและระบบการทำงาน: EV220B แบบ NC (Normally Closed)
  • ประเภทและขนาดเกลียว: NPT 1 1/2 นิ้ว
  • อัตราการไหล: 24 m³/h
  • วัสดุซีล: EPDM
Gross weight 3.442 Kilogram
Net weight 2.973 Kilogram
Volume 7.334 Liter
EAN 5702423031634
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Open
Approval C UL US LISTED
CE
DNVGL-CG-0339
GL
UKCA
cURus recognized
Body material Brass
CE evaluated Yes
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1 1/2
Connection standard ANSI/ASME B1.20.1
Connection type NPT
Contain batteries No
Cv value [gal/min] 27.7 gal/min
Differential pressure [bar] [max] 9.791 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 142 psi
Differential pressure [psi] [min] 4.351 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 4000 ms
Est. time to open, water [ms] 1500 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 24 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 20 bar
Max. test pressure [psig] 290 psig
Max. Working Pressure [bar] 12.4 bar
Max. Working Pressure [psig] 180 psig
Media recommendations Water & Brine
Media tolerance comments Neutral media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 40 mm
Orifice size fraction [in] 1 1/2 in
Packing format Single pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 1 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. b8af40bc-3f7f-4177-bd55-c3503cccfc04
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 40B N 112E NC000
Type EV220B
Type designation EV220B 40
UK RoHS compliance Out of scope
UL evaluated Yes

ข้อมูลทางเทคนิค

  • ซีรีส์โมเดล: EV220B
  • สถานะการทำงาน: ปกติปิด (NC)
  • ประเภทและขนาดเกลียว: NPT 1 1/2 นิ้ว
  • อัตราการไหล (Kv): 24 m³/h
  • วัสดุซีล: EPDM
