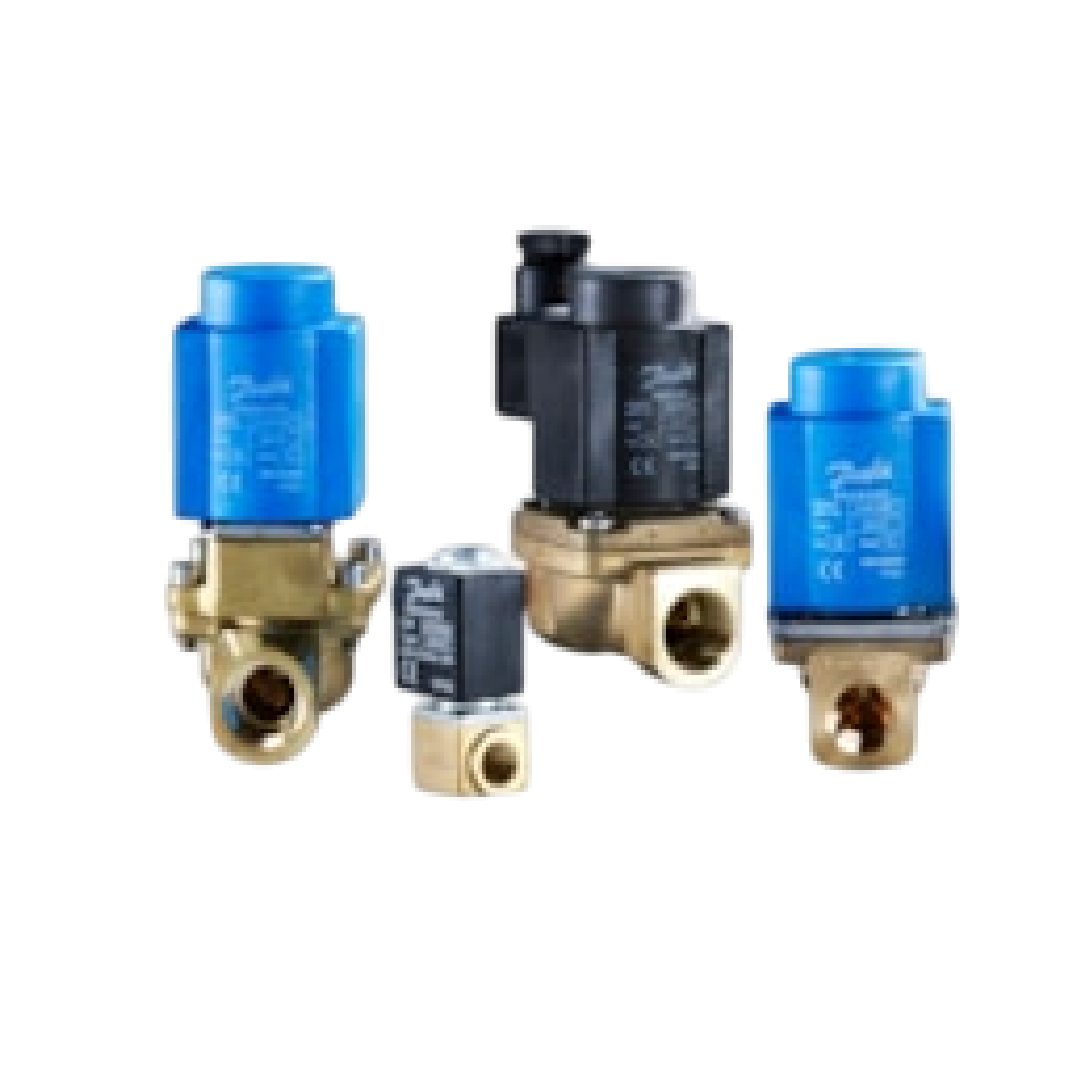

Danfoss Solenoid valve, EV220B, Function: NC, G, 3/8, 0.7 m³/h, EPDM 032U5807

Danfoss Solenoid valve, EV220B, Function: NC, G, 3/8, 0.7 m³/h, EPDM 032U5807

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 26,140.00 ฿
Regular price Sale price 26,140.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, G, 3/8, 0.7 m³/h, EPDM 032U5807

โซลินอยด์วาล์ว Danfoss ซีรีส์ EV220B รหัส 032U5807 ตัวแทนแห่งความน่าเชื่อถือสำหรับการควบคุมทิศทางน้ำในโรงงานอุตสาหกรรม มีฟังก์ชันการทำงานแบบ ปกติปิด (NC) วาล์วจะล็อคระบบทันทีหากตัดกระแสไฟฟ้าเพื่อความปลอดภัยเหนือระดับ ตัวอุปกรณ์รองรับโฟลว์เรต 0.7 m³/h เชื่อมต่อได้สะดวกด้วยข้อต่อมาตรฐานยุโรปเกลียว G ขนาด 3/8 นิ้ว ภายในติดตั้งซีลยาง EPDM ที่ออกแบบมาให้ทนทานต่อน้ำร้อนและทนทานต่อสภาพแวดล้อมภายนอก เสริมสมรรถนะด้วยระบบ Servo-operated ทำให้ตัววาล์วสามารถรับแรงกระแทกของน้ำและรักษาสภาพระบบท่อให้สมบูรณ์

คุณสมบัติ

  • ผลิตภัณฑ์ควบคุมการไหลรุ่น EV220B ตอบสนองการทำงานได้อย่างแม่นยำ
  • สั่งการแบบ Normally Closed (NC) จะเปิดช่องทางเมื่อได้รับกระแสไฟฟ้า
  • รูปแบบเกลียว G ขนาด 3/8 นิ้ว รองรับการติดตั้งที่หลากหลาย
  • ประสิทธิภาพการระบายของไหล 0.7 ลูกบาศก์เมตรต่อชั่วโมง
  • ประกอบด้วยยาง EPDM ซึ่งมีความทนทานต่อสภาพแวดล้อมที่เป็นไอน้ำ

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U5807
  • รุ่นและระบบการทำงาน: EV220B แบบ NC (Normally Closed)
  • ประเภทและขนาดเกลียว: G 3/8 นิ้ว
  • อัตราการไหล: 0.7 m³/h
  • วัสดุซีล: EPDM
Gross weight 0.24 Kilogram
Net weight 0.217 Kilogram
Volume 0.253 Liter
EAN 5702423054503
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval SINTEF
Body material DZR brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material DZR brass
Connection size [in] 3/8
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 0.8 gal/min
Differential pressure [bar] [max] 20 bar
Differential pressure [bar] [min] 0.1 bar
Differential pressure [psi] [max] 290 psi
Differential pressure [psi] [min] 1.45 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 250 ms
Est. time to open, water [ms] 40 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 0.7 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 30 bar
Max. test pressure [psig] 435 psig
Max. Working Pressure [bar] 20 bar
Max. Working Pressure [psig] 290 psig
Media recommendations Technical & Soft Water
Media tolerance comments Slightly aggressive media
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 6 mm
Orifice size fraction [in] 1/4 in
Packing format Multi pack
Parts Program name EV220B 6 - 22
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 20 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. f440c2c1-98fa-405b-9256-d9b24590a97e
SCIP dossier product name EV220B 6-22 brass NC - solenoid valve
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 6BD G 38E NC000
Type EV220B
Type designation EV220B 6
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์โมเดล: EV220B
  • สถานะการทำงาน: ปกติปิด (NC)
  • ประเภทและขนาดเกลียว: G 3/8 นิ้ว
  • อัตราการไหล (Kv): 0.7 m³/h
  • วัสดุซีล: EPDM
