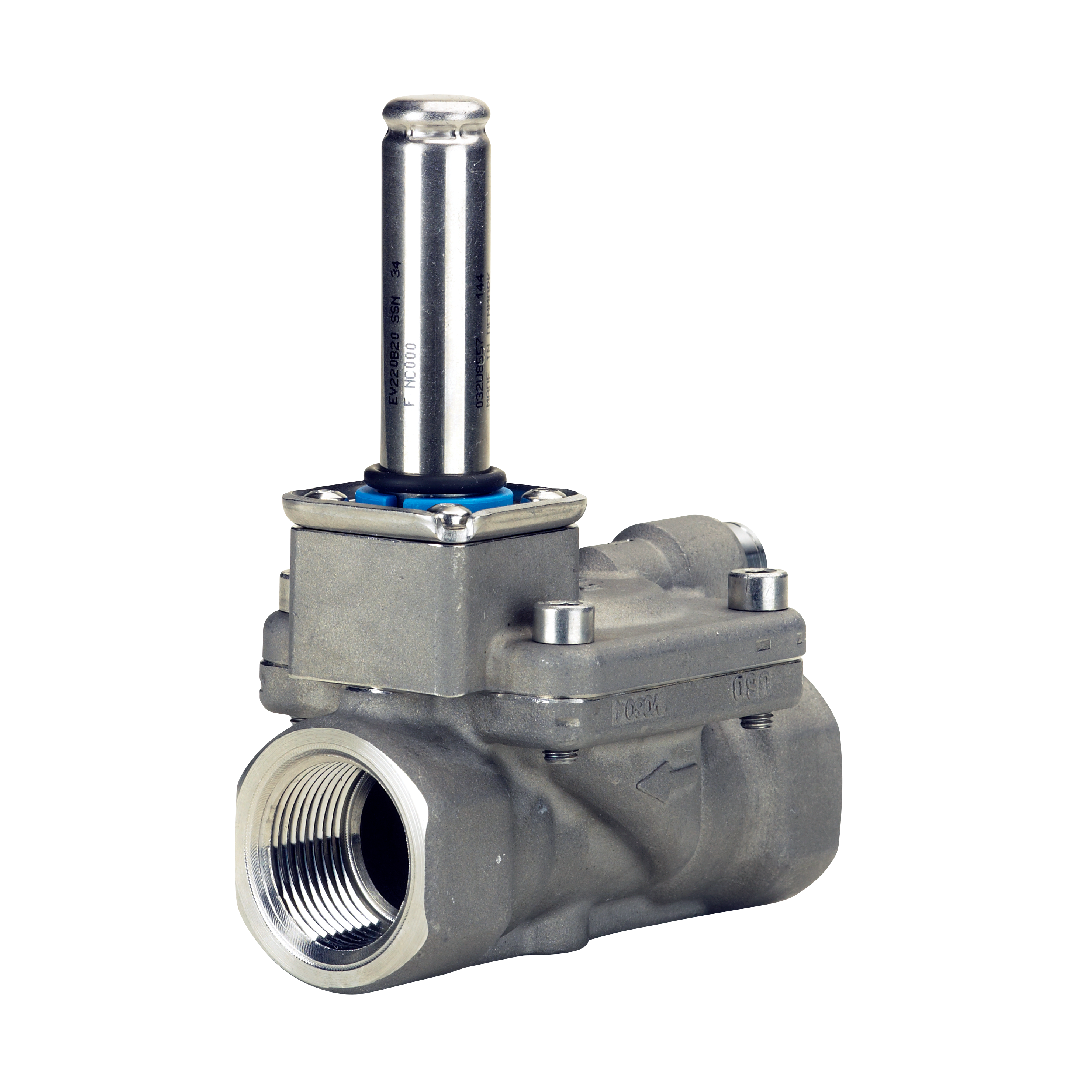

Danfoss Solenoid valve, EV220B, Function: NC, G, 3/4, 8 m³/h, EPDM 032U7161

Danfoss Solenoid valve, EV220B, Function: NC, G, 3/4, 8 m³/h, EPDM 032U7161

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 15,130.00 ฿
Regular price Sale price 15,130.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, G, 3/4, 8 m³/h, EPDM 032U7161

Danfoss Solenoid valve, EV220B, Function: NC, G, 3/4, 8 m³/h, EPDM 032U7161: ผลิตภัณฑ์วาล์วไฟฟ้าคุณภาพเยี่ยมจาก Danfoss รุ่น EV220B ฟังก์ชันปกติปิด (NC) ขนาดเกลียว G 3/4 นิ้ว อัตราการไหล 8 m³/h พร้อมซีล EPDM ที่มีจุดเด่นในการทนต่อน้ำร้อน ไอน้ำระดับต่ำ และสารละลายเจือจาง กลไกแบบ Servo-operated ให้การขับเคลื่อนของไหลสมบูรณ์แบบ เปิดปิดฉับไว ช่วยคงความดันในระบบอย่างมีเสถียรภาพ ป้องกันการสูญเสียพลังงาน โครงสร้างวาล์วทนทาน ปลอดภัย เหมาะสำหรับงานระบบน้ำและระบบทำความร้อนอุตสาหกรรม

คุณสมบัติ

  • โซลินอยด์วาล์วอุตสาหกรรม Danfoss ซีรีส์ EV220B
  • ออกแบบให้มีระบบการทำงานแบบปกติปิด (NC)
  • จุดเชื่อมต่อท่อขนาด 3/4 นิ้ว ชนิดเกลียว G
  • ความสามารถในการรองรับอัตราการไหล 8 m³/h
  • ชิ้นส่วนซีลภายในผลิตจากวัสดุ EPDM

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U7161 (รุ่น EV220B)
  • รูปแบบการทำงาน: ปกติปิด (NC)
  • การเชื่อมต่อ: เกลียว G ขนาด 3/4 นิ้ว
  • อัตราการไหล: 8 m³/h
  • วัสดุซีล: EPDM
Gross weight 0.913 Kilogram
Net weight 0.842 Kilogram
Volume 0.88 Liter
EAN 5702423055180
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Body material Nickel plated brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Nickel plated brass
Connection size [in] 3/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 9.25 gal/min
Differential pressure [bar] [max] 16 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 232 psi
Differential pressure [psi] [min] 4.35 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to open, water [ms] 40 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 8 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 24 bar
Max. test pressure [psig] 348 psig
Max. Working Pressure [bar] 16 bar
Max. Working Pressure [psig] 232 psig
Media recommendations Technical & Soft Water
Media tolerance comments Slightly aggressive media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 20 mm
Orifice size fraction [in] 3/4 in
Packing format Multi pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 24 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. b8af40bc-3f7f-4177-bd55-c3503cccfc04
SCIP dossier product name EV220B 15-50 brass NC - solenoid valve
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 20BN G 34E NC000
Type EV220B
Type designation EV220B 20
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์และรหัสสินค้า รุ่น EV220B (รหัส 032U7161)
  • สถานะการทำงาน (Function) NC
  • ประเภทและขนาดเกลียว เกลียว G ขนาด 3/4 นิ้ว
  • ปริมาณการไหล (Kv) 8 m³/h
  • วัสดุซีล EPDM
