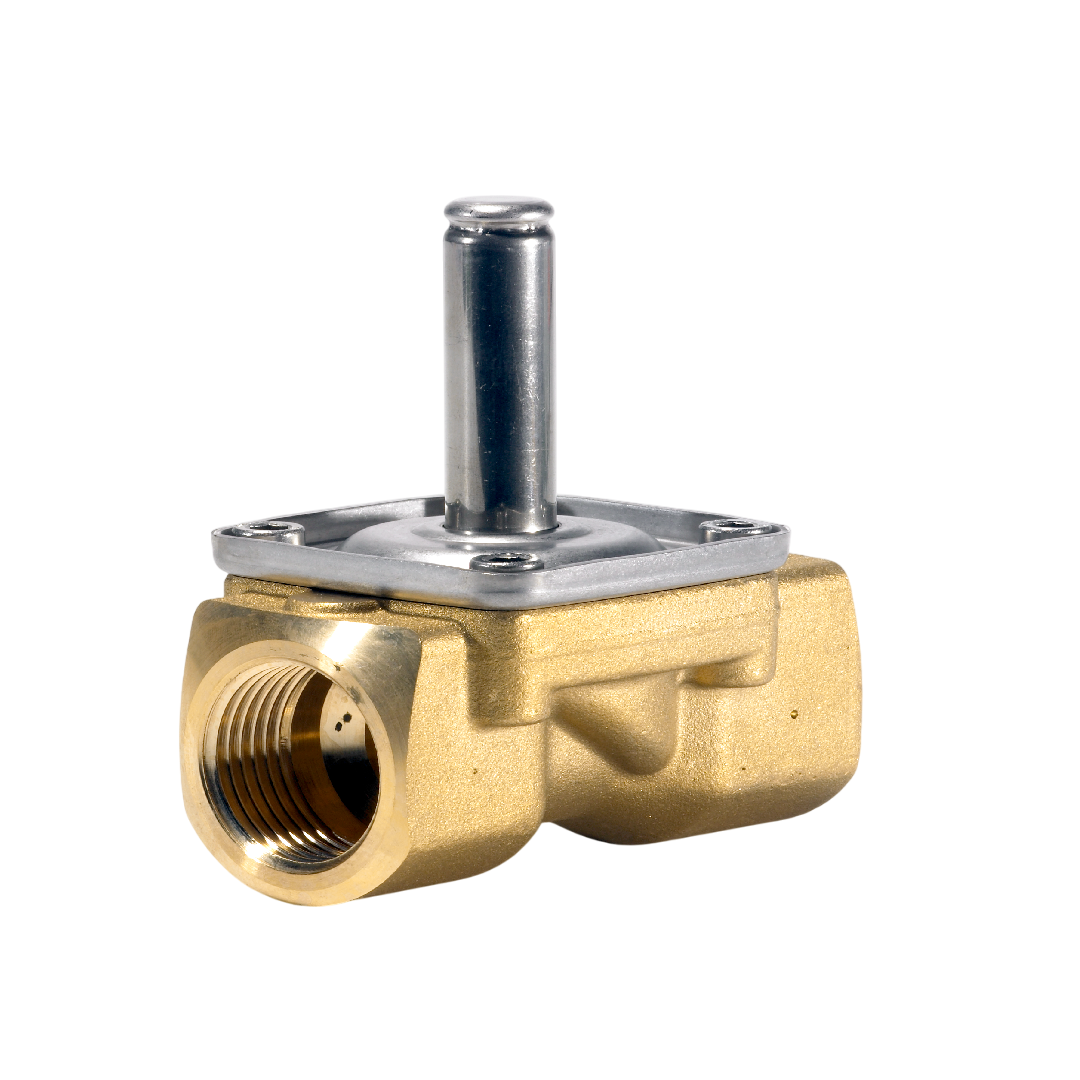

Danfoss Solenoid valve, EV220B, Function: NC, G, 3/4, 6 m³/h, EPDM 032U2261

Danfoss Solenoid valve, EV220B, Function: NC, G, 3/4, 6 m³/h, EPDM 032U2261

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 29,110.00 ฿
Regular price Sale price 29,110.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, G, 3/4, 6 m³/h, EPDM 032U2261

รับมือกับระบบขนาดใหญ่ด้วยประสิทธิภาพเหนือระดับจากโซลินอยด์วาล์ว Danfoss รุ่น EV220B รหัส 032U2261 นวัตกรรมวาล์วแบบทำงานโดยอ้อมจากเดนมาร์กที่ทรงพลัง โหมดการทำงานปกติปิด (NC) ช่วยรักษาเสถียรภาพโดยบล็อกของเหลวทันทีที่ไฟดับ มาพร้อมขนาดเกลียวใหญ่ G 3/4 นิ้ว และรองรับวอลลุ่มการไหลมหาศาลถึง 6 ลูกบาศก์เมตรต่อชั่วโมง ผสานเข้ากับระบบซีล EPDM ที่ทนต่อสภาพแวดล้อมทางน้ำได้อย่างดีเยี่ยม ให้คุณมั่นใจในการส่งผ่านแรงดันที่ราบรื่นและจัดการกระบวนการของเหลวปริมาณมากได้อย่างมืออาชีพ

คุณสมบัติ

  • โซลินอยด์วาล์วคุณภาพสูง Danfoss รุ่น EV220B
  • กลไกการทำงานรูปแบบ ปกติปิด (NC)
  • รองรับการเชื่อมต่อด้วยเกลียวขนาด G 3/4 นิ้ว
  • ประสิทธิภาพอัตราการไหลอยู่ที่ 6 m³/h
  • วัสดุซีลภายในเป็นชนิด EPDM ทนทานต่องานอุตสาหกรรม

ข้อมูลจำเพาะ

  • ประเภท: โซลินอยด์วาล์ว Danfoss รุ่น EV220B
  • รหัสสินค้า: 032U2261
  • การทำงาน: NC
  • ขนาดเกลียวและอัตราการไหล: G 3/4 นิ้ว, 6 m³/h
  • วัสดุซีล: EPDM
Gross weight 0.718 Kilogram
Net weight 0.656 Kilogram
Volume 1.295 Liter
EAN 5702423023790
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 40 °C
Ambient temperature max. [°F] 104 °F
Application Open
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 3/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 6.95 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.35 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 500 ms
Est. time to open, water [ms] 200 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 6 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Oil,Comp.Air,Vacuum
Media tolerance comments Neutral media
Water at max. 60°C/140 °F
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] 0 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] 32 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 18 mm
Orifice size fraction [in] 3/4 in
Packing format Multi pack
Parts Program name EV220B 6 - 22
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. f440c2c1-98fa-405b-9256-d9b24590a97e
SCIP dossier product name EV220B 6-22 brass NC - solenoid valve
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV220B 18B G 34F NC000
Type EV220B
Type designation EV220B 18
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • รุ่นซีรีส์: EV220B
  • รูปแบบการทำงาน: NC (Normally Closed)
  • ขนาดเกลียวเชื่อมต่อ: G 3/4 นิ้ว
  • อัตราการไหล (Kv): 6 m³/h
  • ประเภทวัสดุซีล: EPDM
