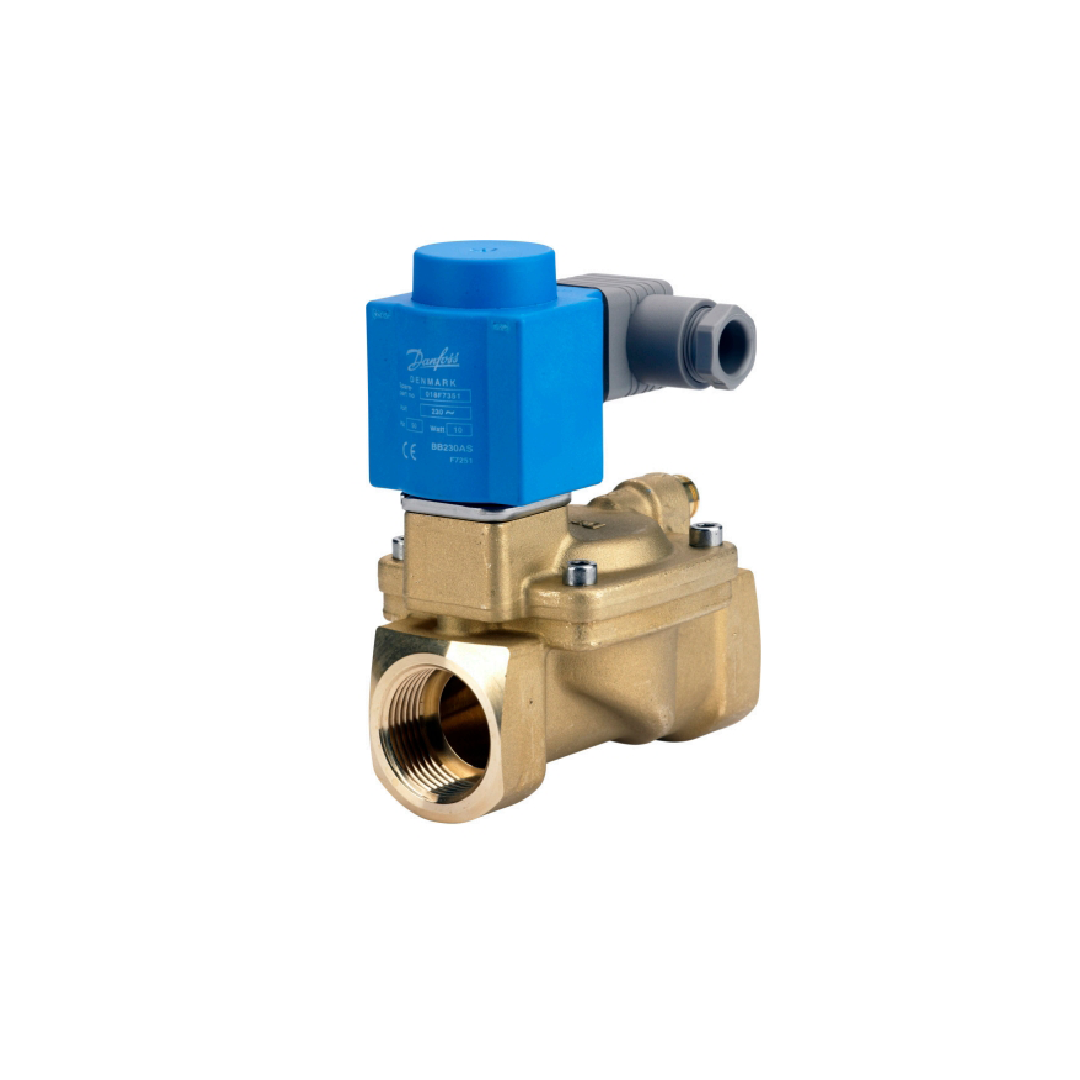

Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 4 m³/h, EPDM 032U451131

Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 4 m³/h, EPDM 032U451131

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 21,330.00 ฿
Regular price Sale price 21,330.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 4 m³/h, EPDM 032U451131

Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 4 m³/h, EPDM 032U451131 เพิ่มประสิทธิภาพให้ระบบอุตสาหกรรมด้วย โซลินอยด์วาล์ว Danfoss รุ่น EV220B รหัส 032U451131 ซึ่งเป็นวาล์วแบบเซอร์โว (Servo-operated) ที่ออกแบบมาเพื่อรองรับงานหนักโดยเฉพาะ วาล์วรุ่นนี้ใช้ฟังก์ชันปกติปิด (NC) ช่วยตัดการไหลทันทีเมื่อไม่มีไฟเลี้ยงเพื่อความปลอดภัย ติดตั้งเข้ากับระบบด้วยมาตรฐานเกลียว G 1/2 นิ้ว สามารถปล่อยผ่านอัตราการไหลได้ 4 ลูกบาศก์เมตรต่อชั่วโมง พร้อมใช้วัสดุซีล EPDM ที่มีคุณสมบัติทนทานต่อน้ำร้อนและไอน้ำแรงดันต่ำได้อย่างมีประสิทธิภาพ ช่วยยกระดับความปลอดภัยและมาตรฐานการควบคุมของเหลวตามแบบฉบับวิศวกรรมของ Danfoss

คุณสมบัติ

  • วาล์วแม่เหล็กไฟฟ้าโมเดล EV220B รหัส 032U451131
  • รูปแบบควบคุมสถานะ NC
  • เกลียวติดตั้งประเภท G ขนาด 1/2 นิ้ว
  • รองรับปริมาณการไหล 4 m³/h
  • ใช้วัสดุยางซีล EPDM ทนทานต่อการใช้งาน

ข้อมูลจำเพาะ

  • แบรนด์และรุ่น: Danfoss Solenoid Valve รุ่น EV220B (รหัส 032U451131)
  • สถานะการทำงาน: ปกติปิด (NC)
  • ขนาดจุดเชื่อมต่อ: เกลียว G ขนาด 1/2 นิ้ว
  • ความสามารถในการไหล: อัตรา 4 m³/h
  • ชนิดของซีล: EPDM
Gross weight 1.001 Kilogram
Net weight 0.974 Kilogram
Volume 0.88 Liter
EAN 5702423060474
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval CE
DNVGL-CG-0339
GL
PZH
Body material Brass
CE evaluated Yes
China RoHS compliance Out of scope
Coil type BB
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/2
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 4.6 gal/min
Differential pressure [bar] [max] 16 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 232 psi
Differential pressure [psi] [min] 4.35 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Electrical connection Spade DIN 43650-A
Enclosure rating IP IP65
Est. time to close, water [ms] 350 ms
Est. time to open, water [ms] 40 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Frequency [Hz] 50 Hz
Function NC
In scope of WEEE Yes
Kv value [m³/h] 4 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 24 bar
Max. test pressure [psig] 290 psig
Max. Working Pressure [bar] 16 bar
Max. Working Pressure [psig] 232 psig
Media recommendations Water & Brine
Media tolerance comments Neutral media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 15 mm
Orifice size fraction [in] 5/8 in
Packing format Multi pack
Parts Program name EV220B 15 - 50
Power consumption [W] 50Hz 12 W
Product accessories Solenoid coil accessories
Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. b8af40bc-3f7f-4177-bd55-c3503cccfc04
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 15B G 12E NC000 BB230A
Supply voltage 50Hz Max [V] 230 V
Supply voltage 50Hz Min [V] 220 V
Supply voltage [V] AC 230 V
Type EV220B
Type designation EV220B 15
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • แบรนด์และซีรีส์ผลิตภัณฑ์: Danfoss รุ่น EV220B (หมายเลขอ้างอิง 032U451131)
  • ฟังก์ชันการทำงาน: วาล์วประเภท NC (Normally Closed) หรือแบบปกติปิด
  • รูปแบบข้อต่อ: ชนิดเกลียวมาตรฐาน G ขนาด 1/2 นิ้ว
  • ประสิทธิภาพอัตราการไหล: รองรับปริมาตรการไหลที่ 4 m³/h
  • ชนิดวัสดุซีล: ซีลยาง EPDM สำหรับการป้องกันการรั่วซึม
