Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 2.5 m³/h, NBR 032U153831

Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 2.5 m³/h, NBR 032U153831

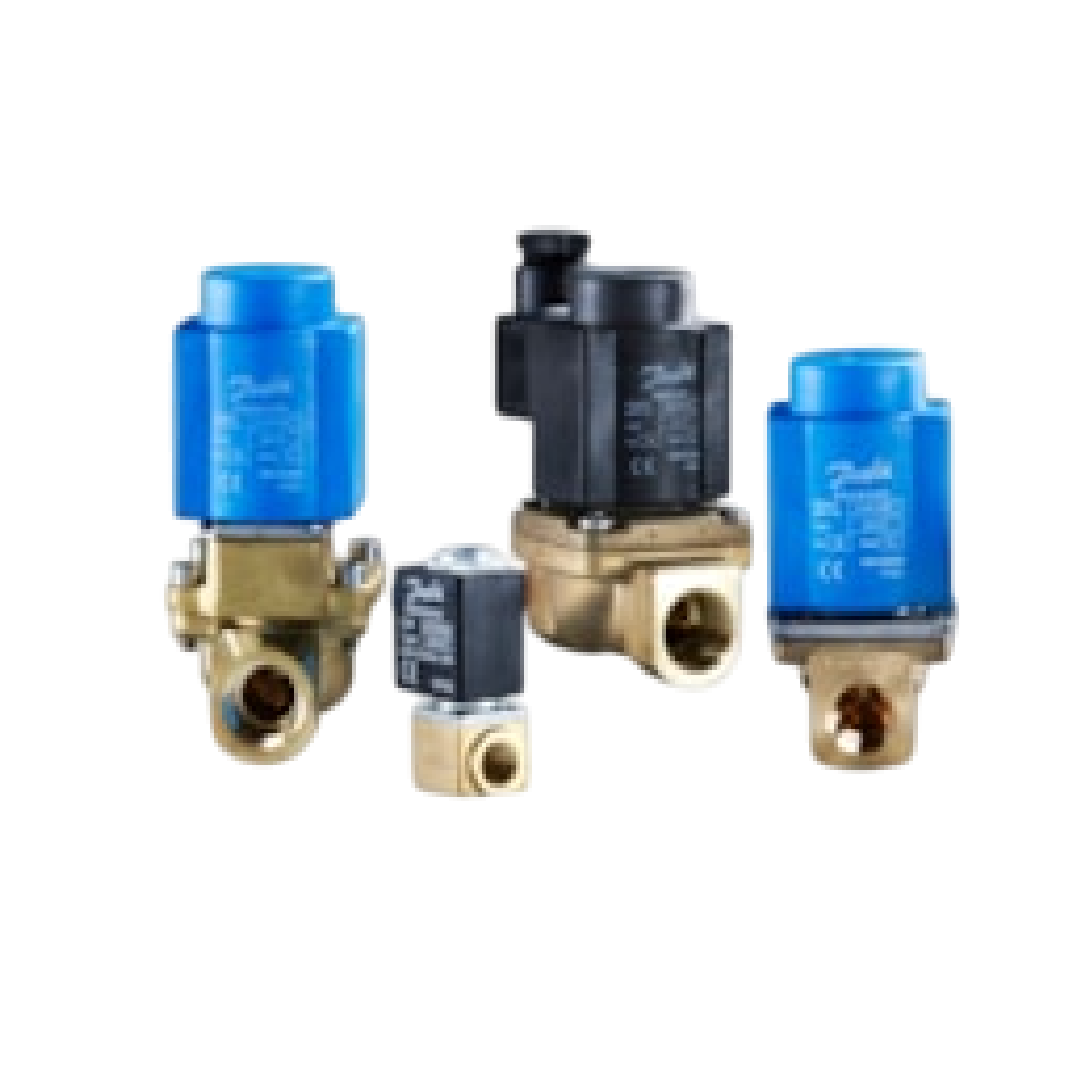

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 15,920.00 ฿
Regular price Sale price 15,920.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 2.5 m³/h, NBR 032U153831

เพิ่มประสิทธิภาพระบบส่งก๊าซและน้ำมันด้วยโซลินอยด์วาล์ว Danfoss EV220B รหัส 032U153831 ผลิตภัณฑ์เรือธงที่ได้รับความนิยมในระดับสากล ทำงานด้วยสถานะปกติปิด (NC) ที่สามารถปิดผนึกช่องทางได้อย่างแน่นหนาเมื่อไม่ได้สั่งการทำงาน จุดต่อขนาด G 1/2 นิ้ว ช่วยให้อัตราการไหลทะยานไปได้ถึง 2.5 ลูกบาศก์เมตรต่อชั่วโมง รุ่นนี้มีความโดดเด่นด้วยซีลยาง NBR ที่ขึ้นชื่อในเรื่องความทนทานต่อน้ำมันเชื้อเพลิงและไฮดรอลิก ช่วยเสริมความน่าเชื่อถือให้แก่ทุกกระบวนการในโรงงานที่ต้องการความแม่นยำสูง

คุณสมบัติ

  • โซลินอยด์วาล์วคุณภาพสูง Danfoss รุ่น EV220B
  • กลไกการทำงานรูปแบบ ปกติปิด (NC)
  • รองรับการเชื่อมต่อด้วยเกลียวขนาด G 1/2 นิ้ว
  • ประสิทธิภาพอัตราการไหลอยู่ที่ 2.5 m³/h
  • วัสดุซีลภายในเป็นชนิด NBR ทนทานต่องานอุตสาหกรรม

ข้อมูลจำเพาะ

  • ประเภท: โซลินอยด์วาล์ว Danfoss รุ่น EV220B
  • รหัสสินค้า: 032U153831
  • การทำงาน: NC
  • ขนาดเกลียวและอัตราการไหล: G 1/2 นิ้ว, 2.5 m³/h
  • วัสดุซีล: NBR
Gross weight 0.306 Kilogram
Net weight 0.285 Kilogram
Volume 0.253 Liter
EAN 5702423014354
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval DNVGL-CG-0339
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/2
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 1.16 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.1 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 1.45 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 300 ms
Est. time to open, water [ms] 50 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NO
In scope of WEEE Yes
Kv value [m³/h] 1 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Oil,Comp.Air,Vacuum
Media tolerance comments Neutral media
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] 0 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] 32 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 10 mm
Orifice size fraction [in] 3/8 in
Packing format Multi pack
Parts Program name EV220B 6 - 22
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 20 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. 77f45aa5-e4c6-4c8e-8a6f-38d910d5d18d
SCIP dossier product name EV220B 6-12 brass NO - solenoid valve
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV220B 10B G 12F NO000
Type EV220B
Type designation EV220B 10
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • รุ่นซีรีส์: EV220B
  • รูปแบบการทำงาน: NC (Normally Closed)
  • ขนาดเกลียวเชื่อมต่อ: G 1/2 นิ้ว
  • อัตราการไหล (Kv): 2.5 m³/h
  • ประเภทวัสดุซีล: NBR
