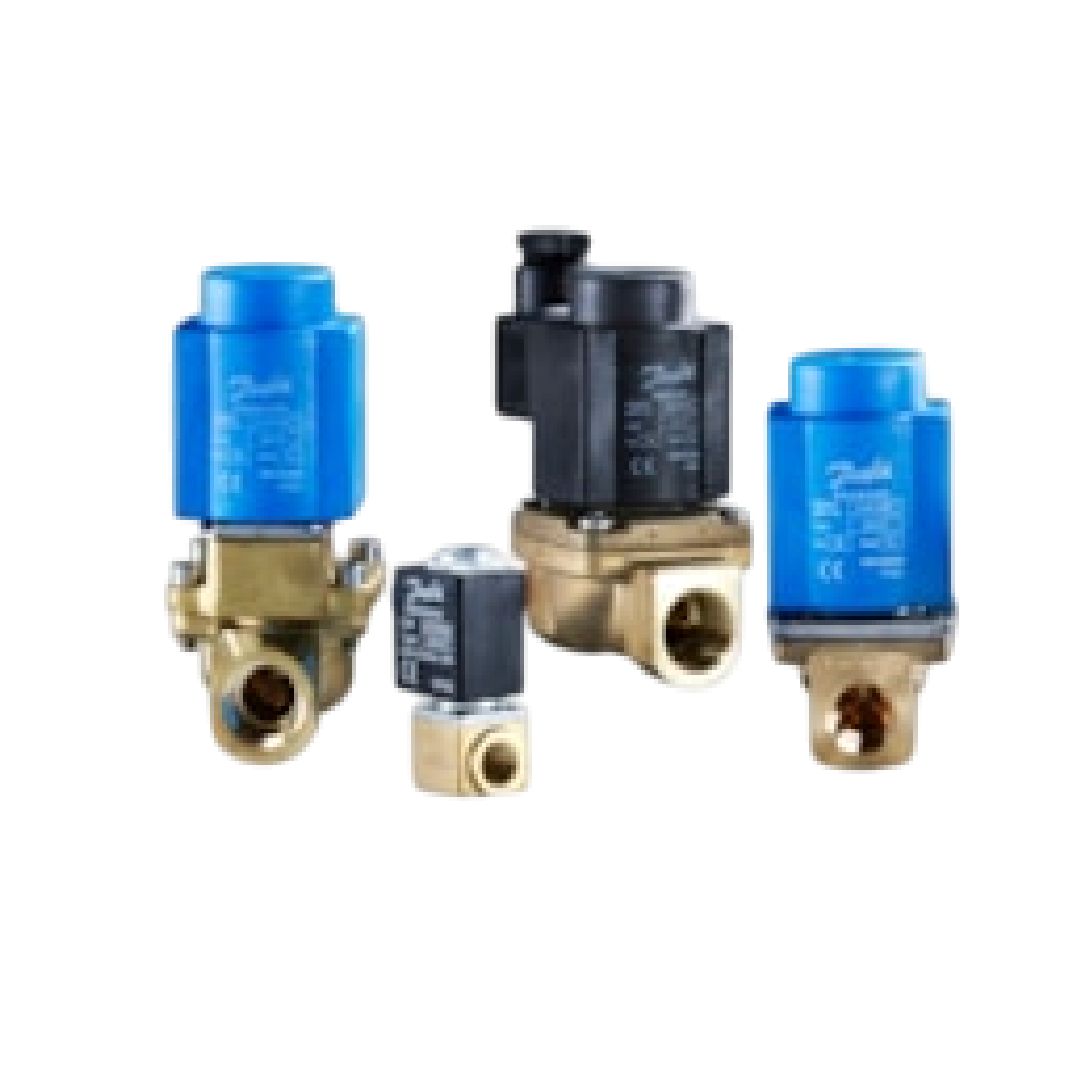

Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 2.1 m³/h, EPDM 032U1552

Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 2.1 m³/h, EPDM 032U1552

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 19,400.00 ฿
Regular price Sale price 19,400.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 2.1 m³/h, EPDM 032U1552

เสริมความแข็งแกร่งให้ระบบท่อด้วยวาล์วประสิทธิภาพสูง Danfoss โซลินอยด์วาล์ว รุ่น EV220B รหัส 032U1552 แบรนด์ที่มุ่งเน้นความเป็นเลิศทางวิศวกรรม ระบบกลไกปกติปิด (NC) มอบความปลอดภัยด้วยการกั้นสื่อกลางไม่ให้ผ่านเมื่อปิดเครื่องจักร เกลียว G 1/2 นิ้ว ถูกออกแบบมาเพื่ออำนวยความสะดวกในการติดตั้งและให้ผลลัพธ์อัตราการไหล 2.1 ลูกบาศก์เมตรต่อชั่วโมง ซีลตัวเก่งอย่าง EPDM ช่วยป้องกันปัญหาที่เกิดจากน้ำและไอน้ำได้อย่างชะงัด ช่วยให้การควบคุมทิศทางแรงดันเป็นไปอย่างราบรื่นตลอดอายุการใช้งาน

คุณสมบัติ

  • โซลินอยด์วาล์วคุณภาพสูง Danfoss รุ่น EV220B
  • กลไกการทำงานรูปแบบ ปกติปิด (NC)
  • รองรับการเชื่อมต่อด้วยเกลียวขนาด G 1/2 นิ้ว
  • ประสิทธิภาพอัตราการไหลอยู่ที่ 2.1 m³/h
  • วัสดุซีลภายในเป็นชนิด EPDM ทนทานต่องานอุตสาหกรรม

ข้อมูลจำเพาะ

  • ประเภท: โซลินอยด์วาล์ว Danfoss รุ่น EV220B
  • รหัสสินค้า: 032U1552
  • การทำงาน: NC
  • ขนาดเกลียวและอัตราการไหล: G 1/2 นิ้ว, 2.1 m³/h
  • วัสดุซีล: EPDM
Gross weight 0.31 Kilogram
Net weight 0.293 Kilogram
Volume 0.253 Liter
EAN 5702423015740
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval DNVGL-CG-0339
GL
PZH
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/2
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 1.75 gal/min
Differential pressure [bar] [max] 20 bar
Differential pressure [bar] [min] 0.1 bar
Differential pressure [psi] [max] 290 psi
Differential pressure [psi] [min] 1.45 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 300 ms
Est. time to open, water [ms] 50 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
Identical product 032U2251
In scope of WEEE Yes
Kv value [m³/h] 1.5 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 30 bar
Max. test pressure [psig] 435 psig
Max. Working Pressure [bar] 20 bar
Max. Working Pressure [psig] 290 psig
Media recommendations Water & Brine
Media tolerance comments Neutral media
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 10 mm
Orifice size fraction [in] 3/8 in
Packing format Multi pack
Parts Program name EV220B 6 - 22
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 20 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. f440c2c1-98fa-405b-9256-d9b24590a97e
SCIP dossier product name EV220B 6-22 brass NC - solenoid valve
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 10B G 12E NC000
Type EV220B
Type designation EV220B 10
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • รุ่นซีรีส์: EV220B
  • รูปแบบการทำงาน: NC (Normally Closed)
  • ขนาดเกลียวเชื่อมต่อ: G 1/2 นิ้ว
  • อัตราการไหล (Kv): 2.1 m³/h
  • ประเภทวัสดุซีล: EPDM
