Danfoss Solenoid valve, EV212B, Function: NC, G, 1/4, 0.3 m³/h, FKM 032U1781

Danfoss Solenoid valve, EV212B, Function: NC, G, 1/4, 0.3 m³/h, FKM 032U1781

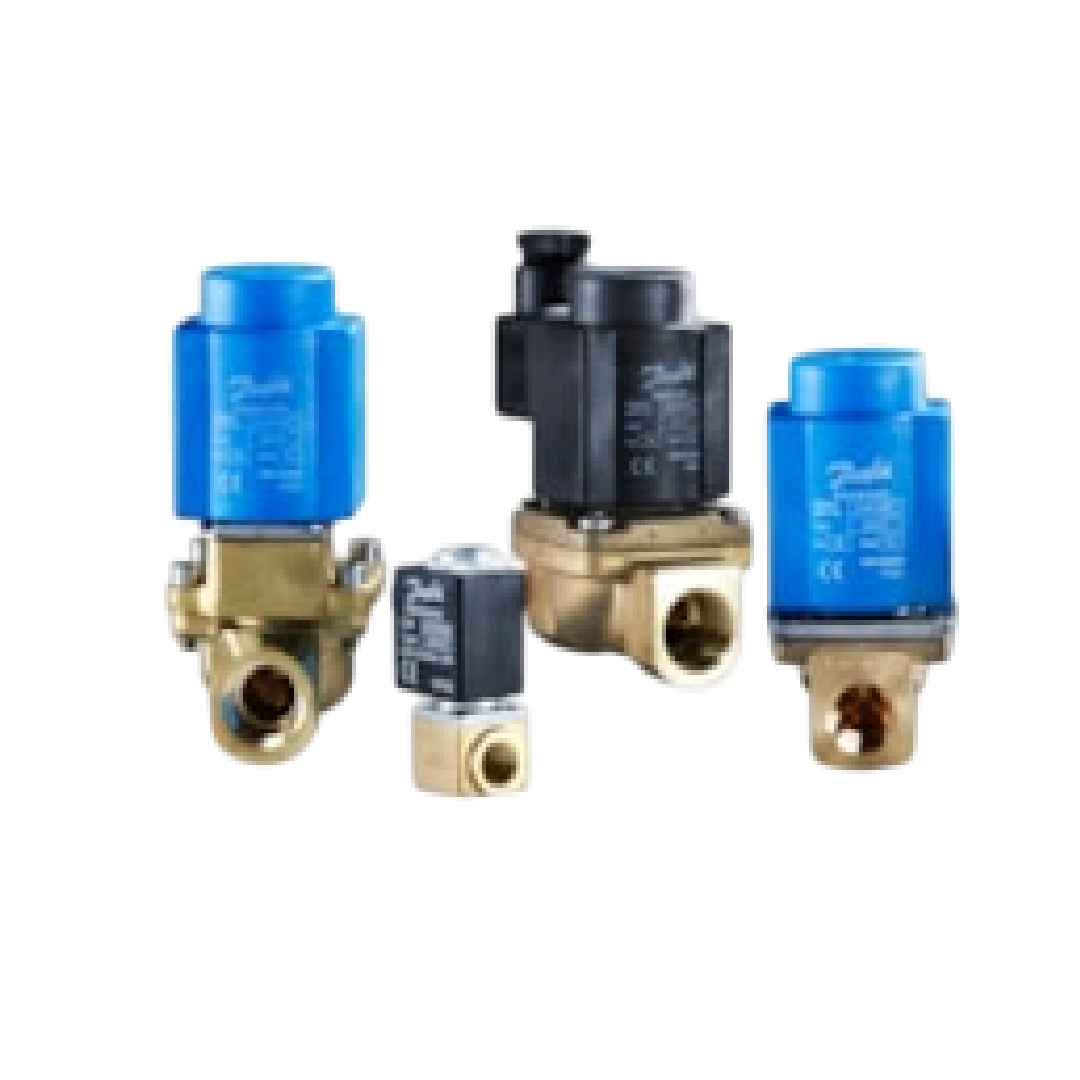

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 18,530.00 ฿
Regular price Sale price 18,530.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV212B, Function: NC, G, 1/4, 0.3 m³/h, FKM 032U1781

รับประกันการตอบสนองที่ฉับไวด้วยโซลินอยด์วาล์ว Danfoss รุ่น EV212B รหัส 032U1781 ผลิตภัณฑ์สุดล้ำที่ออกแบบกลไกให้ตอบรับสัญญาณได้ในเสี้ยววินาที ระบบการทำงานปกติปิด (NC) ควบคุมกระแสการไหลให้หยุดสนิทเมื่อปราศจากการจ่ายไฟ เชื่อมต่อระบบผ่านเกลียวมาตรฐาน G 1/4 นิ้ว ให้อัตราการไหล 0.3 ลูกบาศก์เมตรต่อชั่วโมงอย่างสม่ำเสมอ ผสมผสานขีดความสามารถของวัสดุซีล FKM ที่ยอดเยี่ยมในการจัดการกับอุณหภูมิที่ผันผวนและน้ำมันอุตสาหกรรม เป็นขุมพลังชิ้นเล็กที่ช่วยรักษาสมดุลของระบบได้อย่างเหลือเชื่อ

คุณสมบัติ

  • โซลินอยด์วาล์วคุณภาพสูง Danfoss รุ่น EV212B
  • กลไกการทำงานรูปแบบ ปกติปิด (NC)
  • รองรับการเชื่อมต่อด้วยเกลียวขนาด G 1/4 นิ้ว
  • ประสิทธิภาพอัตราการไหลอยู่ที่ 0.3 m³/h
  • วัสดุซีลภายในเป็นชนิด FKM ทนทานต่องานอุตสาหกรรม

ข้อมูลจำเพาะ

  • ประเภท: โซลินอยด์วาล์ว Danfoss รุ่น EV212B
  • รหัสสินค้า: 032U1781
  • การทำงาน: NC
  • ขนาดเกลียวและอัตราการไหล: G 1/4 นิ้ว, 0.3 m³/h
  • วัสดุซีล: FKM
Gross weight 0.312 Kilogram
Net weight 0.293 Kilogram
Volume 0.253 Liter
EAN 5702423005741
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval DNVGL-CG-0339
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/2
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 1.75 gal/min
Differential pressure [bar] [max] 20 bar
Differential pressure [bar] [min] 0.1 bar
Differential pressure [psi] [max] 290 psi
Differential pressure [psi] [min] 1.45 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 300 ms
Est. time to open, water [ms] 50 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 1.5 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 30 bar
Max. test pressure [psig] 435 psig
Max. Working Pressure [bar] 20 bar
Max. Working Pressure [psig] 290 psig
Media recommendations Oil,Comp.Air,Vacuum
Media tolerance comments Neutral media
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] 0 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] 32 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 10 mm
Orifice size fraction [in] 3/8 in
Packing format Multi pack
Parts Program name EV220B 6 - 22
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 20 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. f440c2c1-98fa-405b-9256-d9b24590a97e
SCIP dossier product name EV220B 6-22 brass NC - solenoid valve
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV220B 10B G 12F NC000
Type EV220B
Type designation EV220B 10
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • รุ่นซีรีส์: EV212B
  • รูปแบบการทำงาน: NC (Normally Closed)
  • ขนาดเกลียวเชื่อมต่อ: G 1/4 นิ้ว
  • อัตราการไหล (Kv): 0.3 m³/h
  • ประเภทวัสดุซีล: FKM
