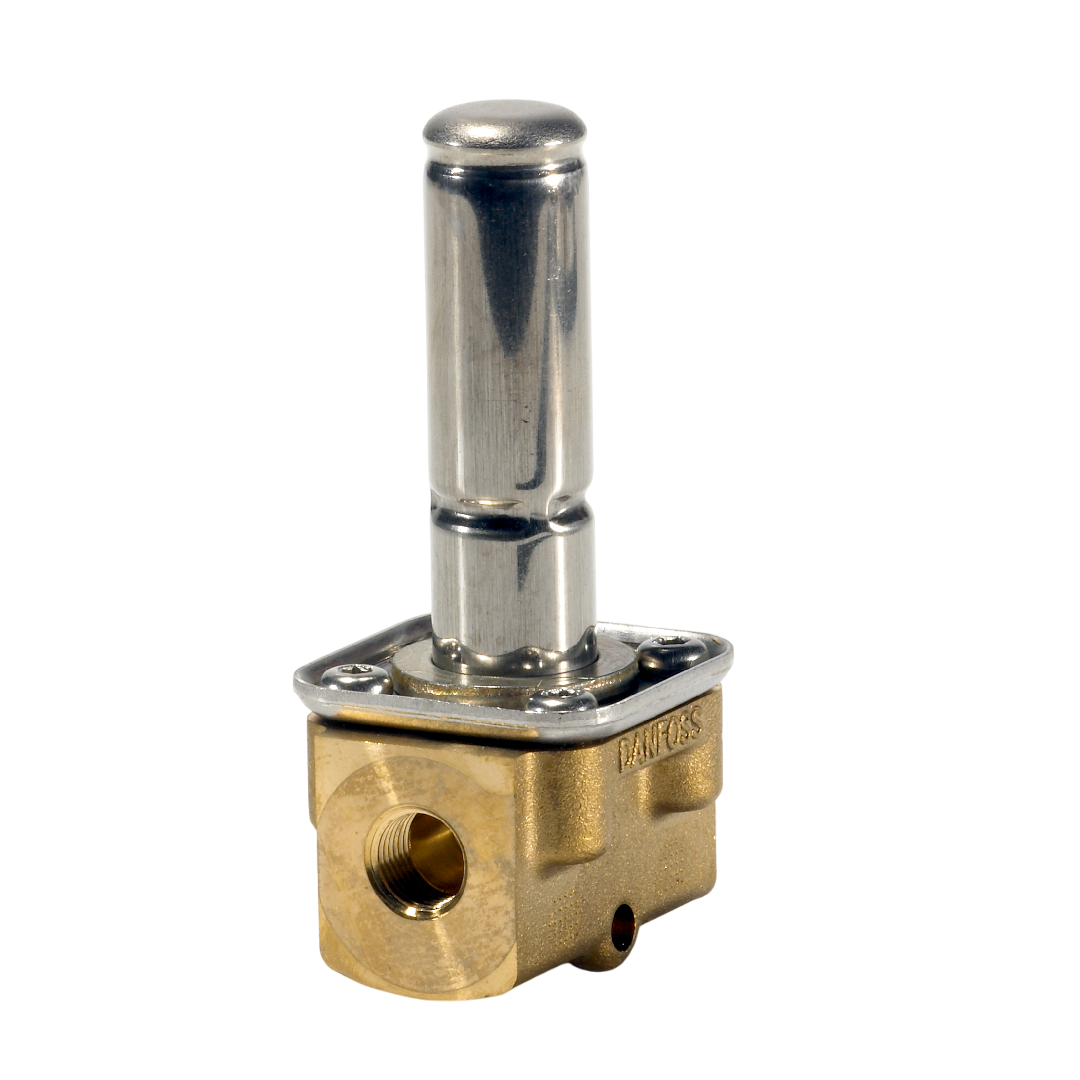

Danfoss Solenoid valve, EV210B, Function: NO, G, 1/8, 0.08 m³/h, EPDM 032U3630

Danfoss Solenoid valve, EV210B, Function: NO, G, 1/8, 0.08 m³/h, EPDM 032U3630

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 15,130.00 ฿
Regular price Sale price 15,130.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV210B, Function: NO, G, 1/8, 0.08 m³/h, EPDM 032U3630

อัปเกรดระบบไหลเวียนของคุณด้วยประสิทธิภาพที่พิสูจน์แล้วจากโซลินอยด์วาล์ว Danfoss EV210B รหัส 032U3630 ที่ได้รับการออกแบบตามหลักวิศวกรรมเดนมาร์ก อุปกรณ์ชิ้นนี้มีฟังก์ชันแบบปกติเปิด (NO) ให้การตอบสนองที่รวดเร็วและเปิดทางให้ของเหลวไหลได้อย่างสม่ำเสมอ ออกแบบให้มีขนาดเกลียว G 1/8 นิ้ว และควบคุมทราฟฟิกของสื่อกลางที่ 0.08 ลูกบาศก์เมตรต่อชั่วโมง ชูจุดเด่นด้วยการประยุกต์ใช้ซีล EPDM ที่ให้ความทนทานต่อระบบน้ำเป็นเลิศ ช่วยป้องกันปัญหาการเสื่อมสภาพก่อนเวลาอันควรและทำให้การควบคุมเป็นไปอย่างราบรื่น

คุณสมบัติ

  • โซลินอยด์วาล์วคุณภาพสูง Danfoss รุ่น EV210B
  • กลไกการทำงานรูปแบบ ปกติเปิด (NO)
  • รองรับการเชื่อมต่อด้วยเกลียวขนาด G 1/8 นิ้ว
  • ประสิทธิภาพอัตราการไหลอยู่ที่ 0.08 m³/h
  • วัสดุซีลภายในเป็นชนิด EPDM ทนทานต่องานอุตสาหกรรม

ข้อมูลจำเพาะ

  • ประเภท: โซลินอยด์วาล์ว Danfoss รุ่น EV210B
  • รหัสสินค้า: 032U3630
  • การทำงาน: NO
  • ขนาดเกลียวและอัตราการไหล: G 1/8 นิ้ว, 0.08 m³/h
  • วัสดุซีล: EPDM
Gross weight 0.188 Kilogram
Net weight 0.177 Kilogram
Volume 0.253 Liter
EAN 5702423179411
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Closed and Drain
Approval DNVGL-CG-0339
PZH
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/8
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 0.09 gal/min
Differential pressure [bar] [max] 30 bar
Differential pressure [bar] [min] 0 bar
Differential pressure [psi] [max] 435 psi
Differential pressure [psi] [min] 0 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 20 ms
Est. time to open, water [ms] 20 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NO
In scope of WEEE Yes
Kv value [m³/h] 0.08 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 45 bar
Max. test pressure [psig] 653 psig
Max. Working Pressure [bar] 30 bar
Max. Working Pressure [psig] 435 psig
Media recommendations Water & Brine
Media tolerance comments 140 °C/3.6 bar low press steam
Neutral media
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Operation Direct-operated
Orifice size [mm] 1.5 mm
Orifice size fraction [in] 1/16 in
Packing format Multi pack
Parts Program name EV210B
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 20 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. eb4cbd6b-085c-4899-b884-eea5016148b5
SCIP dossier product name EV210B brass NO - solenoid valve
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV210B 1.5B G 18E NO000
Type EV210B
Type designation EV210B 1.5
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • รุ่นซีรีส์: EV210B
  • รูปแบบการทำงาน: NO (Normally Open)
  • ขนาดเกลียวเชื่อมต่อ: G 1/8 นิ้ว
  • อัตราการไหล (Kv): 0.08 m³/h
  • ประเภทวัสดุซีล: EPDM
