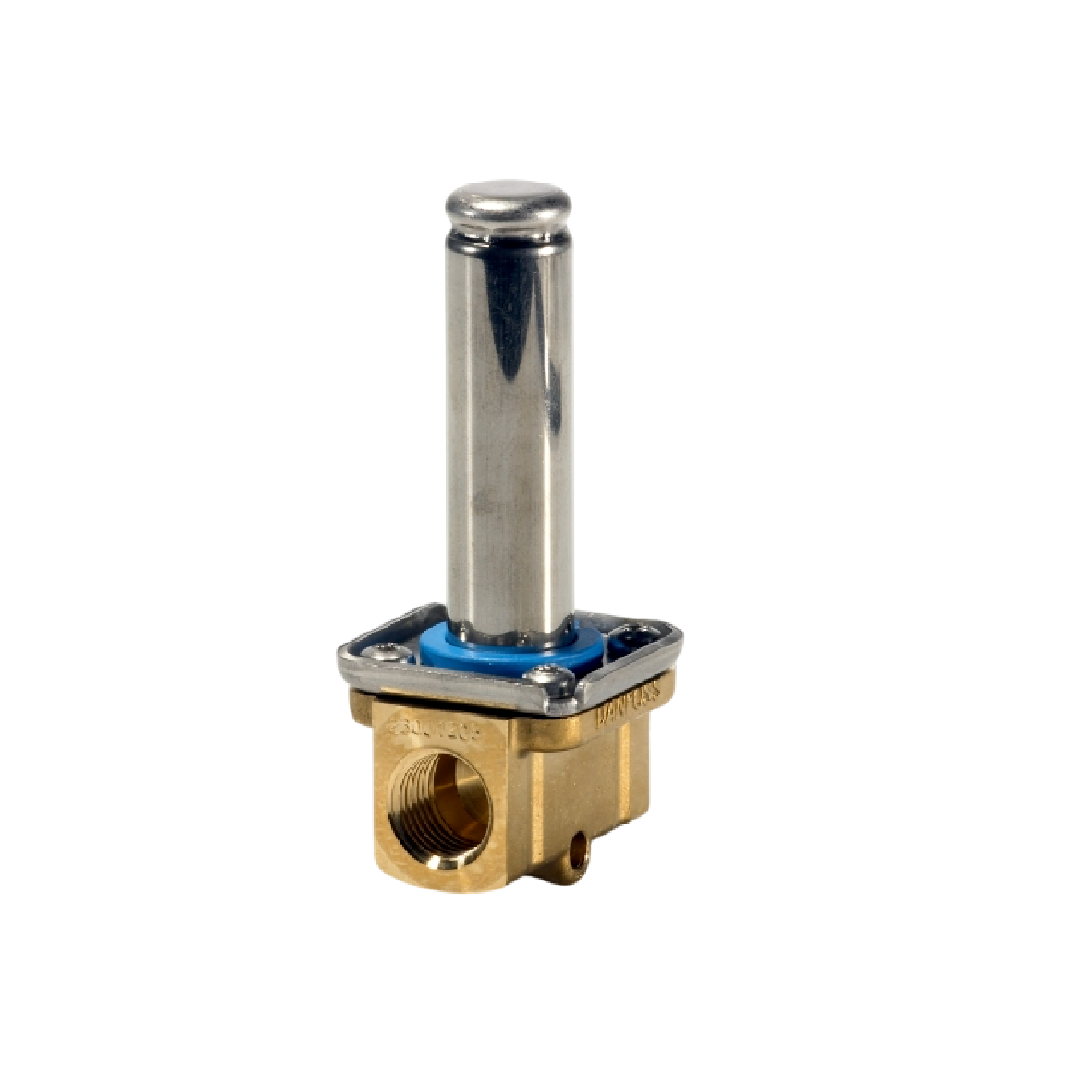

Danfoss Solenoid valve, EV210B, Function: NC, NPT, 1/4, 0.3 m³/h, FKM 032U6505

Danfoss Solenoid valve, EV210B, Function: NC, NPT, 1/4, 0.3 m³/h, FKM 032U6505

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 13,280.00 ฿
Regular price Sale price 13,280.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV210B, Function: NC, NPT, 1/4, 0.3 m³/h, FKM 032U6505

วาล์วแม่เหล็กไฟฟ้า Danfoss รหัสสินค้า 032U6505 ซีรีส์ EV210B ทางเลือกเพื่อการควบคุมระบบท่อลูปปิดที่ต้องการความตอบสนองฉับไว ใช้รูปแบบการทำงาน ปกติปิด (NC) โดยเน้นความปลอดภัยเป็นหลัก วาล์วจะกั้นสารเคมีหรือน้ำมันทันทีที่ไม่มีไฟ ตัววาล์วเชื่อมต่อเข้ากับเกลียว NPT ขนาด 1/4 นิ้ว รองรับอัตราการไหล 0.3 m³/h เลือกใช้ซีล FKM ทนอุณหภูมิสูงและของเหลวกัดกร่อน ความพิเศษของรุ่นนี้คือกลไก Direct-operated ที่ทำงานได้แม้ความต่างแรงดันเป็นศูนย์ ตอบสนองสัญญาณไฟฟ้าได้ทันทีและให้ความแม่นยำสูงลิบสำหรับการควบคุมแบบละเอียด

คุณสมบัติ

  • วาล์วอุตสาหกรรม Danfoss ซีรีส์ EV210B ออกแบบมาเพื่อประสิทธิภาพขั้นสูง
  • กลไกแบบ NC (ปกติปิด) ป้องกันการรั่วไหลได้อย่างมั่นใจ
  • ใช้เกลียวมาตรฐาน NPT ขนาดความกว้าง 1/4 นิ้ว ป้องกันการรั่วซึมได้ดี
  • ขีดความสามารถในการควบคุมปริมาณการไหลระดับ 0.3 m³/h
  • ใช้ซีลกันรั่วชนิด FKM ที่ออกแบบมาเพื่อทนต่ออุณหภูมิสูงได้ดี

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U6505
  • รุ่นและระบบการทำงาน: EV210B แบบ NC (Normally Closed)
  • ประเภทและขนาดเกลียว: NPT 1/4 นิ้ว
  • อัตราการไหล: 0.3 m³/h
  • วัสดุซีล: FKM
Gross weight 0.242 Kilogram
Net weight 0.219 Kilogram
Volume 0.253 Liter
EAN 5702423031962
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Closed and Drain
Approval DNVGL-CG-0339
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/4
Connection standard ANSI/ASME B1.20.1
Connection type NPT
Contain batteries No
Cv value [gal/min] 0.35 gal/min
Differential pressure [bar] [max] 19.58 bar
Differential pressure [bar] [min] 0 bar
Differential pressure [psi] [max] 284 psi
Differential pressure [psi] [min] 0 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 20 ms
Est. time to open, water [ms] 20 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 0.3 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 50 bar
Max. test pressure [psig] 725 psig
Max. Working Pressure [bar] 34.5 bar
Max. Working Pressure [psig] 500 psig
Media recommendations Oil,Comp.Air,Vacuum
Media tolerance comments Neutral media
Medium temperature range [°C] [max] 90 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 194 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 2/2
Operation Direct-operated
Orifice size [mm] 3 mm
Orifice size fraction [in] 1/8 in
Packing format Multi pack
Parts Program name EV210B
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 20 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. f39c9b5f-71a1-49e3-bc6d-20baa8f46870
SCIP dossier product name EV210B brass NC - solenoid valve
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV210B 3B N 14F NC000
Type EV210B
Type designation EV210B 3
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์โมเดล: EV210B
  • สถานะการทำงาน: ปกติปิด (NC)
  • ประเภทและขนาดเกลียว: NPT 1/4 นิ้ว
  • อัตราการไหล (Kv): 0.3 m³/h
  • วัสดุซีล: FKM
