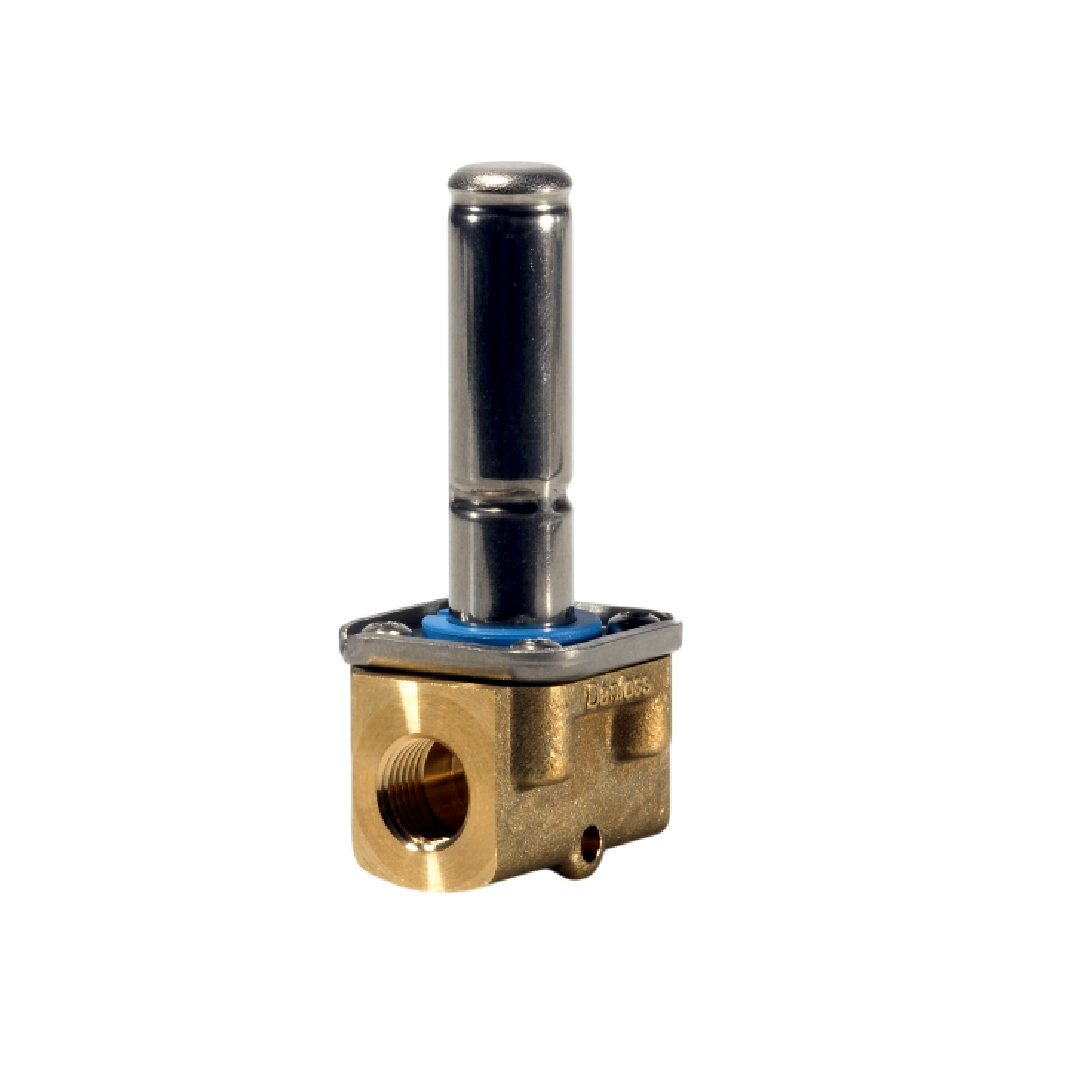

Danfoss Solenoid valve, EV210B, Function: NC, G, 3/8, 0.3 m³/h, NBR 032U1225

Danfoss Solenoid valve, EV210B, Function: NC, G, 3/8, 0.3 m³/h, NBR 032U1225

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 29,110.00 ฿
Regular price Sale price 29,110.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV210B, Function: NC, G, 3/8, 0.3 m³/h, NBR 032U1225

วาล์วควบคุมแบบแม่เหล็กไฟฟ้าจาก Danfoss รุ่น EV210B รหัส 032U1225 โดดเด่นด้วยการตอบสนองที่รวดเร็วในระบบอุตสาหกรรม วาล์วตั้งค่าพื้นฐานแบบปกติปิด (NC) จะควบคุมของไหลไม่ให้เล็ดลอดจนกว่าจะมีการสั่งงานด้วยไฟฟ้า มาพร้อมกับขนาดเกลียว G 3/8 นิ้ว รองรับอัตราการไหล 0.3 ลูกบาศก์เมตรต่อชั่วโมง รุ่นนี้เลือกใช้ซีลประเภท NBR ซึ่งทนต่อการเสียดสี น้ำมันหล่อลื่น และการสึกหรอจากการใช้งานทั่วไปได้อย่างดีเยี่ยม แบรนด์ชั้นนำระดับโลกอย่างเดนฟอสใส่ใจในทุกรายละเอียดการผลิต เพื่อให้มั่นใจว่าอุปกรณ์สามารถทนต่อแรงดันสูงและยืดระยะเวลาการซ่อมบำรุงให้นานที่สุด

คุณสมบัติ

  • ตระกูล EV210B สถานะทำงานเป็นปกติปิด (NC) ระงับการจ่ายเมื่อไฟดับ
  • ขนาดทางเชื่อมต่อ G 3/8 นิ้ว มีความสมบุกสมบัน เหมาะสำหรับงานโครงสร้าง
  • รองรับอัตราการหมุนเวียน 0.3 m³/h ช่วยควบคุมจังหวะการจ่ายของไหล
  • มาพร้อมยางซีล NBR ที่มีความเหนียว ทนทานต่อน้ำมันเครื่องและลมได้ดี
  • บำรุงรักษาง่าย โครงสร้างถอดประกอบเพื่อทำความสะอาดได้สะดวก

ข้อมูลจำเพาะ

  • รหัสสินค้า 032U1225 รุ่น EV210B ขนาดเกลียว G 3/8 นิ้ว อัตราการไหล 0.3 ลูกบาศก์เมตรต่อชั่วโมง ซีล NBR แบบ NC
  • วาล์วควบคุมทิศทางลมและน้ำมันขนาด G 3/8 นิ้ว แบบปกติปิด
  • ซีล NBR ทนทานต่อน้ำมันและไขมัน ช่วยป้องกันการรั่วซึมอย่างมีประสิทธิภาพ
  • โครงสร้างกะทัดรัด น้ำหนักเบา ทนแรงดันใช้งานในระบบลมมาตรฐาน
  • รองรับการทำงานรอบสูงด้วยคอยล์ไฟฟ้าประสิทธิภาพสูงจาก Danfoss
Gross weight 0.064 Kilogram
Net weight 0.052 Kilogram
Volume 0.113 Liter
EAN 5702423050864
Actuator A
Actuator size 9 mm
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Closed and Drain
Body material Brass
China RoHS compliance Out of scope
Connection material Brass
Connection size [mm] 22 mm
Connection type Flange
Contain batteries No
Cv value [gal/min] 0.13 gal/min
Differential pressure [bar] [max] 30 bar
Differential pressure [bar] [min] 0 bar
Differential pressure [psi] [max] 435 psi
Differential pressure [psi] [min] 0 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 10 ms
Est. time to open, water [ms] 10 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Engraved 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 0.11 m³/h
Max media viscosity [cSt] 20 cSt
Max. test pressure [bar] 50 bar
Max. test pressure [psig] 725 psig
Max. Working Pressure [bar] 50 bar
Max. Working Pressure [psig] 725 psig
Media recommendations Oil,Comp.Air,Vacuum
Media tolerance comments Neutral media
Medium temperature range [°C] [max] 90 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 194 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 2/2
Operation Direct-operated
Orifice size [mm] 2 mm
Orifice size fraction [in] 5/64 in
Packing format Multi pack
Parts Program name EV210A
Product accessories Flanges
Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 16 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. 6bc3fec0-8115-484f-a3e7-a47e8f714a69
SCIP dossier product name EV210A B - solenoid valve
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV210A 2B FL22 F NC000
Type EV210A
Type designation EV210A 2
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์ผลิตภัณฑ์: EV210B
  • ฟังก์ชันการทำงาน: ปกติปิด (Normally Closed)
  • ขนาดจุดเชื่อมต่อ: เกลียว G ขนาด 3/8 นิ้ว
  • อัตราการไหลสูงสุด (Kv): 0.3 m³/h
  • วัสดุซีลวาล์ว: NBR
