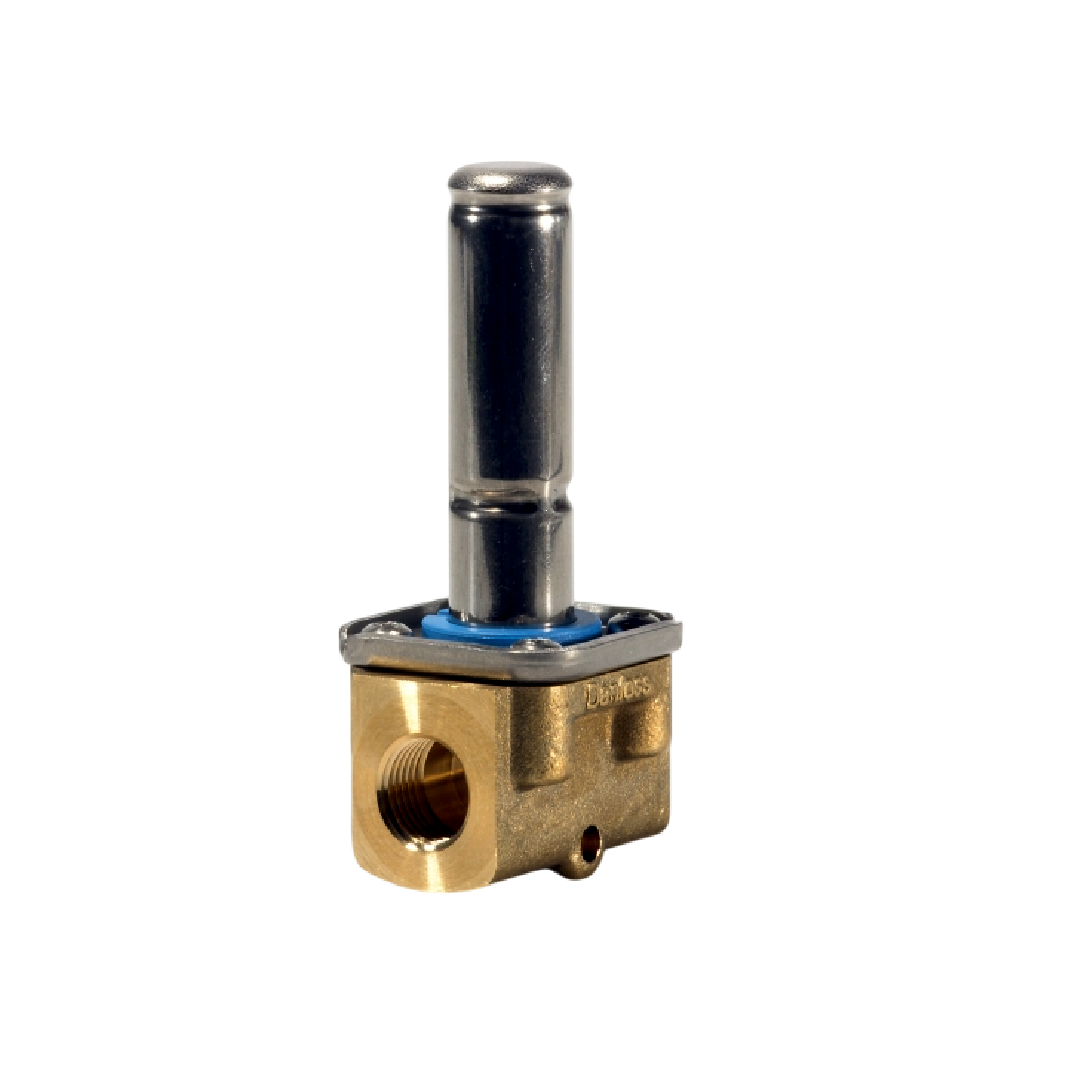

Danfoss Solenoid valve, EV210B, Function: NC, G, 1/8, 0.15 m³/h, NBR 032U1210

Danfoss Solenoid valve, EV210B, Function: NC, G, 1/8, 0.15 m³/h, NBR 032U1210

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 18,530.00 ฿
Regular price Sale price 18,530.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV210B, Function: NC, G, 1/8, 0.15 m³/h, NBR 032U1210

วาล์วแม่เหล็กไฟฟ้า Danfoss ซีรีส์ EV210B รหัส 032U1210 นำเสนอการประยุกต์ใช้งานในระบบลมและน้ำได้อย่างคล่องตัว ด้วยการทำงานแบบปกติปิด (NC) วาล์วจะเปิดช่องเมื่อจ่ายไฟ ช่วยรักษาระดับแรงดันภายในระบบ มาพร้อมเกลียวเชื่อมต่อขนาดกะทัดรัด G 1/8 นิ้ว และรองรับอัตราการไหล 0.15 ลูกบาศก์เมตรต่อชั่วโมง ชิ้นส่วนซีล NBR ทำหน้าที่ป้องกันการรั่วซึมของลม น้ำ และน้ำมันได้อย่างยอดเยี่ยม เทคโนโลยีของเดนฟอสไม่เพียงแต่เน้นความทนทาน แต่ยังออกแบบรูปทรงวาล์วให้ประหยัดพื้นที่ ติดตั้งเข้ากับตู้คอนโทรลได้ง่าย และยกระดับการตอบสนองของระบบได้ทันที

คุณสมบัติ

  • อุปกรณ์รหัส EV210B ฟังก์ชันควบคุมปิด (NC) ยุติการไหลทันทีเมื่อตัดกระแส
  • ขนาดเกลียวเพียง G 1/8 นิ้ว เหมาะกับระบบนิวเมติกส์หรือระบบจ่ายของเหลวขนาดเล็ก
  • ความเร็วในการไหล 0.15 m³/h สร้างความเที่ยงตรงให้กับการผสมสารหรือเติมน้ำ
  • ซีล NBR ให้ความคุ้มค่าและทนทานต่ออุณหภูมิปกติ รวมถึงน้ำมันหล่อลื่น
  • ตอบสนองการสั่งการรวดเร็ว ไม่ทำให้กระบวนการทำงานเกิดความหน่วง

ข้อมูลจำเพาะ

  • รหัสสินค้า 032U1210 รุ่น EV210B ขนาดเกลียว G 1/8 นิ้ว อัตราการไหล 0.15 ลูกบาศก์เมตรต่อชั่วโมง ซีล NBR แบบ NC
  • โซลินอยด์วาล์วขนาดเล็กจิ๋ว สำหรับงานควบคุมลมอัดและของเหลวปริมาณน้อย
  • ซีล NBR ทนทานต่อน้ำมันและลม ป้องกันการรั่วซึมในระบบนิวเมติกส์
  • ตัวเรือนทองเหลืองแข็งแรง ทนแรงดันและแรงสั่นสะเทือนในเครื่องจักร
  • ติดตั้งและเปลี่ยนทดแทนได้ง่ายในพื้นที่จำกัด
Gross weight 0.132 Kilogram
Net weight 0.126 Kilogram
Volume 0.113 Liter
EAN 5702423051540
Actuator A
Actuator size 9 mm
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Closed and Drain
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/8
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 0.07 gal/min
Differential pressure [bar] [max] 30 bar
Differential pressure [bar] [min] 0 bar
Differential pressure [psi] [max] 435 psi
Differential pressure [psi] [min] 0 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 10 ms
Est. time to open, water [ms] 10 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Engraved 1-way arrow
Fluid Group 1
Function NO
In scope of WEEE Yes
Kv value [m³/h] 0.06 m³/h
Max media viscosity [cSt] 20 cSt
Max. test pressure [bar] 50 bar
Max. test pressure [psig] 725 psig
Max. Working Pressure [bar] 50 bar
Max. Working Pressure [psig] 725 psig
Media recommendations Oil,Comp.Air,Vacuum
Media tolerance comments Neutral media
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 2/2
Operation Direct-operated
Orifice size [mm] 1.5 mm
Orifice size fraction [in] 1/16 in
Packing format Multi pack
Parts Program name EV210A
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 16 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. 6bc3fec0-8115-484f-a3e7-a47e8f714a69
SCIP dossier product name EV210A B - solenoid valve
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV210A 1.5B G 18F NO000
Type EV210A
Type designation EV210A 1.5
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์ผลิตภัณฑ์: EV210B
  • ฟังก์ชันการทำงาน: ปกติปิด (Normally Closed)
  • ขนาดจุดเชื่อมต่อ: เกลียว G ขนาด 1/8 นิ้ว
  • อัตราการไหลสูงสุด (Kv): 0.15 m³/h
  • วัสดุซีลวาล์ว: NBR
