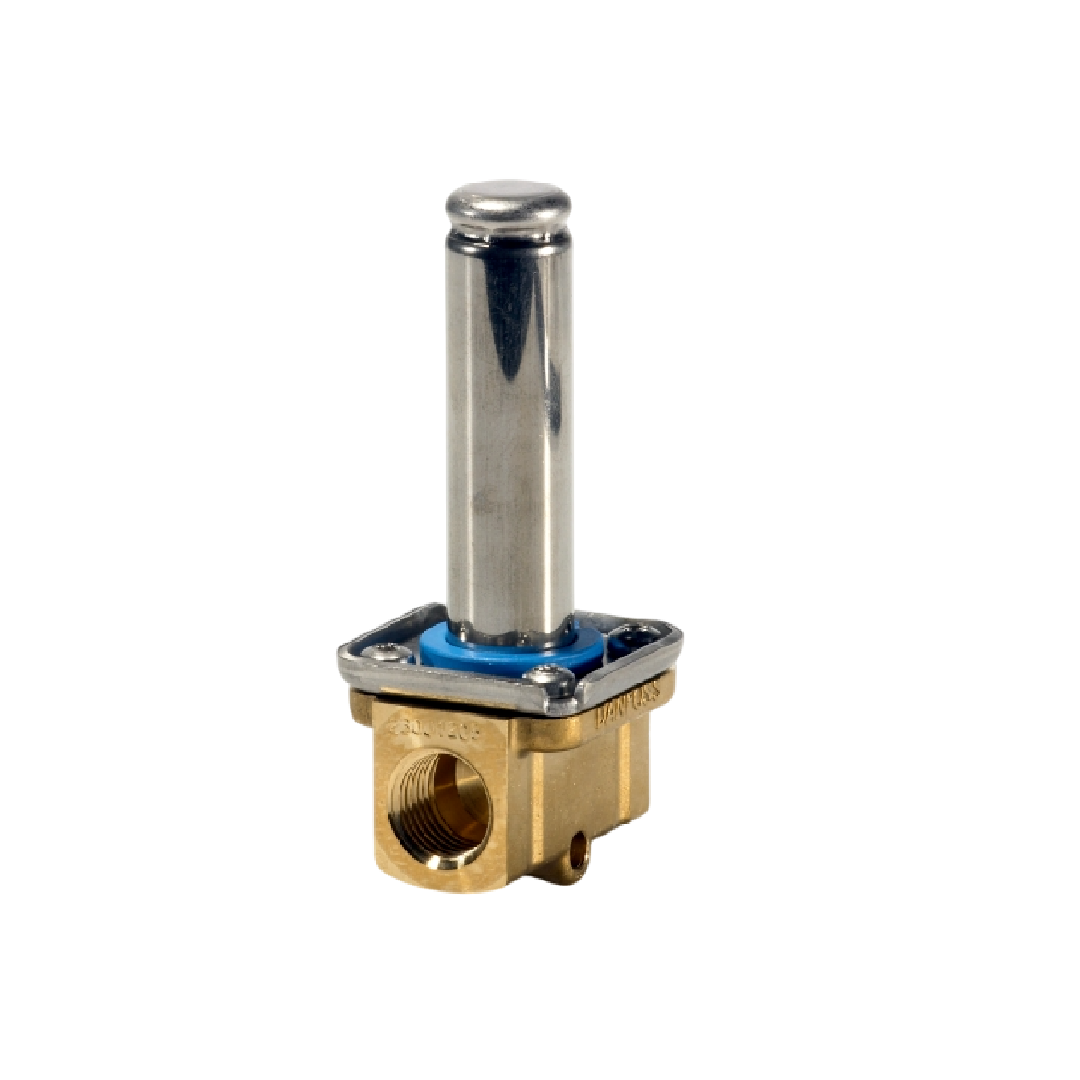

Danfoss Solenoid valve, EV210B, Function: NC, G, 1/4, 0.3 m³/h, PTFE 032U1232

Danfoss Solenoid valve, EV210B, Function: NC, G, 1/4, 0.3 m³/h, PTFE 032U1232

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 16,000.00 ฿
Regular price Sale price 16,000.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV210B, Function: NC, G, 1/4, 0.3 m³/h, PTFE 032U1232

สัมผัสนวัตกรรมการควบคุมสารเคมีด้วยโซลินอยด์วาล์ว Danfoss รุ่น EV210B รหัส 032U1232 วาล์วแบบทำงานโดยตรง (Direct-operated) ที่มีสถานะปกติปิด (NC) ตอบสนองสัญญาณไฟฟ้าอย่างฉับไวโดยไม่ต้องใช้ความดันเริ่มต้น ใช้พอร์ตเกลียว G 1/4 นิ้ว อัตราการไหล 0.3 ลูกบาศก์เมตรต่อชั่วโมง จุดเด่นที่สำคัญที่สุดคือซีลชนิด PTFE (เทฟลอน) ที่ทนทานต่อสารเคมีรุนแรงและการกัดกร่อนสูงได้อย่างดีเยี่ยม นวัตกรรมจากเดนฟอสช่วยลดความเสี่ยงในการรั่วไหลของสารเคมีอันตราย มอบความปลอดภัยขั้นสูงสุด และเป็นฟันเฟืองสำคัญที่ทำให้กระบวนการผลิตดำเนินไปได้อย่างราบรื่น

คุณสมบัติ

  • ซีรีส์ EV210B โหมดการทำงาน NC ควบคุมของไหลให้อยู่กับที่เมื่อปิดระบบ
  • รูเกลียวมาตรฐาน G 1/4 นิ้ว เล็กกะทัดรัดแต่คงความแข็งแรงทนทาน
  • ปริมาตรความเร็วการไหล 0.3 m³/h สำหรับการควบคุมระดับไมโครในโรงงาน
  • ประเก็นซีล PTFE (เทฟลอน) ให้ความต้านทานต่อสารเคมีรุนแรงและการกัดกร่อนสูง
  • ทนทานต่อการขัดถูและอุณหภูมิที่เปลี่ยนแปลงกระทันหันได้อย่างยอดเยี่ยม

ข้อมูลจำเพาะ

  • รหัสสินค้า 032U1232 รุ่น EV210B ขนาดเกลียว G 1/4 นิ้ว อัตราการไหล 0.3 ลูกบาศก์เมตรต่อชั่วโมง ซีล PTFE แบบ NC
  • โซลินอยด์วาล์วไดเร็คแอคชั่นติดตั้งซีล PTFE ทนทานต่อสารเคมีฤทธิ์รุนแรง
  • ซีลเทฟลอน (PTFE) ทนอุณหภูมิสูงและป้องกันการกัดกร่อนจากสารเคมีได้ดีเยี่ยม
  • ตัวเรือนวาล์วผลิตจากวัสดุคุณภาพสูง ทนทานต่อสภาพงานหนัก
  • เหมาะสำหรับห้องทดลอง ระบบเคมี และอุตสาหกรรมเฉพาะทาง
Gross weight 0.098 Kilogram
Net weight 0.092 Kilogram
Volume 0.113 Liter
EAN 5702423053865
Actuator A
Actuator size 9 mm
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Closed and Drain
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/8
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 0.09 gal/min
Differential pressure [bar] [max] 8 bar
Differential pressure [bar] [min] 0 bar
Differential pressure [psi] [max] 116 psi
Differential pressure [psi] [min] 0 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 10 ms
Est. time to open, water [ms] 10 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction indicator Engraved A-P-R
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 0.08 m³/h
Max media viscosity [cSt] 20 cSt
Max. test pressure [bar] 12 bar
Max. test pressure [psig] 174 psig
Max. Working Pressure [bar] 8 bar
Max. Working Pressure [psig] 116 psig
Media recommendations Oil,Comp.Air,Vacuum
Media tolerance comments Neutral media
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 3/2
Operation Direct-operated
Orifice size [mm] 1.8 mm
Orifice size fraction [in] 5/64 in
Packing format Multi pack
Parts Program name EV310A
Product accessories Solenoid coil accessories
Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 16 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. 049058ad-6d73-4ec9-9d2b-b574054e817d
SCIP dossier product name EV310A - solenoid valve
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV310A 1.8B G 18F NC000
Type EV310A
Type designation EV310A 1.8
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์ผลิตภัณฑ์: EV210B
  • ฟังก์ชันการทำงาน: ปกติปิด (Normally Closed)
  • ขนาดจุดเชื่อมต่อ: เกลียว G ขนาด 1/4 นิ้ว
  • อัตราการไหลสูงสุด (Kv): 0.3 m³/h
  • วัสดุซีลวาล์ว: PTFE
