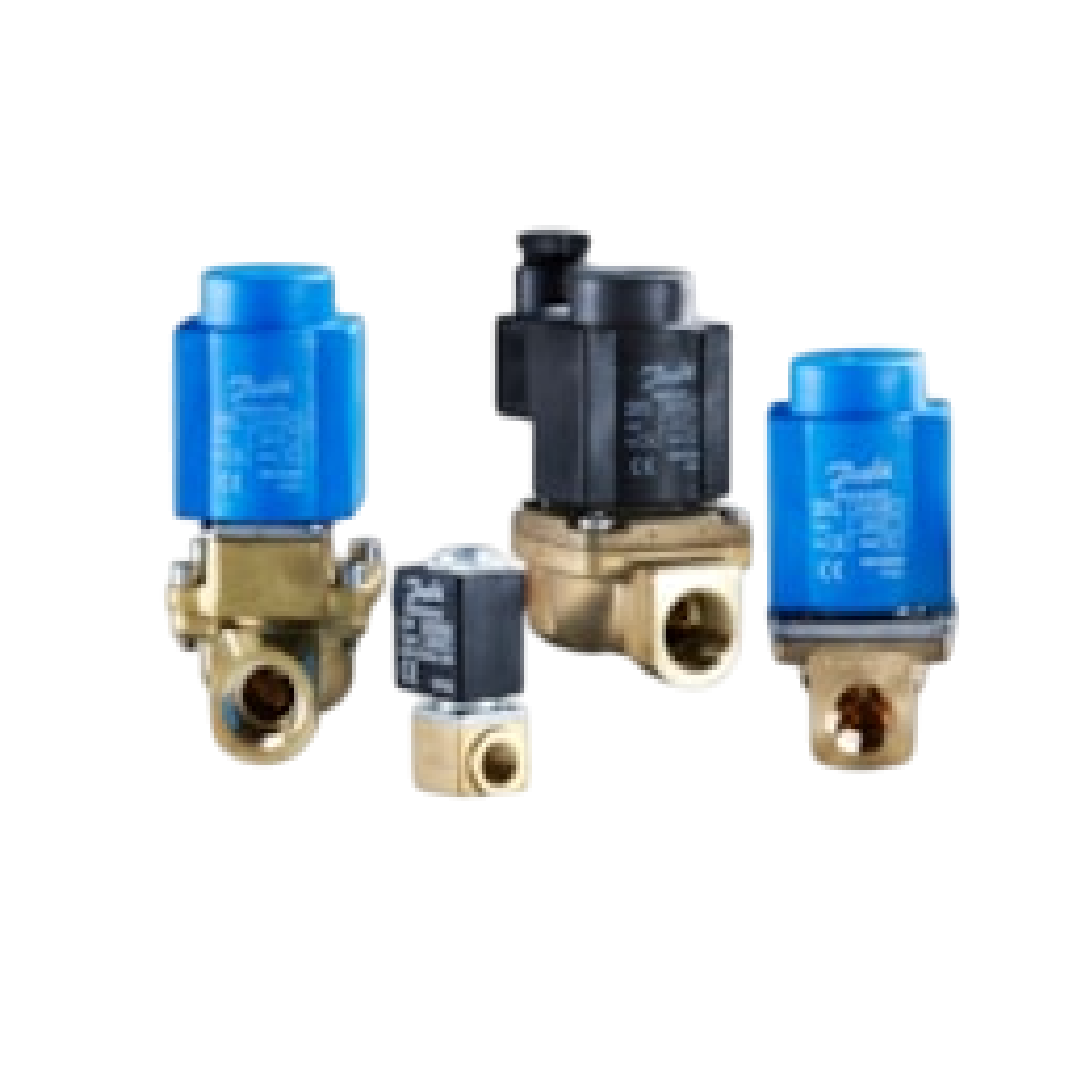

Danfoss Solenoid valve, EV210B, Function: NC, G, 1/4, 0.3 m³/h, FKM 032U3654

Danfoss Solenoid valve, EV210B, Function: NC, G, 1/4, 0.3 m³/h, FKM 032U3654

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 4,550.00 ฿
Regular price Sale price 4,550.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV210B, Function: NC, G, 1/4, 0.3 m³/h, FKM 032U3654

ยกระดับประสิทธิภาพระบบควบคุมของเหลวด้วยโซลินอยด์วาล์ว Danfoss รุ่น EV210B รหัส 032U3654 แบรนด์ผู้นำด้านวิศวกรรมระดับโลกที่โดดเด่นด้านความทนทานและแม่นยำสูง อุปกรณ์นี้ออกแบบมาให้มีสถานะปกติปิด (NC) เพื่อความปลอดภัยในการตัดการไหลเมื่อไม่มีกระแสไฟฟ้า มาพร้อมเกลียวเชื่อมต่อขนาด G 1/4 นิ้ว และรองรับอัตราการไหลที่ 0.3 ลูกบาศก์เมตรต่อชั่วโมง ตอบโจทย์การใช้งานอุตสาหกรรมด้วยซีลยาง FKM ที่มีคุณสมบัติทนทานต่อความร้อนสูงและน้ำมันได้อย่างดีเยี่ยม ให้การตอบสนองที่รวดเร็วและรักษาความเสถียรของแรงดันในระบบได้อย่างสมบูรณ์แบบ

คุณสมบัติ

  • โซลินอยด์วาล์วคุณภาพสูง Danfoss รุ่น EV210B
  • กลไกการทำงานรูปแบบ ปกติปิด (NC)
  • รองรับการเชื่อมต่อด้วยเกลียวขนาด G 1/4 นิ้ว
  • ประสิทธิภาพอัตราการไหลอยู่ที่ 0.3 m³/h
  • วัสดุซีลภายในเป็นชนิด FKM ทนทานต่องานอุตสาหกรรม

ข้อมูลจำเพาะ

  • ประเภท: โซลินอยด์วาล์ว Danfoss รุ่น EV210B
  • รหัสสินค้า: 032U3654
  • การทำงาน: NC
  • ขนาดเกลียวและอัตราการไหล: G 1/4 นิ้ว, 0.3 m³/h
  • วัสดุซีล: FKM
Gross weight 0.286 Kilogram
Net weight 0.259 Kilogram
Volume 0.253 Liter
EAN 5702423180066
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Closed and Drain
Body material Stainless steel
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Stainless steel
Connection size [in] 1/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 0.35 gal/min
Differential pressure [bar] [max] 30 bar
Differential pressure [bar] [min] 0 bar
Differential pressure [psi] [max] 435 psi
Differential pressure [psi] [min] 0 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 20 ms
Est. time to open, water [ms] 20 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 0.3 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 45 bar
Max. test pressure [psig] 653 psig
Max. Working Pressure [bar] 30 bar
Max. Working Pressure [psig] 435 psig
Media recommendations Oil,Comp.Air,Vacuum
Media tolerance comments Aggressive media
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 2/2
Operation Direct-operated
Orifice size [mm] 3 mm
Orifice size fraction [in] 1/8 in
Packing format Multi pack
Parts Program name EV210B
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 20 pc
REACH Candidate List substances No
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV210B 3SS G 14F NC000
Type EV210B
Type designation EV210B 3
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • รุ่นซีรีส์: EV210B
  • รูปแบบการทำงาน: NC (Normally Closed)
  • ขนาดเกลียวเชื่อมต่อ: G 1/4 นิ้ว
  • อัตราการไหล (Kv): 0.3 m³/h
  • ประเภทวัสดุซีล: FKM
