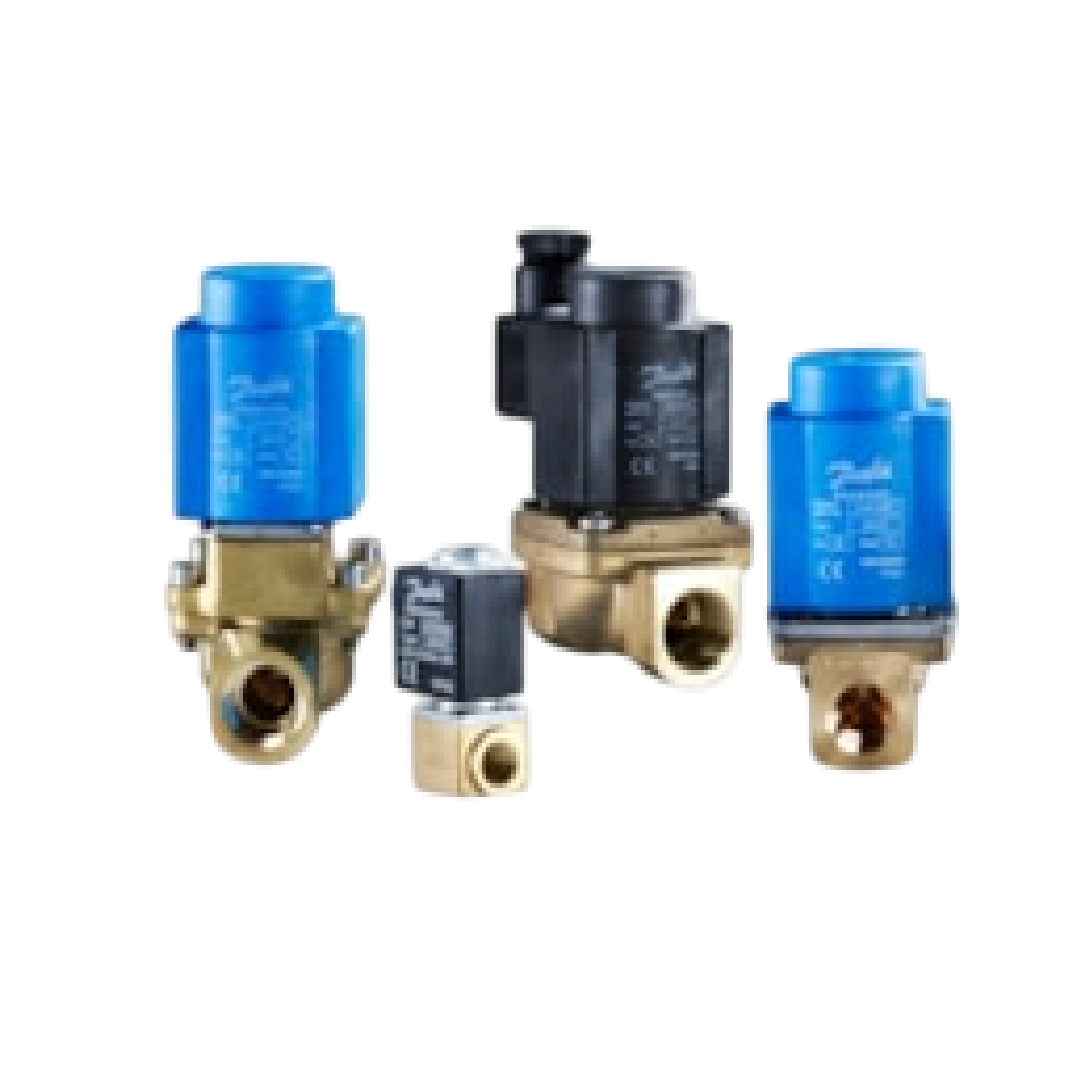

Danfoss Solenoid valve, EV210B, Function: NC, G, 1/4, 0.3 m³/h, FKM 032U147031

Danfoss Solenoid valve, EV210B, Function: NC, G, 1/4, 0.3 m³/h, FKM 032U147031

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 24,510.00 ฿
Regular price Sale price 24,510.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV210B, Function: NC, G, 1/4, 0.3 m³/h, FKM 032U147031

วาล์วแม่เหล็กไฟฟ้า Danfoss ซีรีส์ EV210B รหัส 032U147031 นำเสนอนวัตกรรมการควบคุมของไหลที่เปี่ยมด้วยประสิทธิภาพสำหรับงานวิศวกรรม ตัวอุปกรณ์เป็นชนิดปกติปิด (NC) ที่จะตัดการทำงานทันทีเมื่อไม่มีไฟเลี้ยง ช่วยเพิ่มความปลอดภัยให้กับระบบ ติดตั้งง่ายด้วยเกลียว G ขนาด 1/4 นิ้ว และให้อัตราการไหลที่สม่ำเสมอในระดับ 0.3 ลูกบาศก์เมตรต่อชั่วโมง ภายในเสริมความแข็งแกร่งด้วยซีลยาง FKM ซึ่งได้รับการยอมรับอย่างกว้างขวางในอุตสาหกรรมว่าสามารถทนต่อสภาพแวดล้อมที่มีน้ำมันหรืออุณหภูมิสูงได้เป็นอย่างดี การเลือกใช้ผลิตภัณฑ์จากเดนฟอสถือเป็นการลงทุนที่คุ้มค่า เพราะช่วยยืดอายุการใช้งานของเครื่องจักรและยกระดับการผลิต

คุณสมบัติ

  • ซีรีส์ EV210B สถานะเริ่มต้นแบบปกติปิด (NC) ช่วยรักษาความปลอดภัยเมื่อไฟดับ
  • ขนาดพอร์ต G 1/4 นิ้ว มีความกะทัดรัด ประหยัดพื้นที่หน้างานติดตั้ง
  • รองรับอัตราการไหลเวียน 0.3 ลูกบาศก์เมตรต่อชั่วโมง ดำเนินการได้อย่างแม่นยำ
  • ยางซีล FKM ป้องกันการเสื่อมสภาพจากการสัมผัสสารเคมีและสารหล่อลื่น
  • โครงสร้างวาล์วแข็งแรง ทนต่อแรงดันใช้งานได้อย่างมีประสิทธิภาพ

ข้อมูลจำเพาะ

  • รหัสสินค้า 032U147031 รุ่น EV210B ขนาดเกลียว G 1/4 นิ้ว อัตราการไหล 0.3 ลูกบาศก์เมตรต่อชั่วโมง วัสดุซีล FKM ชนิดทำงานปกติปิด
  • วาล์วเปิดปิดอัตโนมัติขนาดกะทัดรัด เหมาะสำหรับพื้นที่ติดตั้งจำกัดและระบบลมอัด
  • ยางซีล FKM คุณภาพสูง ป้องกันการรั่วซึมได้อย่างมีประสิทธิภาพตลอดอายุการใช้งาน
  • ตัวเรือนผลิตจากโลหะคุณภาพสูง ทนต่อการกัดกร่อนและการใช้งานรอบสูง
  • ตอบสนองไวในการเปิดปิดกระแสไหลเวียนของสื่อกลางได้อย่างแม่นยำ
Gross weight 0.262 Kilogram
Net weight 0.239 Kilogram
Volume 0.253 Liter
EAN 5702423020539
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval DNVGL-CG-0339
GL
PZH
WRAS
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 0.8 gal/min
Differential pressure [bar] [max] 20 bar
Differential pressure [bar] [min] 0.1 bar
Differential pressure [psi] [max] 290 psi
Differential pressure [psi] [min] 1.45 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 250 ms
Est. time to open, water [ms] 40 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 0.7 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 30 bar
Max. test pressure [psig] 435 psig
Max. Working Pressure [bar] 20 bar
Max. Working Pressure [psig] 290 psig
Media recommendations Water & Brine
Media tolerance comments Neutral media
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 6 mm
Orifice size fraction [in] 1/4 in
Packing format Multi pack
Parts Program name EV220B 6 - 22
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 20 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. f440c2c1-98fa-405b-9256-d9b24590a97e
SCIP dossier product name EV220B 6-22 brass NC - solenoid valve
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 6B G 14E NC000
Type EV220B
Type designation EV220B 6
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์ผลิตภัณฑ์: EV210B
  • ฟังก์ชันการทำงาน: ปกติปิด (Normally Closed)
  • ขนาดจุดเชื่อมต่อ: เกลียว G ขนาด 1/4 นิ้ว
  • อัตราการไหลสูงสุด (Kv): 0.3 m³/h
  • วัสดุซีลวาล์ว: FKM
