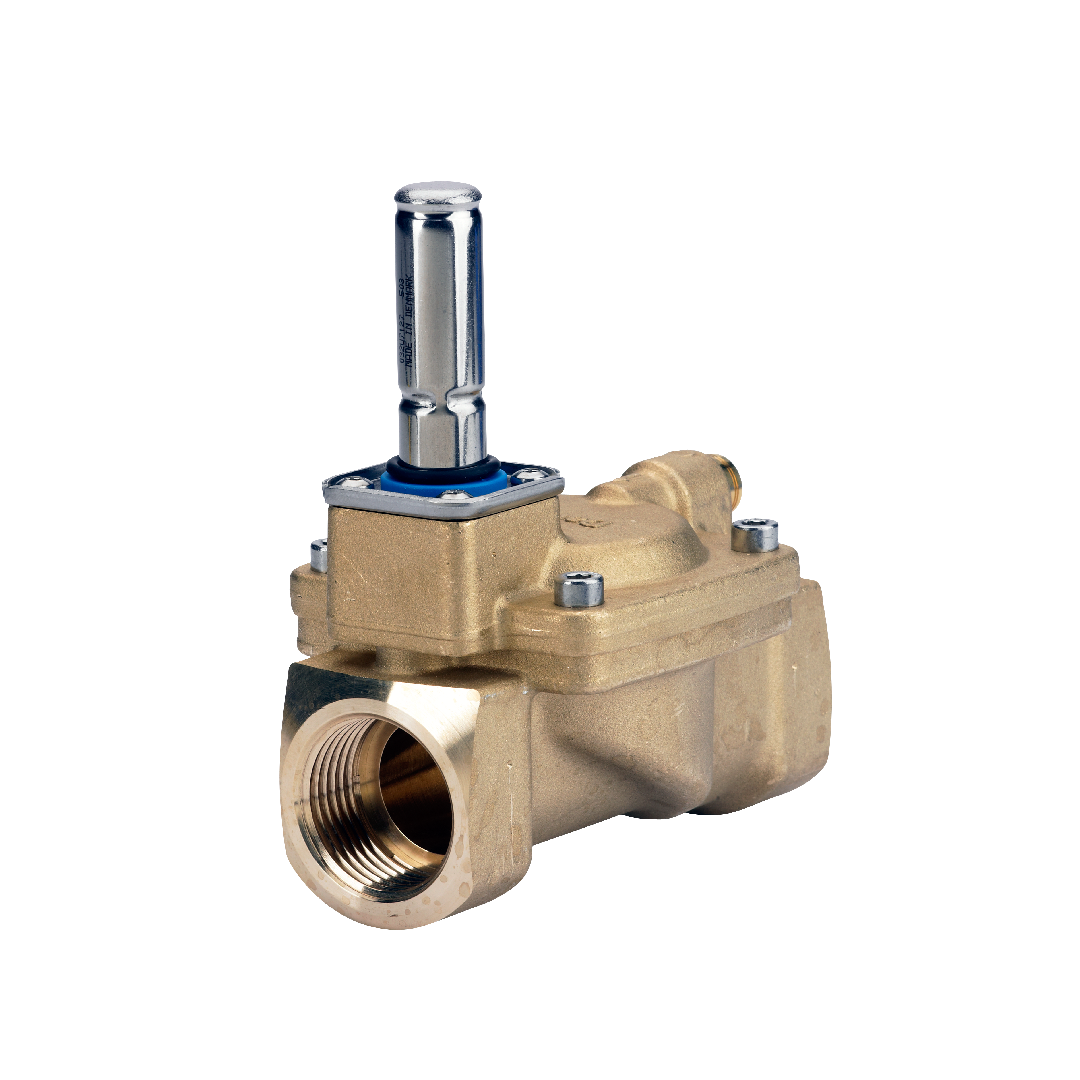

Danfoss Solenoid valve, EV210B, Function: NC, G, 1/4, 0.08 m³/h, NBR 032U5801

Danfoss Solenoid valve, EV210B, Function: NC, G, 1/4, 0.08 m³/h, NBR 032U5801

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 16,000.00 ฿
Regular price Sale price 16,000.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV210B, Function: NC, G, 1/4, 0.08 m³/h, NBR 032U5801

โซลินอยด์วาล์ว Danfoss รหัส 032U5801 ซีรีส์ EV210B มอบความแม่นยำสูงสุดให้กับระบบนิวเมติกส์และระบบหล่อลื่นขนาดเล็ก ทำงานด้วยกลไก ปกติปิด (NC) ตอบโจทย์ความต้องการที่เน้นความปลอดภัย โดยวาล์วจะปิดสนิทเมื่อไร้กระแสไฟ ป้องกันลมหรือน้ำมันรั่วไหล จัดการอัตราการไหลได้อย่างละเอียดที่ 0.08 m³/h พร้อมจุดเชื่อมต่อเกลียวมาตรฐาน G ขนาด 1/4 นิ้ว เลือกใช้ซีล NBR ที่มีความเหนียวและทนทานต่อของเหลวพื้นฐานในโรงงาน ความพิเศษคือระบบ Direct-operated ที่ทำงานได้ฉับพลันโดยไม่ต้องพึ่งความแตกต่างของแรงดันภายในเส้นท่อ

คุณสมบัติ

  • โซลินอยด์วาล์วซีรีส์ EV210B แข็งแรงทนทานตามมาตรฐานสากล
  • ระบบทำงานแบบปกติปิด (NC) ตัดการไหลของระบบได้อย่างปลอดภัยเมื่อไร้ไฟ
  • พอร์ตเชื่อมต่อเกลียว G ขนาด 1/4 นิ้ว ขันเข้าท่อได้แน่นหนา
  • รองรับอัตราการไหลเวียนได้สูงสุด 0.08 m³/h
  • วัสดุซีลแบบ NBR ทนต่อการสึกหรอและน้ำมันหล่อลื่น

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U5801
  • รุ่นและระบบการทำงาน: EV210B แบบ NC (Normally Closed)
  • ประเภทและขนาดเกลียว: G 1/4 นิ้ว
  • อัตราการไหล: 0.08 m³/h
  • วัสดุซีล: NBR
Gross weight 0.282 Kilogram
Net weight 0.269 Kilogram
Volume 0.253 Liter
EAN 5702423054473
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Closed and Drain
Body material Stainless steel
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Stainless steel
Connection size [in] 1/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 0.09 gal/min
Differential pressure [bar] [max] 30 bar
Differential pressure [bar] [min] 0 bar
Differential pressure [psi] [max] 435 psi
Differential pressure [psi] [min] 0 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 20 ms
Est. time to open, water [ms] 20 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 0.08 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 45 bar
Max. test pressure [psig] 653 psig
Max. Working Pressure [bar] 30 bar
Max. Working Pressure [psig] 435 psig
Media recommendations Water,Brine,Oil,Air
Media tolerance comments Aggressive media
Medium temperature range [°C] [max] 90 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 194 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 2/2
Operation Direct-operated
Orifice size [mm] 1.5 mm
Orifice size fraction [in] 1/16 in
Packing format Multi pack
Parts Program name EV210B
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 20 pc
REACH Candidate List substances No
Seal Material NBR
Serviceable Solenoid valve spare parts
Specification key EV210B 1.5SS G 14N NC000
Type EV210B
Type designation EV210B 1.5
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์โมเดล: EV210B
  • สถานะการทำงาน: ปกติปิด (NC)
  • ประเภทและขนาดเกลียว: G 1/4 นิ้ว
  • อัตราการไหล (Kv): 0.08 m³/h
  • วัสดุซีล: NBR
