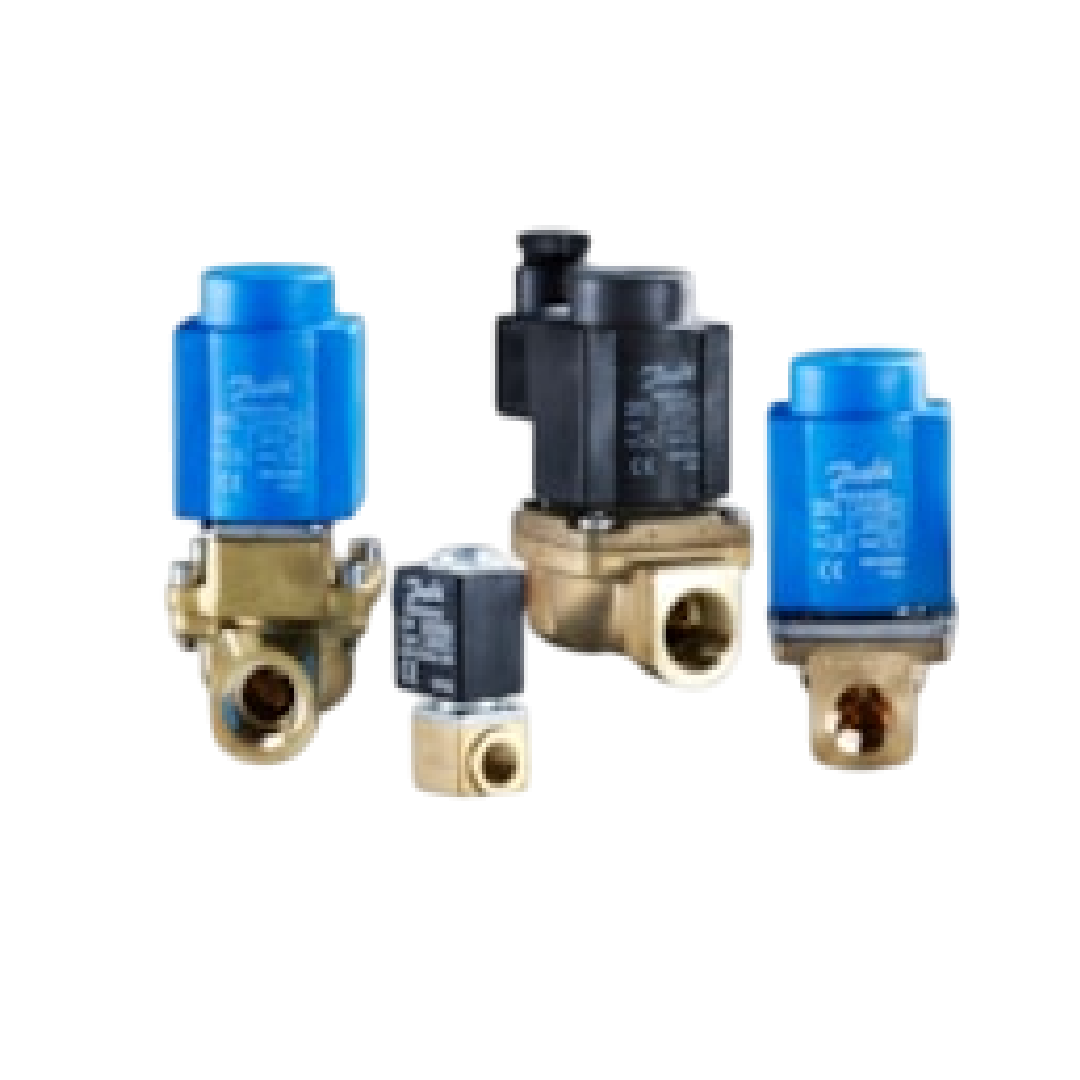

Danfoss Solenoid valve, EV210B, Function: NC, G, 1/2, 2.85 m³/h, FKM 032U3620
Danfoss Solenoid valve, EV210B, Function: NC, G, 1/2, 2.85 m³/h, FKM 032U3620
DANFOSS
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
3,920.00 ฿
Regular price
Sale price
3,920.00 ฿
Unit price
/
per
Couldn't load pickup availability
รายละเอียด Danfoss Solenoid valve, EV210B, Function: NC, G, 1/2, 2.85 m³/h, FKM 032U3620
สร้างความมั่นใจในทุกการควบคุมระดับกลางด้วยโซลินอยด์วาล์ว Danfoss รุ่น EV210B รหัส 032U3620 แบรนด์ชั้นนำที่ได้รับการพิสูจน์แล้วในอุตสาหกรรมทั่วโลก การทำงานแบบปกติปิด (NC) ของวาล์วช่วยเพิ่มความชัวร์ในการบล็อกของเหลวเมื่อหยุดการจ่ายไฟ รองรับการประกอบผ่านเกลียว G 1/2 นิ้ว พร้อมปริมาณการไหล 2.85 ลูกบาศก์เมตรต่อชั่วโมง โครงสร้างชิ้นส่วนภายในเสริมด้วยซีล FKM ที่แข็งแกร่งต่ออุณหภูมิสูงและของเหลวฐานน้ำมัน ให้การเปิดและปิดเป็นไปอย่างรวดเร็วและแม่นยำ ยืดอายุการทำงานให้กับทั้งระบบท่อของคุณ
View full details
คุณสมบัติ
คุณสมบัติ
- โซลินอยด์วาล์วคุณภาพสูง Danfoss รุ่น EV210B
- กลไกการทำงานรูปแบบ ปกติปิด (NC)
- รองรับการเชื่อมต่อด้วยเกลียวขนาด G 1/2 นิ้ว
- ประสิทธิภาพอัตราการไหลอยู่ที่ 2.85 m³/h
- วัสดุซีลภายในเป็นชนิด FKM ทนทานต่องานอุตสาหกรรม
ข้อมูลจำเพาะ
ข้อมูลจำเพาะ
- ประเภท: โซลินอยด์วาล์ว Danfoss รุ่น EV210B
- รหัสสินค้า: 032U3620
- การทำงาน: NC
- ขนาดเกลียวและอัตราการไหล: G 1/2 นิ้ว, 2.85 m³/h
- วัสดุซีล: FKM
| Gross weight | 0.608 Kilogram |
| Net weight | 0.554 Kilogram |
| Volume | 0.88 Liter |
| EAN | 5702423179367 |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Application | Closed and Drain |
| Body material | DZR brass |
| China RoHS compliance | Out of scope |
| Connection Internal/External | Internal |
| Connection material | DZR brass |
| Connection size [in] | 1/2 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Contain batteries | No |
| Cv value [gal/min] | 3.3 gal/min |
| Differential pressure [bar] [max] | 0.45 bar |
| Differential pressure [bar] [min] | 0 bar |
| Differential pressure [psi] [max] | 7 psi |
| Differential pressure [psi] [min] | 0 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Est. time to close, water [ms] | 50 ms |
| Est. time to open, water [ms] | 30 ms |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Function | NC |
| In scope of WEEE | Yes |
| Kv value [m³/h] | 2.85 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 16 bar |
| Max. test pressure [psig] | 232 psig |
| Max. Working Pressure [bar] | 0.5 bar |
| Max. Working Pressure [psig] | 7 psig |
| Media recommendations | Oil,Comp.Air,Vacuum |
| Media tolerance comments | Slightly aggressive media |
| Medium temperature range [°C] [max] | 100 °C |
| Medium temperature range [°C] [min] | -10 °C |
| Medium temperature range [°F] [max] | 212 °F |
| Medium temperature range [°F] [min] | 14 °F |
| Number of ways | 2/2 |
| Operation | Direct-operated |
| Orifice size [mm] | 15 mm |
| Orifice size fraction [in] | 5/8 in |
| Packing format | Multi pack |
| Parts Program name | EV210B |
| Product accessories | Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | f39c9b5f-71a1-49e3-bc6d-20baa8f46870 |
| SCIP dossier product name | EV210B brass NC - solenoid valve |
| Seal Material | FKM |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV210B 15BD G 12F NC000 |
| Type | EV210B |
| Type designation | EV210B 15 |
| UK RoHS compliance | Out of scope |
