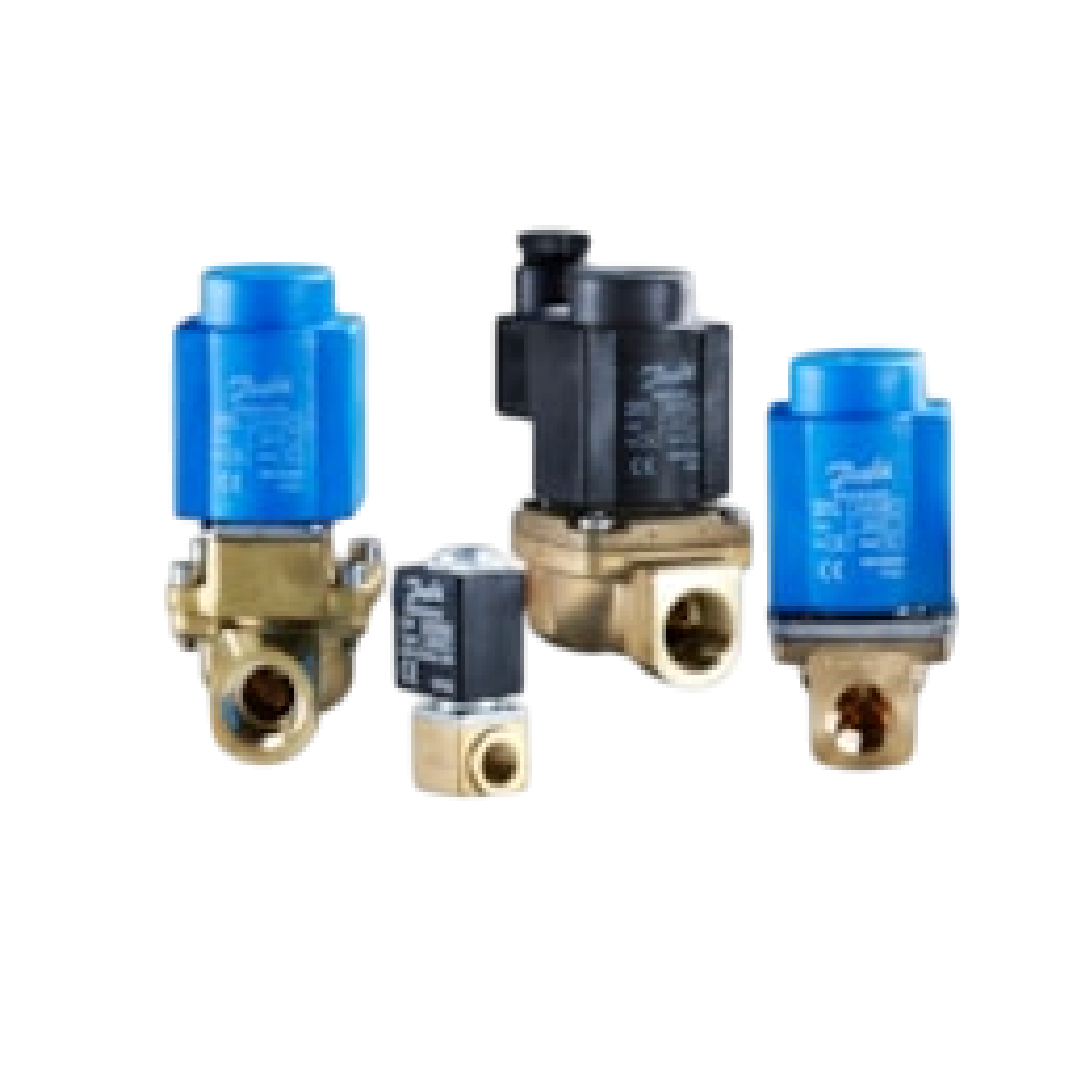

Danfoss Solenoid valve, EV210B, Function: NC, G, 1/2, 0.8 m³/h, FKM 032U3707

Danfoss Solenoid valve, EV210B, Function: NC, G, 1/2, 0.8 m³/h, FKM 032U3707

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 26,140.00 ฿
Regular price Sale price 26,140.00 ฿
Sale Sold out

รายละเอียด Danfoss Solenoid valve, EV210B, Function: NC, G, 1/2, 0.8 m³/h, FKM 032U3707

Danfoss Solenoid valve, EV210B, Function: NC, G, 1/2, 0.8 m³/h, FKM 032U3707 โซลินอยด์วาล์ว Danfoss รุ่น EV210B รหัส 032U3707 เป็นวาล์วแบบทำงานตรง (Direct-operated) คุณภาพสูงที่ออกแบบมาเพื่อควบคุมการไหลอย่างแม่นยำ โดดเด่นด้วยนวัตกรรมวิศวกรรมที่ทนทานต่อสภาวะการทำงานหนักในอุตสาหกรรม ทำงานด้วยฟังก์ชันปกติปิด (NC) ช่วยตัดการไหลทันทีเมื่อไม่มีไฟเลี้ยงเพื่อความปลอดภัย มาพร้อมเกลียว G 1/2 นิ้ว อัตราการไหล 0.8 ลูกบาศก์เมตร/ชั่วโมง ใช้ซีล FKM ที่มีคุณสมบัติทนทานต่อน้ำมัน สารละลาย และอุณหภูมิที่สูงกว่าปกติได้อย่างมั่นใจ ตอบโจทย์ระบบอัตโนมัติที่ต้องการเสถียรภาพและมาตรฐานความปลอดภัยระดับสากลจาก Danfoss อย่างแท้จริง

คุณสมบัติ

  • วาล์วแม่เหล็กไฟฟ้าโมเดล EV210B รหัส 032U3707
  • รูปแบบควบคุมสถานะ NC
  • เกลียวติดตั้งประเภท G ขนาด 1/2 นิ้ว
  • รองรับปริมาณการไหล 0.8 m³/h
  • ใช้วัสดุยางซีล FKM ทนทานต่อการใช้งาน

ข้อมูลจำเพาะ

  • แบรนด์และรุ่น: Danfoss Solenoid Valve รุ่น EV210B (รหัส 032U3707)
  • สถานะการทำงาน: ปกติปิด (NC)
  • ขนาดจุดเชื่อมต่อ: เกลียว G ขนาด 1/2 นิ้ว
  • ความสามารถในการไหล: อัตรา 0.8 m³/h
  • ชนิดของซีล: FKM
Gross weight 0.329 Kilogram
Net weight 0.31 Kilogram
Volume 0.253 Liter
EAN 5702428877411
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Closed and Drain
Body material Stainless steel
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Stainless steel
Connection size [in] 1/2
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 0.92 gal/min
Differential pressure [bar] [max] 3 bar
Differential pressure [bar] [min] 0 bar
Differential pressure [psi] [max] 44 psi
Differential pressure [psi] [min] 0 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 30 ms
Est. time to open, water [ms] 20 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 0.8 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 16 bar
Max. test pressure [psig] 232 psig
Max. Working Pressure [bar] 3 bar
Max. Working Pressure [psig] 44 psig
Media recommendations Oil,Comp.Air,Vacuum
Media tolerance comments Aggressive media
Medium temperature range [°C] [max] 90 °C
Medium temperature range [°C] [min] 0 °C
Medium temperature range [°F] [max] 194 °F
Medium temperature range [°F] [min] 32 °F
Number of ways 2/2
Operation Direct-operated
Orifice size [mm] 8 mm
Orifice size fraction [in] 5/16 in
Packing format Multi pack
Parts Program name EV210B
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 20 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. f39c9b5f-71a1-49e3-bc6d-20baa8f46870
SCIP dossier product name EV210B brass NC - solenoid valve
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV210B 8SS G 12F NC000
Type EV210B
Type designation EV210B 8
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • แบรนด์และซีรีส์ผลิตภัณฑ์: Danfoss รุ่น EV210B (หมายเลขอ้างอิง 032U3707)
  • ฟังก์ชันการทำงาน: วาล์วประเภท NC (Normally Closed) หรือแบบปกติปิด
  • รูปแบบข้อต่อ: ชนิดเกลียวมาตรฐาน G ขนาด 1/2 นิ้ว
  • ประสิทธิภาพอัตราการไหล: รองรับปริมาตรการไหลที่ 0.8 m³/h
  • ชนิดวัสดุซีล: ซีลยาง FKM สำหรับการป้องกันการรั่วซึม
