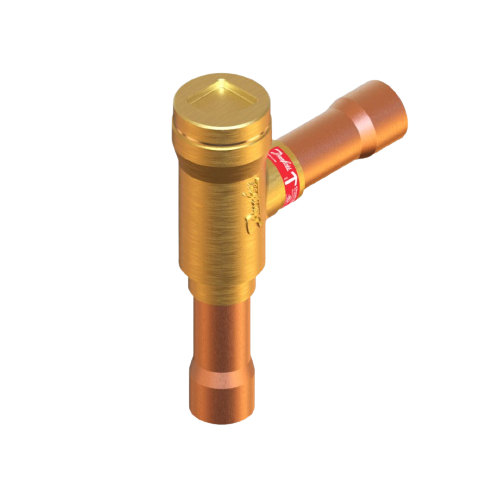

- Check Valve NRV Danfoss 35s, Max. Working Pressure 46 bar Connection 1 3/8 lnch Code 020-1026
Check Valve NRV Danfoss 35s, Max. Working Pressure 46 bar Connection 1 3/8 lnch Code 020-1026
Check Valve NRV Danfoss 35s, Max. Working Pressure 46 bar Connection 1 3/8 lnch Code 020-1026
Regular price
13,948.01 ฿
Regular price
Sale price
13,948.01 ฿
Unit price
/
per
DANFOSS
รายละเอียด Check Valve NRV Danfoss 35s, Max. Working Pressure 46 bar Connection 1 3/8 lnch Code 020-1026
Product details
Gross weight | 0.064 Kg |
Net weight | 0.052 Kg |
Volume | 0.147 Liter |
EAN | 5702428291217 |
Approval | C UL US LISTED EAC LLC CDC EURO-TYSK |
Body material | Brass |
Connection material | Copper |
Cv value [gal/min] | 0.76 gal/min |
Design | Piston |
Direction | Straightway |
EN13463-3 ignition. source assess | yes |
Flow direction | Single-flow |
Flow direction indicator | On product label |
Fluid Group | 1 2 |
Unique product | 020B0125 |
Inlet connection type | Solder, ODF |
Inlet size [in] | 1/4 inch |
Kv value [m³/h] | 0.66 m³/h |
Lubricants compatibility | Oilfree applications |
Max. Working Pressure [bar] | 49 bars |
Max. Working Pressure [psig] | 710psig |
Min. Pressure drop [bar] | 0.07 bar |
Min. Pressure drop [psi] | 1 psi |
MinODP [bar] | 0.04 bar |
MinODP [psi] | 0.58 psi |
Oil free refrigerants | R1234ze(E) R134a R513A R515B R516A |
Outlet connection type | Solder, ODF |
Outlet size [in] | 1/4 in. |
Packing format | Multi pack |
PED category | Art. 4, par. 3 |
Product group | Check valves |
Product Name Description | Check valve |
Quantity per packing format | 25 pc |
Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Refrigerants | R1233zd(E),R1234yf,R1234ze(E),R1270 R134a,R22/R407C,R290,R32,R407A R407F,R407H,R410A,R448A,R449A R449B,R450A,R452A,R452B,R454B R454C, R455A, R513A, R515B, R516A R600, R600a, R454A, R404A/R507A, R170 |
