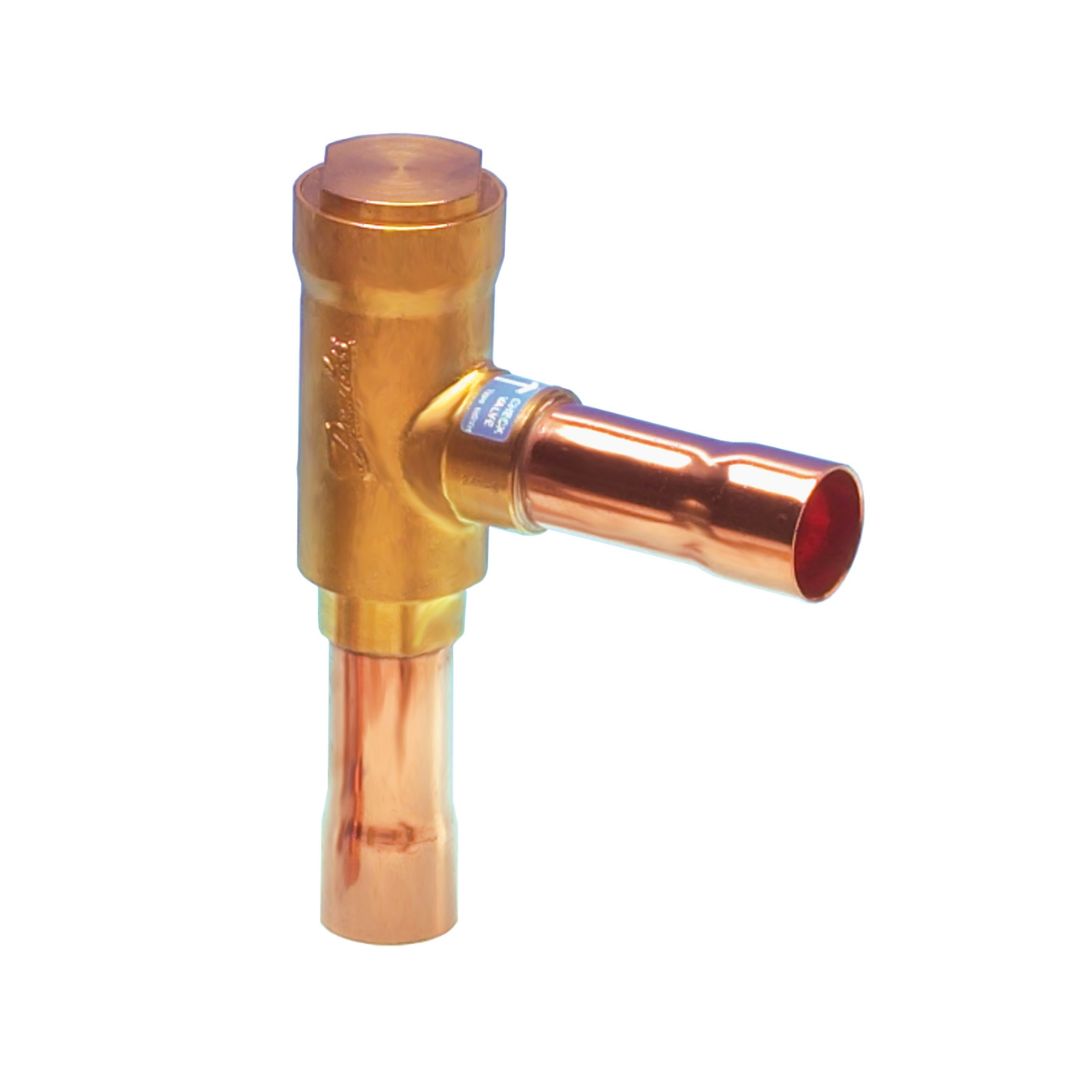

Check Valve NRV Danfoss 28s, Max. Working Pressure 46 bar Connection 1 1/8 lnch Code 020-1056

Check Valve NRV Danfoss 28s, Max. Working Pressure 46 bar Connection 1 1/8 lnch Code 020-1056

8,054.76 ฿
8,054.76 ฿
Sale Sold out

DANFOSS

รายละเอียด Check Valve NRV Danfoss 28s, Max. Working Pressure 46 bar Connection 1 1/8 lnch Code 020-1056

Data Sheets :

Product details

Gross weight 1.4 Kg
Net weight 1.248 Kg
Volume 3.749 Liters
EAN 5702422022046
Approval C UL US LISTED
EAC
Body material Brass
Connection material Copper
Cv value [gal/min] 33.52 gal/min
Design Piston
Direction Angleway
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 2
Unique product 020-1154
Inlet connection type Solder, ODF
Inlet size [in] 1 3/8 inches
Inlet size [mm] 35 mm
Kv value [m³/h] 29 m³/h
Lubricants compatibility Oilfree applications
Max. Working Pressure [bar] 46 bar
Max. Working Pressure [psig] 667 psig
Min. Pressure drop [bar] 0.04 bar
Min. Pressure drop [psi] 0.6 psi
Oil free refrigerants R1234ze(E)
R134a
R513A
R515B
Outlet connection type Solder, ODF
Outlet size [in] 1 3/8 inches
Outlet size [mm] 35 mm
Packing format Multi pack
PED category Art. 4, par. 3
Product group Check valves
Product Name Description Check valve
Quantity per packing format 6pc
Rated cap cond, Hot gas [IMP] tcond=86 °F
tdisc=176 °F
tevap=14 °F
thotgas=140 °F
tsub=9 °F
Rated cap cond, Hot gas [SI] tcond=30 °C
tdisc=80 °C
tevap=-10 °C
thotgas=60 °C
tsub=5K
Rated cap cond, Liq. cap [IMP] tcond=86 °F
tevap=14 °F
tsub=9 °F
Rated cap cond, Liq. cap [SI] tcond=30 °C
tevap=-10 °C
tsub=5K
REACH Candidate List substances Lead (CAS no. 7439-92-1)
Refrigerants R134a,R22/R407C,R407A,R407F
R410A, R448A, R449A, R450A, R452A
R513A,R1234ze(E),R404A/R507A
R1233zd(E),R1234yf,R1270,R290
R407H, R449B, R452B, R454A, R454B
R454C,R455A,R515B,R516A,R600
R600a,R32,R170
SCIP dossier no. b3a34751-5701-488e-98f4-24be945efdc1
Temperature range [°C] [max] 140 °C
Temperature range [°C] [min] -50 °C
Temperature range [°F] [max] 285 °F
Temperature range [°F] [min] -58 °F
Type NRV-35s
UL approval file name REFRIGERANT VALVE 53R0
UL approved refrigerants R134a,R22,R404A,R407A,R407C
R407F, R410A, R448A, R449A, R450A
R452A,R507A,R513A,R1233zd(E)
R1234yf, R1234ze(E), R1270, R170
R290,R32,R407H,R449BR452B,R454A
R454B,R454C,R455A,R515B,R516A
R600,R600a
