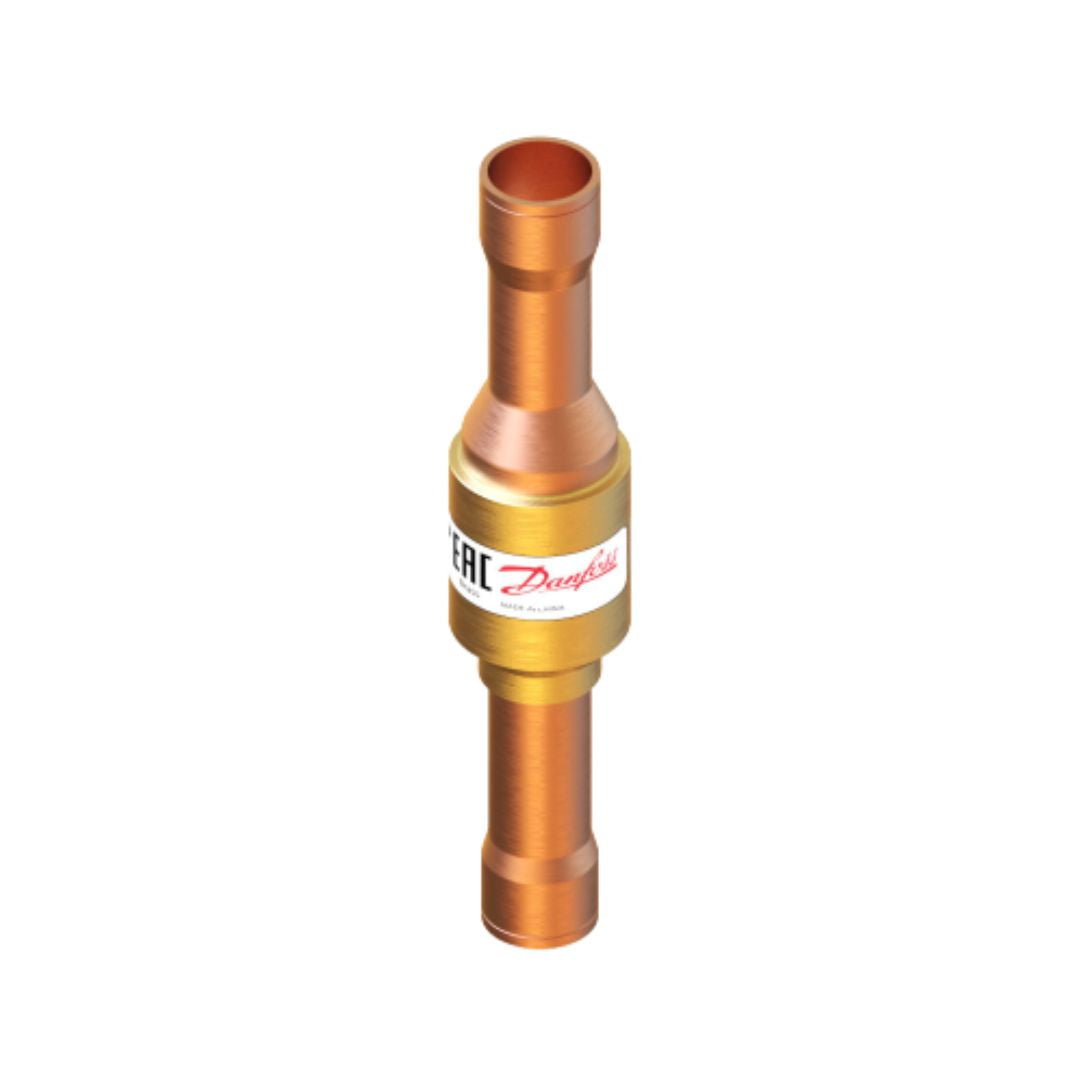

- Check Valve NRV Danfoss 16s, Max. Working Pressure 49 bar Connection 3/4 lnch Code 020B1059
Check Valve NRV Danfoss 16s, Max. Working Pressure 49 bar Connection 3/4 lnch Code 020B1059
Check Valve NRV Danfoss 16s, Max. Working Pressure 49 bar Connection 3/4 lnch Code 020B1059
Regular price
2,399.66 ฿
Regular price
Sale price
2,399.66 ฿
Unit price
/
per
DANFOSS
รายละเอียด Check Valve NRV Danfoss 16s, Max. Working Pressure 49 bar Connection 3/4 lnch Code 020B1059
Product details
Gross weight | 0.174 Kg |
Net weight | 0.16 Kg |
Volume | 0.144 Liter |
EAN | 5702428291248 |
Approval | C UL US LISTED EAC LLC CDC EURO-TYSK |
Body material | Brass |
Connection material | Copper |
Cv value [gal/min] | 4.67 gal/min |
Design | Piston |
Direction | Straightway |
EN13463-3 ignit. source assess | yes |
Flow direction | Single-flow |
Flow direction indicator | On product label |
Fluid Group | 1 2 |
Unique product | 020B1150 |
Inlet connection type | Solder, ODF |
Inlet size [in] | 5/8 inch |
Inlet size [mm] | 16 mm |
Kv value [m³/h] | 4.04 m³/h |
Lubricants compatibility | Oilfree applications |
Max. Working Pressure [bar] | 49 bars |
Max. Working Pressure [psig] | 710psig |
Min. Pressure drop [bar] | 0.05 bar |
Min. Pressure drop [psi] | 0.7 psi |
MinODP [bar] | 0.02 bar |
MinODP [psi] | 0.29 psi |
Oil free refrigerants | R1234ze(E) R134a R513A R515B R516A |
Outlet connection type | Solder, ODF |
Outlet size [in] | 5/8 inch |
Outlet size [mm] | 16 mm |
Packing format | Multi pack |
PED category | Art. 4, par. 3 |
Product group | Check valves |
Product Name Description | Check valve |
Quantity per packing format | 24 pc |
Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
Refrigerants | R1234yf,R1234ze(E),R1270 R134a,R22/R407C,R290,R32,R407A R407F,R407H,R410A,R448A,R449A R449B,R450A,R452A,R452B,R454B R454C, R455A, R513A, R515B, R516A R600,R600a,R454A,R404A/R507A,R170 |
Temperature range [°C] [max] | 155 °C |
Temperature range [°C] [min] | -50 °C |
Temperature range [°F] [max] | 311 °F |
Temperature range [°F] [min] | -58 °F |
Type | NRV-16s |
UL approval file name | REFRIGERANT VALVE 53R0 |
UL approved refrigerants | R1233zd(E),R134a,R22,R404A R407A,R407C,R407F,R407H R410A, R448A, R449A, R449B R450A, R452A, R507A, R513A R515B,R516A,R1234yf,R1234ze(E) R1270,R170,R290,R32,R452B R454A,R454B,R454C,R455A R600,R600a |
