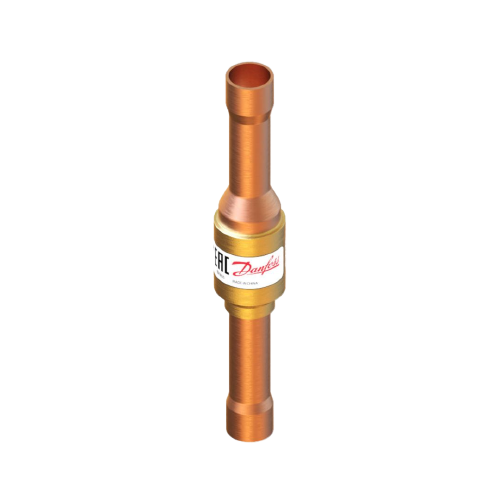

Check Valve NRV Danfoss 12s, Max. Working Pressure 49 bar Connection 1/2 lnch Code 020B1012

Check Valve NRV Danfoss 12s, Max. Working Pressure 49 bar Connection 1/2 lnch Code 020B1012

1,784.76 ฿
1,784.76 ฿
Sale Sold out

DANFOSS

รายละเอียด Check Valve NRV Danfoss 12s, Max. Working Pressure 49 bar Connection 1/2 lnch Code 020B1012

Datasheets :

Product details

Gross weight 0.07 Kg
Net weight 0.05 Kg
Volume 0.101 Liter
EAN 5702422006510
Approval C UL US LISTED
EAC
Body material Brass
Connection material Brass
Connection notes Without flare nut
Cv value [gal/min] 0.65 gal/min
Design Piston
Direction Straightway
Flow direction Single-flow
Flow direction indicator On product label
Fluid Group 1
2
Identical product 020-0138
Inlet connection type Flare
Inlet size [in] 1/4 in.
Inlet size [mm] 6 mm
Kv value [m³/h] 0.56 m³/h
Lubricants compatibility Oilfree applications
Max. Working Pressure [bar] 46 bar
Max. Working Pressure [psig] 667 psig
Min. Pressure drop [bar] 0.07 bar
Min. Pressure drop [psi] 1 psi
Oil free refrigerants R1234ze(E)
R134a
R513A
R515B
R516A
Outlet connection type Flare
Outlet size [in] 1/4 in.
Outlet size [mm] 6 mm
Packing format Multi pack
PED category Art. 4, par. 3
Product group Check valves
Product Name Description Check valve
Quantity per packing format 25pc
Rated cap cond, Hot gas [IMP] tcond=86 °F
tdisc=176 °F
tevap=14 °F
thotgas=140 °F
tsub=9 °F
Rated cap cond, Hot gas [SI] tcond=30 °C
tdisc=80 °C
tevap=-10 °C
thotgas=60 °C
tsub=5K
Rated cap cond, Liq. cap [IMP] tcond=86 °F
tevap=14 °F
tsub=9 °F
Rated cap cond, Liq. cap [SI] tcond=30 °C
tevap=-10 °C
tsub=5K
REACH Candidate List substances Lead (CAS no. 7439-92-1)
Refrigerants R134a,R22/R407C,R407A,R407F
R410A, R448A, R449A, R450A, R452A
R513A, R1233zd(E), R1234yf, R1234ze(E)
R407H, R449B, R452B, R454A, R454B
R454C,R455A,R515B,R516A,R404A/R507A
R32
SCIP dossier no. 518b3853-2efc-40fc-8f8b-d06930d032bb
Temperature range [°C] [max] 140 °C
Temperature range [°C] [min] -50 °C
Temperature range [°F] [max] 285 °F
Temperature range [°F] [min] -58 °F
Type NRV 6
UL approval file name REFRIGERANT VALVE 53R0
UL approved refrigerants R134a,R22,R404A,R407A,R407C
R407F,R410A,R448A,R449A
R450A,R452A,R507A,R513A
R1233zd(E),R1234yf,R1234ze(E)
R32,R407H,R449B,R452B,R454A
R454B,R454C,R455A,R515B,R516A
