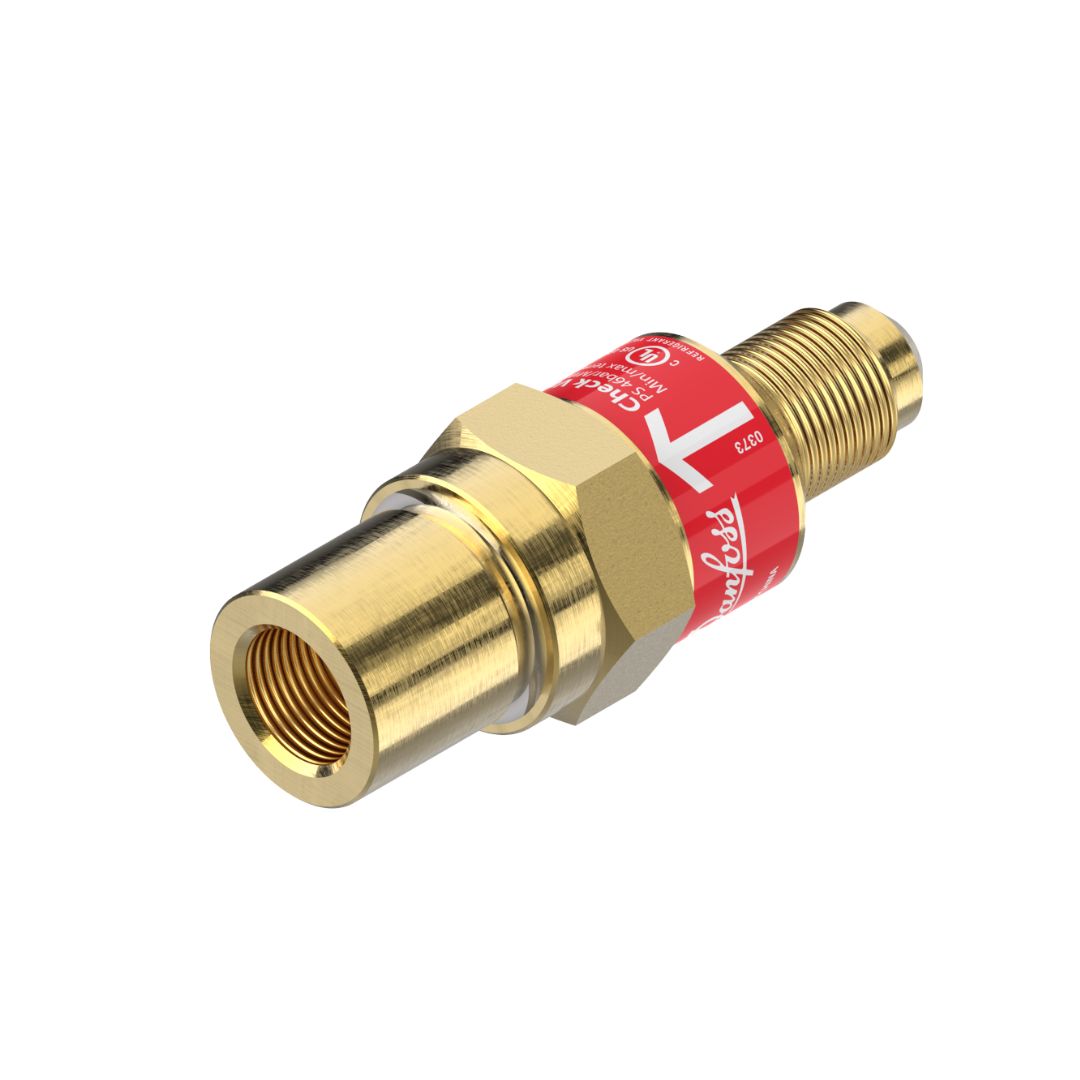

Check Valve Danfoss NRV 10, Max. Working Pressure 46 bar Connection 3/8 lnch Code 020-1041

Check Valve Danfoss NRV 10, Max. Working Pressure 46 bar Connection 3/8 lnch Code 020-1041

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
1,580.00 ฿
1,580.00 ฿
Sale Sold out

รายละเอียด Check Valve Danfoss NRV 10, Max. Working Pressure 46 bar Connection 3/8 lnch Code 020-1041

Data Sheets :

Product details

Gross weight 0.182 Kg
Net weight 0.17 Kg
Volume 0.152 Liter
EAN 5702428572118
Approval C UL US LISTED
EAC
Body material Brass
Connection material Copper
Connection notes Oversize
Cv value [gal/min] 4.67 gal/min
Design Piston
Direction Straightway
EN13463-3 ignit. source assess Yes
Flow direction Single-flow
Flow direction indicator On product label
Fluid Group 1
2
Inlet connection type Solder, ODF
Inlet size [in] 3/4 in
Inlet size [mm] 19 mm
Kv value [m³/h] 4.04 m³/h
Lubricants compatibility Oilfree applications
Max. Working Pressure [bar] 49 bar
Max. Working Pressure [psig] 710 psig
Min. Pressure drop [bar] 0.05 bar
Min. Pressure drop [psi] 0.7 psi
MinODP [bar] 0.02 bar
MinODP [psi] 0.29 psi
Oil free refrigerants R1234ze(E)
R134a
R513A
R515B
R516A
Outlet connection type Solder, ODF
Outlet size [in] 3/4 in
Outlet size [mm] 19 mm
Packing format Multi pack
PED category Art. 4, par. 3
Product group Check valves
Product Name Description Check valve
Quantity per packing format 24 pc
Rated cap cond, Hot gas [IMP] tcond=86 °F
tdisc=176 °F
tevap=14 °F
thotgas=140 °F
tsub=9 °F
Rated cap cond, Hot gas [SI] tcond=30 °C
tdisc=80 °C
tevap=-10 °C
thotgas=60 °C
tsub=5K
Rated cap cond, Liq. cap [IMP] tcond=86 °F
tevap=14 °F
tsub=9 °F
Rated cap cond, Liq. cap [SI] tcond=30 °C
tevap=-10 °C
tsub=5K
Refrigerants R1233zd(E),R1234yf,R1234ze(E),R1270
R134a,R22/R407C,R290,R32,R407A
R407F,R407H,R410A,R448A,R449A
R449B,R450A,R452A,R452B,R454B
R454C,R455A,R513A,R515B,R516A
R600,R600a,R454A,R404A/R507A,R170
Temperature range [°C] [max] 155 °C
Temperature range [°C] [min] -50 °C
Temperature range [°F] [max] 311 °F
Temperature range [°F] [min] -58 °F
Type NRV 16s
UL approval file name REFRIGERANT VALVE 53R0
UL approved refrigerants R1233zd(E),R134a,R22,R404A
R407A,R407C,R407F,R407H
R410A,R448A,R449A,R449B
R450A,R452A,R507A,R513A
R515B,R516A,R1234yf,R1234ze(E)
R1270,R170,R290,R32,R452B
R454A,R454B,R454C,R455A
R600,R600a
