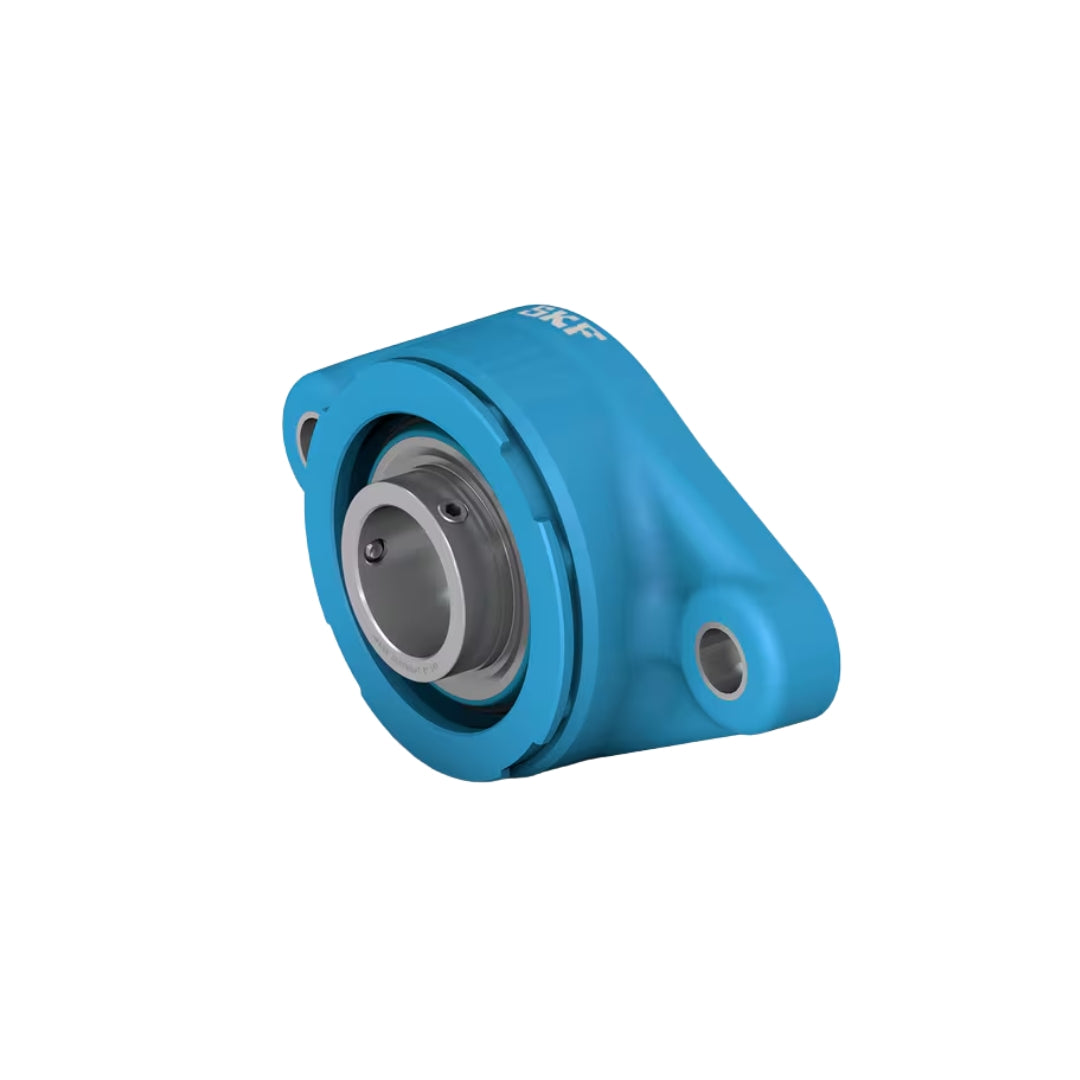

ตลับลูกปืน SKF F2BC 50M-TPSS
ตลับลูกปืน SKF F2BC 50M-TPSS
SKF
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
5,578.00 ฿
Regular price
Sale price
5,578.00 ฿
Unit price
per
Couldn't load pickup availability
รายละเอียด ตลับลูกปืน SKF F2BC 50M-TPSS
| Compliance with standard | Not standardized |
| Purpose specific | For food and beverage applications |
| Material, housing | Composite for the SKF Food Line |
| Sealing, bearing | Seal and flinger on both sides |
| Sealing type, bearing | Contact, gutter |
| Sealing, unit | Optional end cover |
| Coating | Without |
Dimensions
| d |
50 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈ 62.51 mm
|
Outer diameter of inner ring |
| A |
42 mm
|
Overall width |
| A1 |
19 mm
|
Flange width |
| A5 |
74 mm
|
Width including end cover |
| B |
51.6 mm
|
Width of inner ring |
| B1 |
51.6 mm
|
Overall bearing width |
| B4 |
9 mm
|
Distance from locking device side face to thread centre |
| Db |
102 mm
|
Top external diameter |
| Dc |
98 mm
|
Diameter of housing centering recess |
| H |
199 mm
|
Overall height |
| Ha |
6 mm
|
Depth of housing centering recess |
| J |
157 mm
|
Distance between attachment bolts |
| L |
107 mm
|
Overall length |
| N |
17.5 mm
|
Diameter of attachment bolt hole |
| s1 |
32.6 mm
|
Distance from locking device side face to raceway centre |
| T |
53.8 mm
|
Overall unit width |
Calculation data
| Basic dynamic load rating | C |
29.6 kN
|
|---|---|---|
| Basic static load rating | C0 |
23.2 kN
|
| Fatigue load limit | Pu |
0.98 kN
|
| Limiting speed |
2 200 r/min
|
|
Limiting speed with shaft tolerance h6 |
Mass
| Mass bearing unit |
1.02 kg
|
Mounting information
| Set screw | G2 | M10x1 |
|---|---|---|
| Hexagonal key size for set screw |
5 mm
|
|
| Recommended tightening torque for set screw |
16.5 N·m
|
|
| Recommended diameter for attachment bolts, mm | G |
16 mm
|
| Recommended diameter for attachment bolts, inch | G |
0.625 in
|
