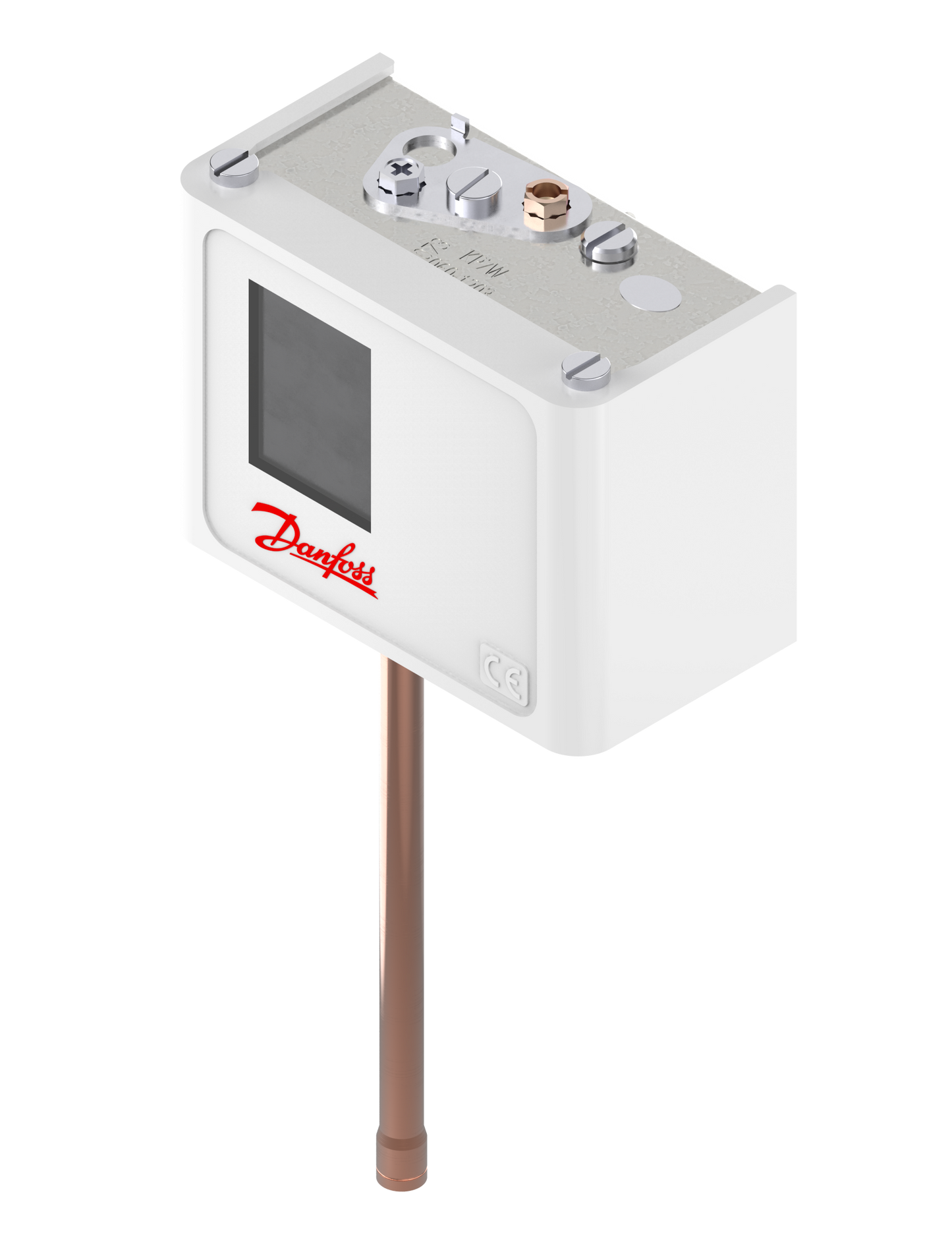

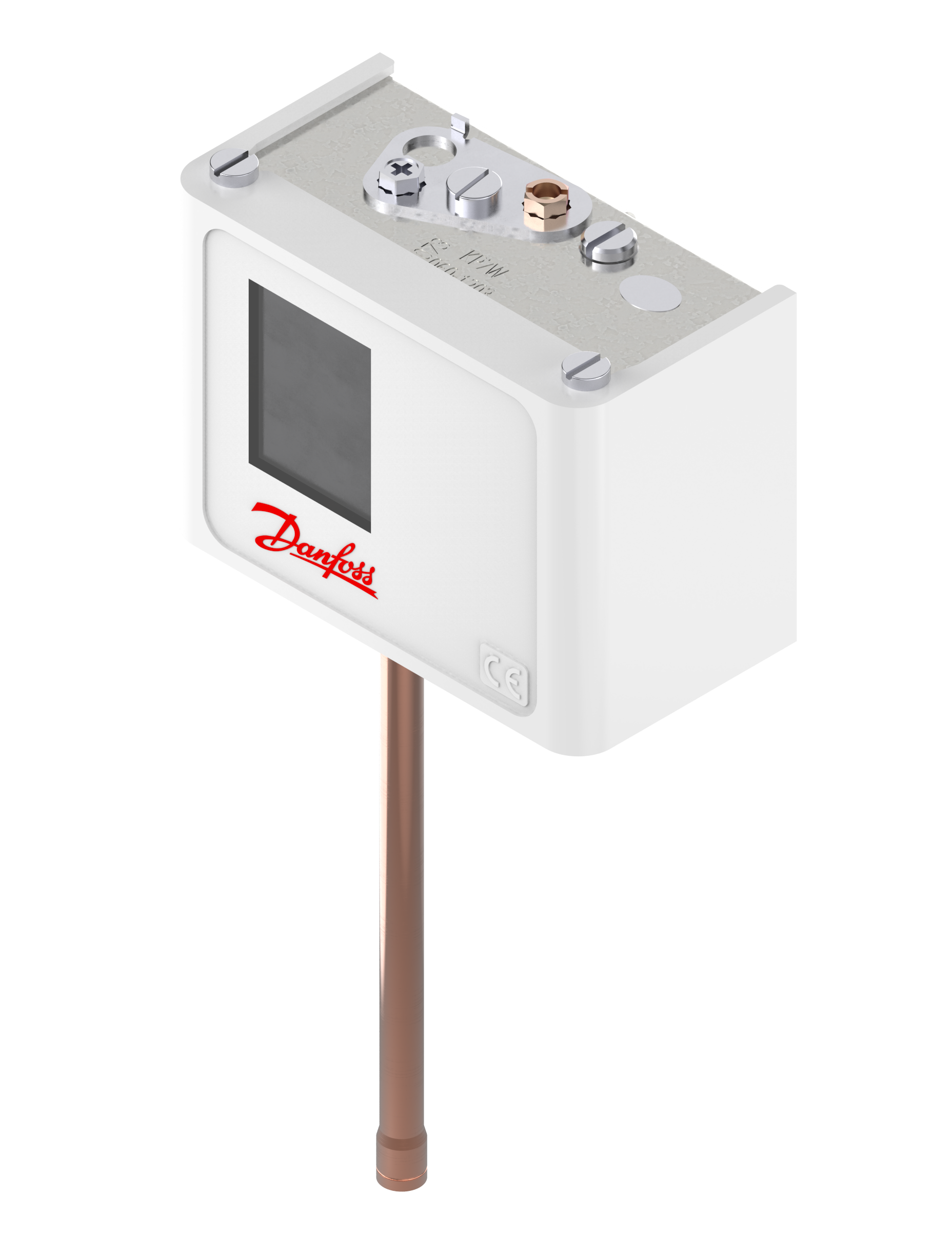

Pressure switch, KP5 เพรสเชอร์สวิทซ์ Danfoss 060-537266

Pressure switch, KP5 เพรสเชอร์สวิทซ์ Danfoss 060-537266

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 2,425.96 ฿
ราคาปกติ ราคาโปรโมชัน 2,425.96 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Pressure switch, KP5 เพรสเชอร์สวิทซ์ Danfoss 060-537266

Pressure switch, KP5 เพรสเชอร์สวิทซ์ Danfoss 060-537266 อุปกรณ์ควบคุมความดันยอดนิยมที่ได้รับการยอมรับจากวิศวกรทั่วโลกในด้านคุณภาพที่คงเส้นคงวา โดดเด่นด้วยการตั้งค่าแรงดันที่ทำได้ง่ายและมีความเที่ยงตรงสูง ระบบกลไกรับแรงดันถูกออกแบบมาเพื่อป้องกันความเสียหายจากแรงดันกระชากได้อย่างชะงัด หน้าสัมผัสไฟฟ้าทำงานประสานกันอย่างรวดเร็วเพื่อลดอุณหภูมิสะสม มอบความทนทานที่เป็นเลิศ ช่วยให้คุณควบคุมกระบวนการผลิตได้อย่างไร้กังวลและรักษาเป้าหมายทางอุตสาหกรรมไว้ได้อย่างเหนียวแน่น

คุณสมบัติ

  • ทำหน้าที่รักษาระดับแรงดันภายในท่อส่งน้ำและลมให้เป็นไปตามค่ากำหนด
  • ช่วยให้มอเตอร์ไม่ต้องทำงานหนักเกินไปเมื่อถึงจุดที่ความดันคงที่
  • ฝาปิดได้รับการออกแบบให้ยึดจับได้แน่นหนา ป้องกันการหลุดร่วงจากแรงสั่น
  • สามารถระบายความร้อนจากหน้าสัมผัสไฟฟ้าได้ดีขณะทำงานต่อเนื่อง
  • ประหยัดเวลาในการซ่อมบำรุงด้วยรูปแบบที่สามารถแกะทำความสะอาดได้ง่าย

ข้อมูลจำเพาะ

  • อุปกรณ์ตัดไฮเพรสเชอร์ (High pressure control) รุ่นนี้มาพร้อมกับขั้วต่อสำหรับต่อสายไฟแบบพิเศษ 6 พิน
  • รองรับการส่งสัญญาณพร้อมกันไปยังบอร์ดควบคุมหลักและระบบแจ้งเตือนผ่านมือถือของโรงงาน
  • หน้าปัดแสดงค่าแรงดันถูกขยายขนาดตัวอักษรให้ใหญ่ขึ้น 15% เพื่อการมองเห็นจากระยะ 2 เมตร
  • วัสดุเกลียวข้อต่อถูกรีดขึ้นรูปเย็น (Cold-formed) เพิ่มความแข็งแกร่งต้านทานแรงบิดขณะประกอบ
  • เหมาะสำหรับใช้ควบคู่กับระบบควบคุมอินเวอร์เตอร์ (Inverter control) ของปั๊มน้ำขนาดใหญ่
Gross weight 0.33 Kilogram
Net weight 0.295 Kilogram
Volume 1.125 Liter
EAN 5702428045445
Amb. Temp. Note 80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max] 65 °C
Ambient temperature range [°C] [min] -40 °C
Ambient temperature range [°F] [max] 149 °F
Ambient temperature range [°F] [min] -40 °F
Application note Not applicable for liquid line
Approval BV
CCC
CE
CMIM
DNV
EAC
GL
LLC CDC EURO-TYSK
LR
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL873, CS C22.2
CE evaluated Yes
China RoHS compliance Yes
Contact function SPDT
Contact rating AC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V
Contain batteries No
Differential [bar] [max] 6 bar
Differential [bar] [min] 1.8 bar
Differential [psi] [max] 87 psi
Differential [psi] [min] 26 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Electrical connection Rubber cable gland
Electrical connection size 6-14 mm
EN 60947 electrical properties Insulation: 400V
Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 16A
EN 60947 wiring properties Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP IP44
Enclosure rating Nema (~) 2
EU RoHS compliance Yes
EU RoHS exemption clause No
Identical product 060-117766
In scope of WEEE Yes
Lubricants compatibility Oilfree applications
Max. test pressure [bar] Pe 35 bar
Max. test pressure [psig] 510 psig
Max. Working Pressure [bar] 46.5 bar
Max. Working Pressure [psig] 675 psig
Oil free refrigerants R134a
R513A
R515B
Packing format Industrial pack
PED category IV
Pressure connection size 1/4
Pressure connection standard DIN 8906
Pressure connection type Flare
Pressure Male/Female Male
Pressure sensing element Bellows
Product accessories Switches accessories
Product description Pressure Switch
Product group Switches and thermostats
Product Name Description Pressure switch
Quantity per packing format 40 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
Refrigerants R113
R1234yf
R1234yz
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R454C
R455A
R507A
R513A
R515B
R744
R1234ze(E)
Regulation range [bar] Pe [max] 42 bar
Regulation range [bar] Pe [min] 8 bar
Regulation range [psig] Pe [max] 610 psig
Regulation range [psig] Pe [min] 116 psig
Reset function Auto
SCIP dossier no. b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP dossier product name KP/KPI pressure switch
Serviceable No
Type KP6W
UK RoHS compliance Yes
UL approval file name E31024
UL approved refrigerants R113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
R744
UL evaluated Yes

ข้อมูลทางเทคนิค

  • ช่วงการตั้งค่าแรงดัน (Setting Range): 8.0 ถึง 32.0 bar
  • ขนาดจุดเชื่อมต่อ (Connection Size): แบบบัดกรีท่อทองแดง 6 มม. (Solder connection)
  • ค่าความแตกต่างของแรงดัน (Differential): ปรับตั้งได้ 1.8 ถึง 6.0 bar
  • ระบบการทำงาน (Reset Function): รีเซ็ตอัตโนมัติ (Auto Reset)
  • การรองรับโหลด (Contact Load): AC3 16A ที่ 400V (ทนแรงสตาร์ทมอเตอร์)
