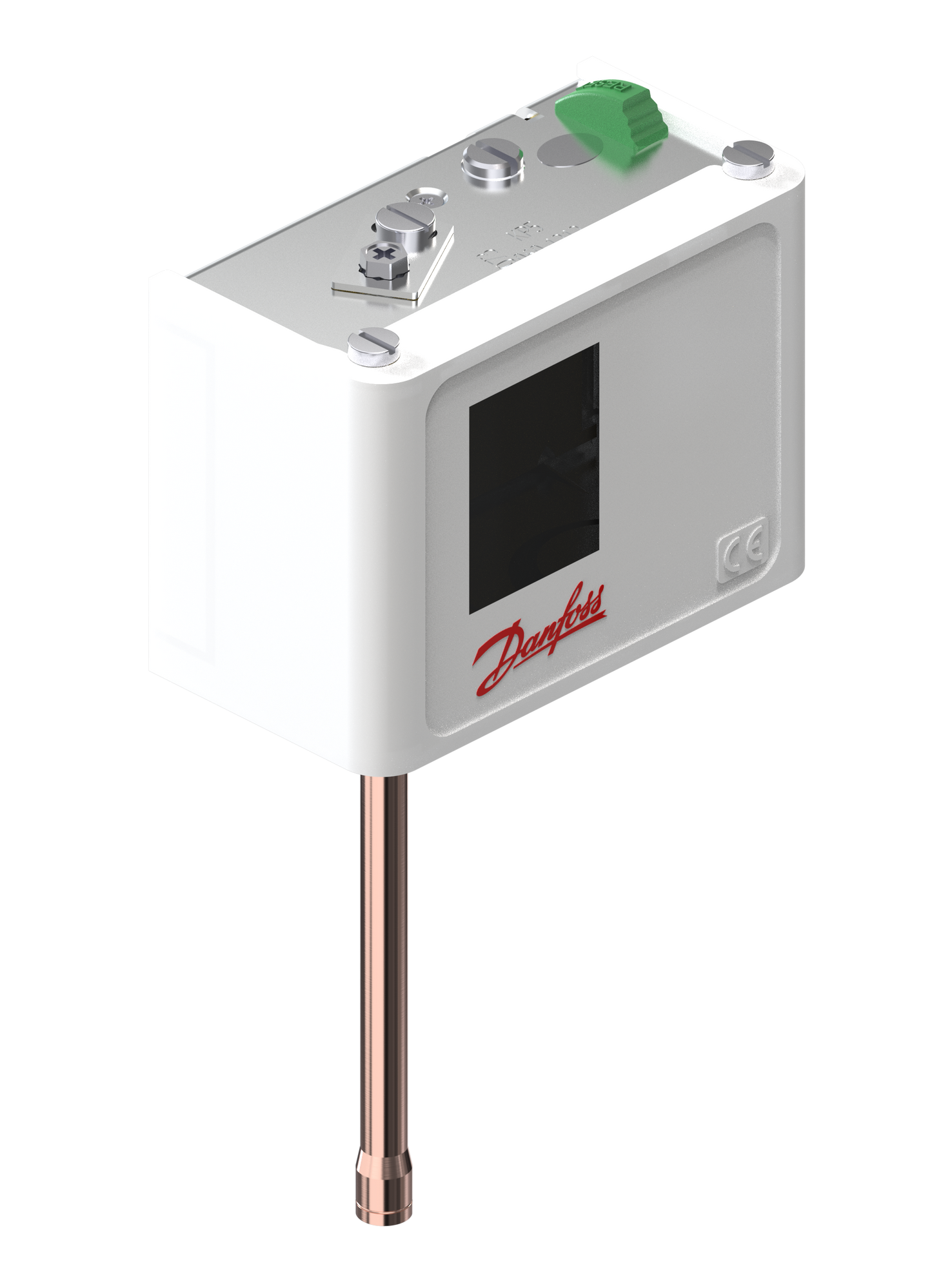

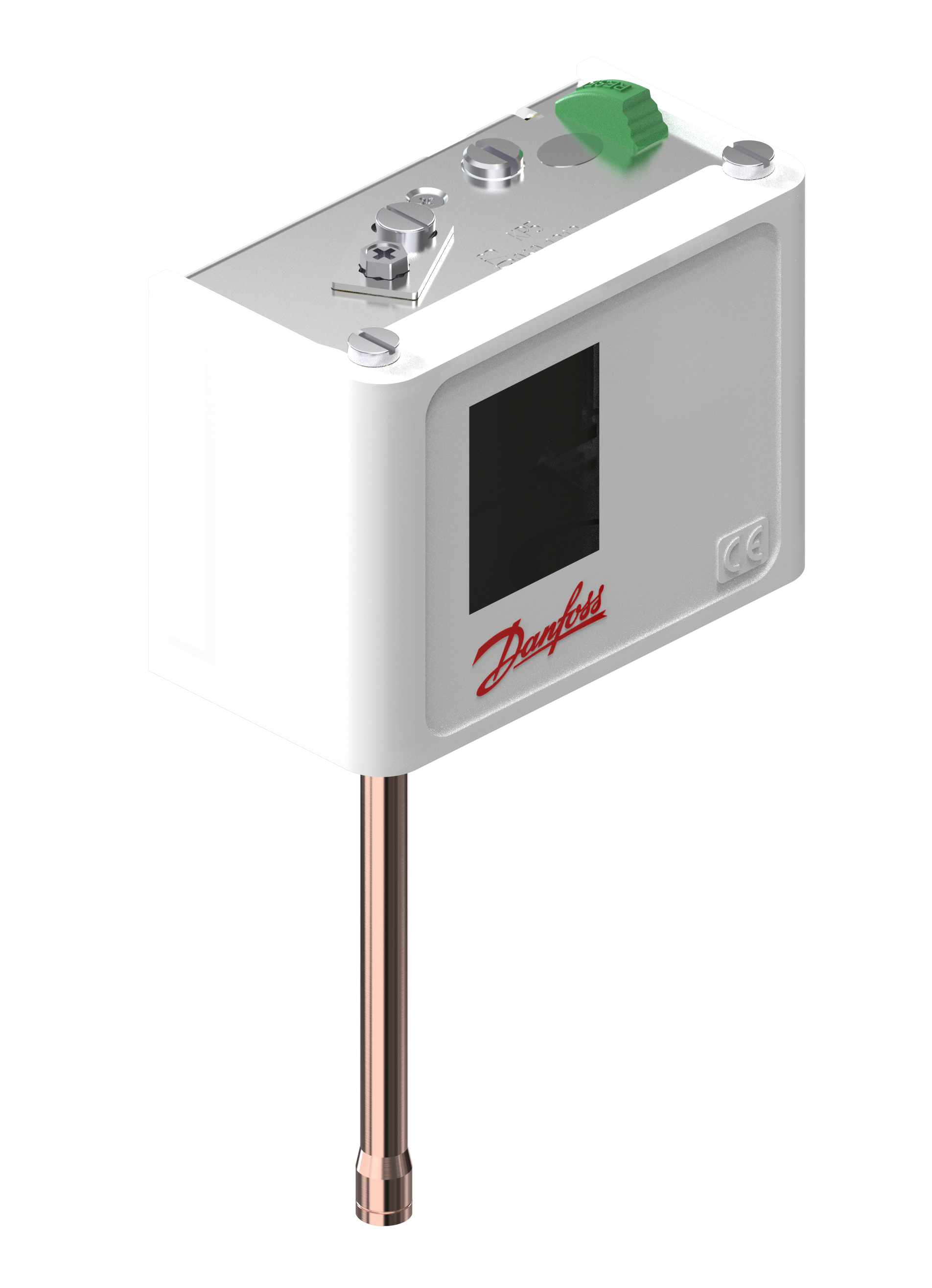

Pressure switch, KP5 เพรสเชอร์สวิทซ์ Danfoss 060-133466
Pressure switch, KP5 เพรสเชอร์สวิทซ์ Danfoss 060-133466
DANFOSS
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
4,594.63 ฿
ราคาปกติ
ราคาโปรโมชัน
4,594.63 ฿
ราคาต่อหน่วย
/
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Pressure switch, KP5 เพรสเชอร์สวิทซ์ Danfoss 060-133466
Pressure switch, KP5 เพรสเชอร์สวิทซ์ Danfoss 060-133466 สวิตช์แรงดันที่พัฒนาขึ้นด้วยความเชี่ยวชาญด้านกลศาสตร์ของไหลและการควบคุมไฟฟ้าขั้นสูง แบรนด์ Danfoss ให้ความสำคัญกับระบบ Bellows ที่มีการขยายตัวและหดตัวอย่างสมมาตรเพื่อความถูกต้องแม่นยำในการตรวจจับ อุปกรณ์นี้สามารถทนกระแสไฟฟ้าเริ่มเดินเครื่องของมอเตอร์ได้อย่างสบายๆ ทำให้เป็นที่นิยมอย่างแพร่หลายในวงการวิศวกรรมปรับอากาศ การออกแบบช่องต่อสายไฟขนาดใหญ่ช่วยลดอุปสรรคในการติดตั้ง และมั่นใจได้ในเรื่องของการป้องกันไฟฟ้ารั่วไหลสู่ตัวถังอย่างสมบูรณ์แบบ
ดูรายละเอียดทั้งหมด
คุณสมบัติ
คุณสมบัติ
- รองรับการใช้งานเพื่อป้องกัน Overpressure ในระบบปรับอากาศขนาดกลางถึงใหญ่
- สายไฟยึดติดแน่นหนาด้วยน็อตล็อค ป้องกันสายหลุดล่วงเมื่อมีแรงกระชาก
- วัสดุยางซีลทนต่อสารหล่อลื่นและน้ำมันคอมเพรสเซอร์ได้อย่างดีเยี่ยม
- ตัวเครื่องระบุรายละเอียดโมเดลและพิกัดชัดเจนด้วยป้ายเนมเพลทที่ทนทาน
- ยืดอายุการทำงานของชิ้นส่วนต่างๆ ในระบบทำความเย็นได้อย่างเห็นผล
ข้อมูลจำเพาะ
ข้อมูลจำเพาะ
- ช่วงการตั้งค่าแรงดัน (Regulation range): 8.0 ถึง 32.0 bar สำหรับเครื่องทำความเย็นอุตสาหกรรม
- ระบบการรีเซ็ต (Reset function): แบบอัตโนมัติ (Auto-reset) รอบการตัดต่อสูง
- การเชื่อมต่อท่อ (Connection): เกลียว 3/8 in Flare สำหรับท่อน้ำยาขนาดใหญ่ขึ้นเล็กน้อย
- ความทนทานต่อน้ำแข็ง (Frost resistance): ทนต่ออุณหภูมิติดลบที่ -40 °C โดยไม่ทำให้เบลโลว์เสียหาย
- มาตรฐานกันน้ำกันฝุ่น (Enclosure rating): IP44 (เมื่อประกอบชุดฝาครอบสายไฟแบบเตเปอร์)
| Gross weight | 0.376 Kilogram |
| Net weight | 0.329 Kilogram |
| Volume | 1.281 Liter |
| EAN | 5702428832571 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Application note | Not applicable for liquid line |
| Approval |
BV CCC CE CMIM DNV EAC GL LLC CDC EURO-TYSK LR LVD PZH RINA RMRS RoHS China c UL us UL873, CS C22.2 |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating |
AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V |
| Contain batteries | No |
| Differential [bar] | 3 bar |
| Differential [psi] | 43 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties |
Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A |
| EN 60947 wiring properties |
Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Equipment | Special connector |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 35 bar |
| Max. test pressure [psig] | 510 psig |
| Max. Working Pressure [bar] | 35 bar |
| Max. Working Pressure [bar] | 46.5 bar |
| Max. Working Pressure [psig] | 675 psig |
| Oil free refrigerants |
R134a R513A R515B |
| Packing format | Industrial pack |
| PED category | IV |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Quantity per packing format | 40 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants |
R113 R1234yf R1234yz R124 R134a R22 R404A R407A R407C R407F R407H R410A R422B R422D R438A R448A R449A R449B R450A R452A R454C R455A R507A R513A R515B R744 R1234ze(E) |
| Regulation range [bar] Pe [max] | 42 bar |
| Regulation range [bar] Pe [min] | 8 bar |
| Regulation range [psig] Pe [max] | 610 psig |
| Regulation range [psig] Pe [min] | 116 psig |
| Reset function | Auto |
| SCIP dossier no. | b1323c86-8856-44cc-b1c6-6849abe37ee4 |
| SCIP dossier product name | KP/KPI pressure switch |
| Serviceable | No |
| Type | KP6W |
| UK RoHS compliance | Yes |
| UL approval file name | E31024 |
| UL approved refrigerants |
R113 R124 R134a R22 R404A R407A R407C R407F R407H R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A R515B R744 |
| UL evaluated | Yes |
