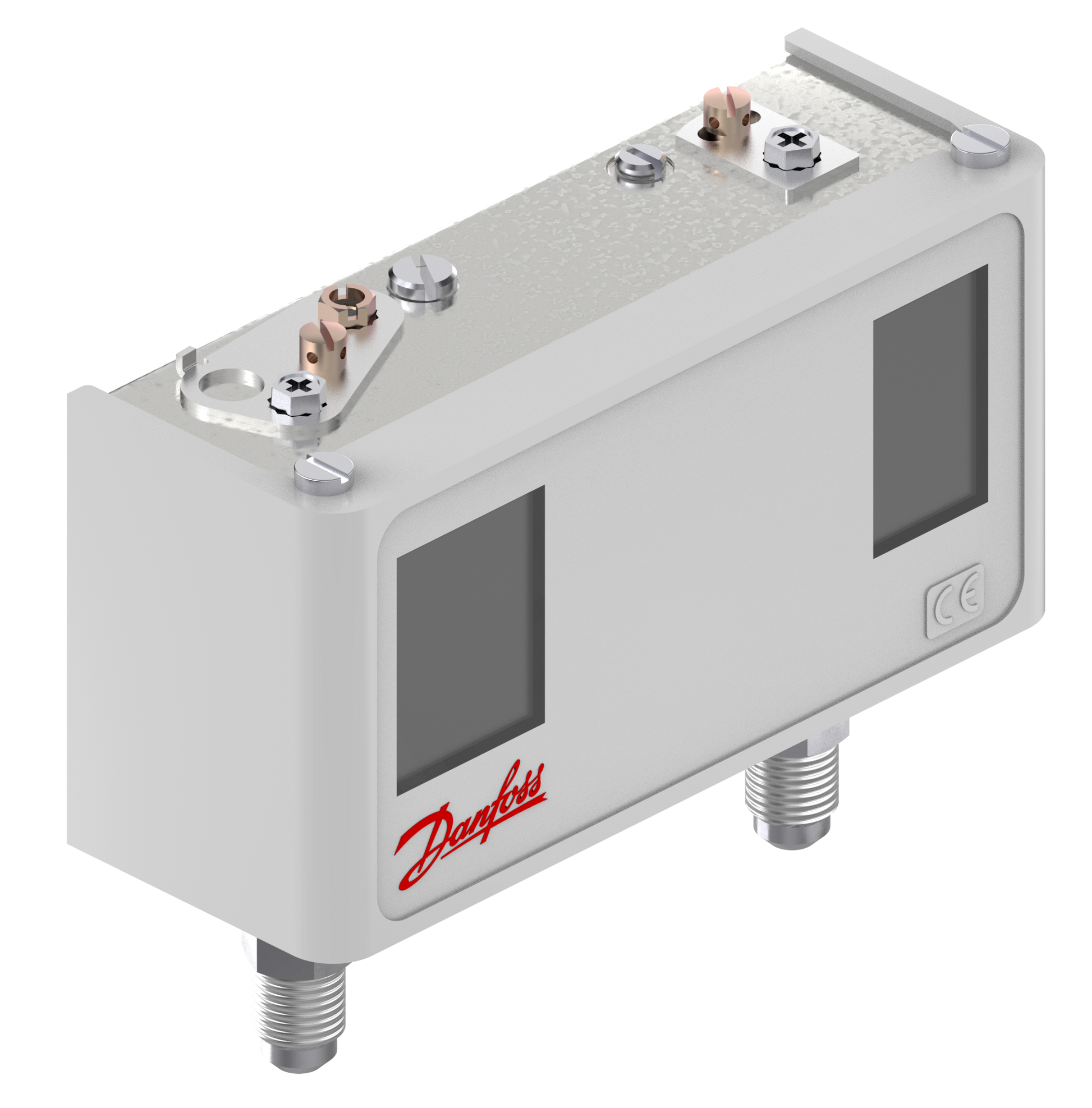

Pressure switch, KP17W เพรสเชอร์สวิทซ์ Danfoss 060-535666

Pressure switch, KP17W เพรสเชอร์สวิทซ์ Danfoss 060-535666

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 2,646.50 ฿
ราคาปกติ ราคาโปรโมชัน 2,646.50 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Pressure switch, KP17W เพรสเชอร์สวิทซ์ Danfoss 060-535666

Pressure switch, KP17W เพรสเชอร์สวิทซ์ Danfoss 060-535666 อุปกรณ์ควบคุมและตรวจสอบแรงดันประสิทธิภาพสูงจากแบรนด์ Danfoss ผู้นำนวัตกรรมระบบทำความเย็นระดับโลกที่วิศวกรยอมรับ ออกแบบมาเพื่อทำหน้าที่ตัดต่อวงจรไฟฟ้าเมื่อระดับแรงดันในระบบเกิดความผิดปกติ ช่วยป้องกันความเสียหายต่อคอมเพรสเซอร์และอุปกรณ์สำคัญได้อย่างแม่นยำ โครงสร้างผลิตจากวัสดุเกรดอุตสาหกรรมที่ทนทานต่อแรงสั่นสะเทือนสูง ทำงานด้วยกลไกที่ตอบสนองอย่างรวดเร็วและเชื่อถือได้ มอบความปลอดภัยสูงสุดพร้อมช่วยยืดอายุการทำงานของเครื่องจักรในระยะยาว

คุณสมบัติ

  • ออกแบบมาเพื่อรองรับการใช้งานกับสารทำความเย็นกลุ่ม HFC และ HCFC อย่างมีประสิทธิภาพ
  • โครงสร้างภายนอกทนทานต่อแรงกระแทกในสภาพแวดล้อมของโรงงานอุตสาหกรรม
  • มีระบบตัดการทำงานที่รวดเร็วเพื่อป้องกันความเสียหายต่อคอมเพรสเซอร์
  • ติดตั้งได้อย่างสะดวกรวดเร็วด้วยจุดเชื่อมต่อสายไฟที่ออกแบบมาให้เข้าถึงง่าย
  • กลไกภายในให้ความเสถียรสูงในการควบคุมระดับแรงดันของระบบ

ข้อมูลจำเพาะ

  • รหัสสั่งซื้อ (Order Code) 060-535666
  • รุ่นและประเภท (Model) KP17W สวิทช์ความดันคู่ (Dual Pressure Switch)
  • ช่วงแรงดันการใช้งาน (Pressure Range) ฝั่งแรงดันต่ำ -0.2 ถึง 7.5 bar / ฝั่งแรงดันสูง 6 ถึง 32 bar
  • ระบบการรีเซ็ต (Reset Function) อัตโนมัติทั้งสองฝั่ง (Auto Low / Auto High)
  • ขนาดจุดเชื่อมต่อ (Connection Size) เกลียว Flare 1/4 นิ้ว (6 mm)
Gross weight 0.497 Kilogram
Net weight 0.452 Kilogram
Volume 0.702 Liter
EAN 5702428038614
Amb. Temp. Note 80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max] 65 °C
Ambient temperature range [°C] [min] -25 °C
Ambient temperature range [°F] [max] 149 °F
Ambient temperature range [°F] [min] -13 °F
Approval BV
CCC
CE
DNV
EAC
GL
LLC CDC EURO-TYSK
LR
LVD
PED
PZH
RINA
RMRS
RoHS China
c UL us UL873, CS C22.2
CE evaluated Yes
China RoHS compliance Yes
Contact function SPDT
Contact rating AC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V
Contain batteries No
Differential left side [bar] [max] 4 bar
Differential left side [bar] [min] 0.7 bar
Differential left side [psi] [max] 58 psi
Differential left side [psi] [min] 10 psi
Differential right side [bar] 4 bar
Differential right side [psi] 58 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Electrical connection Rubber cable gland
Electrical connection size 6-14 mm
EN 60947 electrical properties Insulation: 400V
Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 16A
EN 60947 wiring properties Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP IP44
Enclosure rating Nema (~) 2
EU RoHS compliance Yes
EU RoHS exemption clause No
Fluid Group 1
Identical product 060-126766
In scope of WEEE Yes
Lubricants compatibility Oilfree applications
Max.test press.left side[bar] 20 bar
Max.test press.right side[bar] 35 bar
MWP left side [bar] Pe 17 bar
MWP left side [psig] Pe 245 psig
Max. Working Pressure [bar] 46.5 bar
Max. Working Pressure [psig] 675 psig
Oil free refrigerants R134a
R513A
R515B
Packing format Industrial pack
PED category IV
Pressure connection size 1/4
Pressure connection standard DIN 8906
Pressure connection type Flare
Pressure Male/Female Male
Pressure sensing element Bellows
Product accessories Switches accessories
Product description Pressure Switch
Product group Switches and thermostats
Product Name Description Pressure switch
Quantity per packing format 40 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
Refrigerants R113
R1234yf
R1234yz
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R454C
R455A
R507A
R513A
R515B
R744
R1234ze(E)
Regulation range [bar] Pe [max] 42 bar
Regulation range [bar] Pe [min] 8 bar
Regulation range [psig] Pe [max] 610 psig
Regulation range [psig] Pe [min] 116 psig
Reset function Auto
SCIP dossier no. b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP dossier product name KP/KPI pressure switch
Serviceable No
Type KP6W
UK RoHS compliance Yes
UL approval file name E31024
UL approved refrigerants R113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
R744
UL evaluated Yes

ข้อมูลทางเทคนิค

  • ช่วงการปรับความดันด้านแรงดันต่ำ (LP): -0.2 ถึง 7.5 บาร์
  • ประเภทรีเซ็ตด้านแรงดันต่ำ (LP): Auto (อัตโนมัติ)
  • ช่วงการปรับความดันด้านแรงดันสูง (HP): 8 ถึง 32 บาร์
  • ประเภทรีเซ็ตด้านแรงดันสูง (HP): Auto (อัตโนมัติ)
  • พิกัดทางไฟฟ้า: AC-15 = 10 A, 400 V
