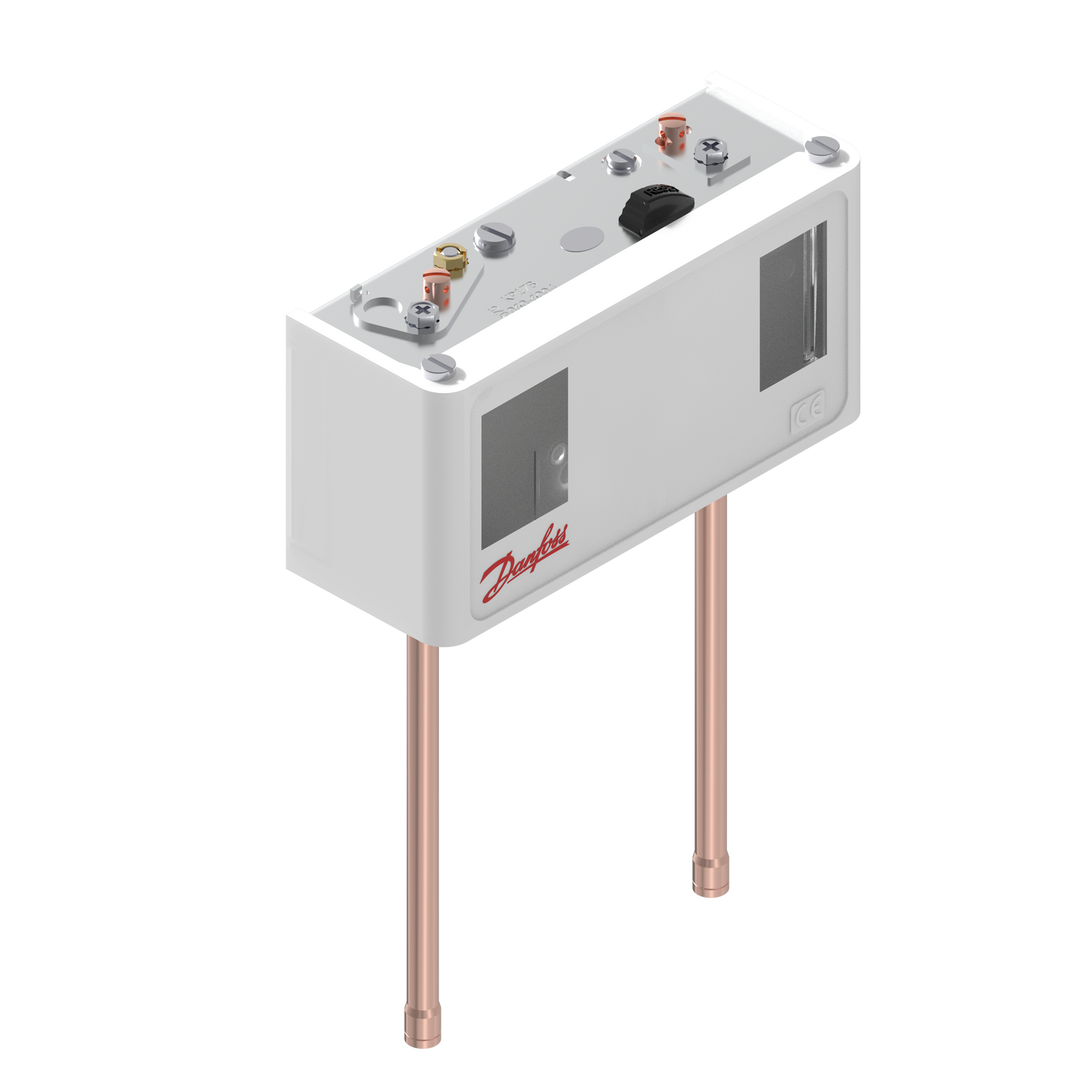

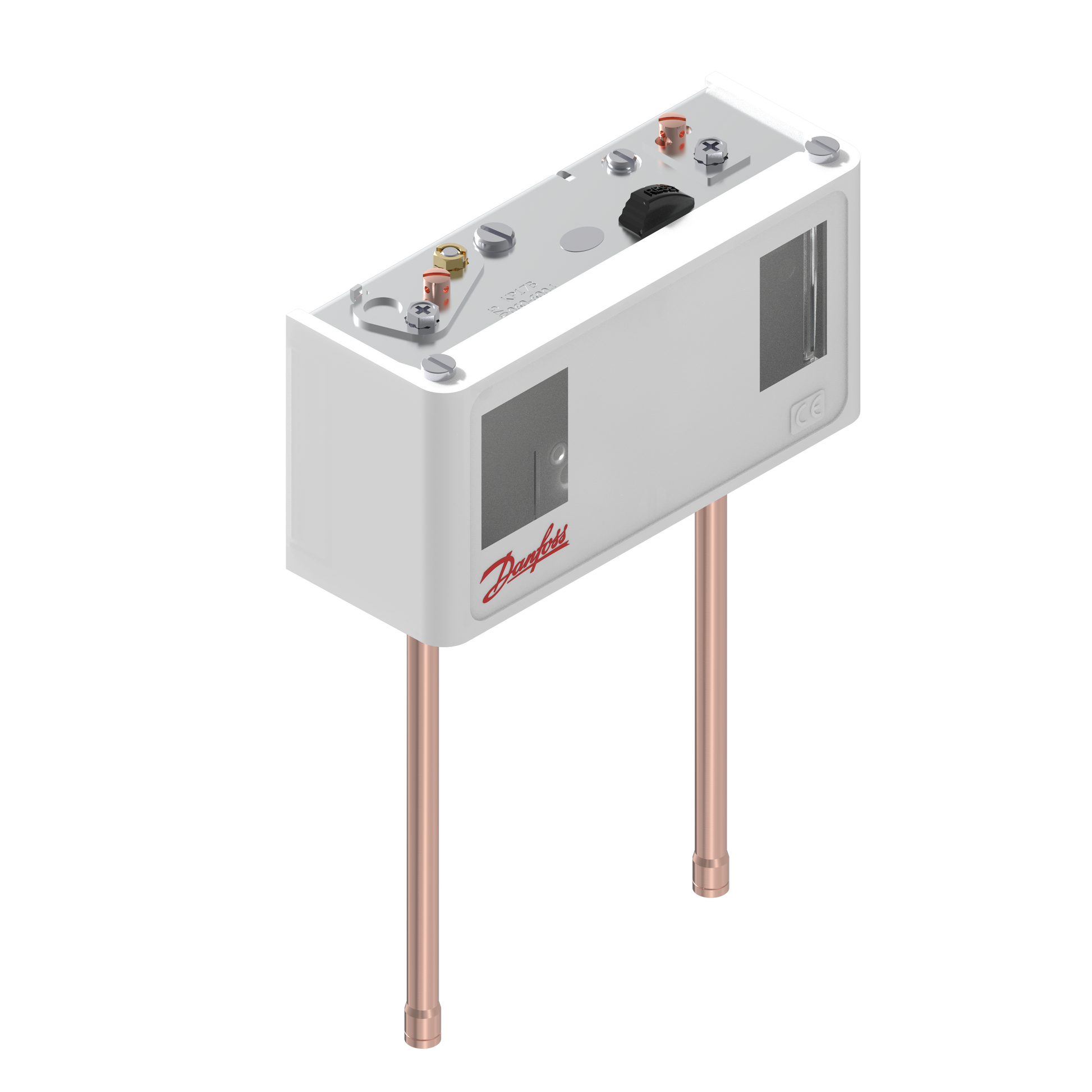

Pressure switch, KP17B เพรสเชอร์สวิทซ์ Danfoss 060-127466

Pressure switch, KP17B เพรสเชอร์สวิทซ์ Danfoss 060-127466

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 3,969.76 ฿
ราคาปกติ ราคาโปรโมชัน 3,969.76 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Pressure switch, KP17B เพรสเชอร์สวิทซ์ Danfoss 060-127466

Pressure switch, KP17B เพรสเชอร์สวิทซ์ Danfoss 060-127466 เพรสเชอร์สวิทซ์ประสิทธิภาพสูงจากค่าย Danfoss ผู้เชี่ยวชาญเทคโนโลยีโซลูชันระบบควบคุมระดับสากล ได้รับการพัฒนามาให้ตอบสนองต่อแรงดันตกหรือเกินได้อย่างทันท่วงที ทำงานด้วยกลไกสวิทซ์แบบตัดอย่างฉับไว ช่วยลดความร้อนสะสมที่หน้าสัมผัส ป้องกันความเสียหายรุนแรงต่อเครื่องจักรหลัก โครงสร้างรับประกันความทนทานต่อแรงกระแทกในสภาพการทำงานจริง เป็นอุปกรณ์หัวใจสำคัญที่คอยปกป้องระบบทำความเย็นให้ทำงานได้อย่างราบรื่นและมีประสิทธิภาพตามมาตรฐานความปลอดภัยสูงสุด

คุณสมบัติ

  • ตัวเครื่องมีการซีลด้วยปะเก็นคุณภาพสูงป้องกันหยดน้ำเกาะภายใน
  • สามารถติดตั้งในแนวตั้งหรือแนวนอนได้โดยไม่ส่งผลต่อค่าแรงดัน
  • สกรูปรับตั้งมีการทำเครื่องหมายบวกและลบเพื่อความเข้าใจที่ง่ายขึ้น
  • ชิ้นส่วนเคลื่อนที่ภายในมีแรงเสียดทานต่ำลดการสึกหรอ
  • เหมาะสำหรับการคุมสภาวะสุญญากาศในระบบแอร์ก่อนการเติมน้ำยา

ข้อมูลจำเพาะ

  • รหัสสั่งซื้อ (Order Code) 060-127466
  • รุ่นและประเภท (Model) KP17B สวิทช์ความดันคู่ ป้องกันแรงดันสูงเกิน
  • ช่วงแรงดันการใช้งาน (Pressure Range) ฝั่ง Low -0.2 ถึง 7.5 bar / ฝั่ง High 6 ถึง 32 bar
  • ระบบการรีเซ็ต (Reset Function) ฝั่ง Low อัตโนมัติ / ฝั่ง High รีเซ็ตด้วยมือ (Manual High)
  • การเชื่อมต่อสายไฟ (Cable Entry) รูร้อยสายไฟมาตรฐาน Rubber Cable Gland
Gross weight 0.548 Kilogram
Net weight 0.515 Kilogram
Volume 1.281 Liter
EAN 5702428016100
Amb. Temp. Note 80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max] 65 °C
Ambient temperature range [°C] [min] -25 °C
Ambient temperature range [°F] [max] 149 °F
Ambient temperature range [°F] [min] -13 °F
Application note Not applicable for liquid line
Approval BV
CCC
CE
CMIM
DNV
EAC
GL
LLC CDC EURO-TYSK
LR
LVD
PED
PZH
RINA
RMRS
RoHS China
c UL us UL873, CS C22.2
CE evaluated Yes
China RoHS compliance Yes
Contact function SPDT
Contact rating AC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V
Contain batteries No
Differential left side [bar] [max] 4 bar
Differential left side [bar] [min] 0.7 bar
Differential left side [psi] [max] 58 psi
Differential left side [psi] [min] 10 psi
Differential right side [bar] 4 bar
Differential right side [psi] 58 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Electrical connection Rubber cable gland
Electrical connection size 6-14 mm
EN 60947 electrical properties Insulation: 400V
Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 16A
EN 60947 wiring properties Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP IP30
Enclosure rating Nema (~) 1
EU RoHS compliance Yes
EU RoHS exemption clause No
Fluid Group 1
In scope of WEEE Yes
Lubricants compatibility Oilfree applications
Max.test press.left side[bar] 20 bar
Max.test press.right side[bar] 35 bar
MWP left side [bar] Pe 17 bar
MWP left side [psig] Pe 245 psig
Max. Working Pressure [bar] 46.5 bar
Max. Working Pressure [psig] 675 psig
Oil free refrigerants R134a
R513A
R515B
Packing format Industrial pack
PED category IV
Pressure connection size 1/4
Pressure connection standard DIN 8906
Pressure connection type Flare
Pressure Male/Female Male
Pressure sensing element Bellows
Product accessories Switches accessories
Product description Pressure Switch
Product group Switches and thermostats
Product Name Description Pressure switch
Quantity per packing format 40 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
Refrigerants R113
R1234yf
R1234yz
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R454C
R455A
R507A
R513A
R515B
R744
R1234ze(E)
Regulation range [bar] Pe [max] 42 bar
Regulation range [bar] Pe [min] 8 bar
Regulation range [psig] Pe [max] 610 psig
Regulation range [psig] Pe [min] 116 psig
Reset function Auto
SCIP dossier no. b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP dossier product name KP/KPI pressure switch
Serviceable No
Type KP6W
UK RoHS compliance Yes
UL approval file name E31024
UL approved refrigerants R113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
R744
UL evaluated Yes

ข้อมูลทางเทคนิค

  • ลักษณะการรีเซ็ต: ควบคุมด้วยมือทั้งด้านแรงดันต่ำและแรงดันสูง (Manual Reset Dual)
  • ช่วงปรับแรงดันต่ำ: -0.9 ถึง 1.5 บาร์
  • ช่วงปรับแรงดันสูง: 8 ถึง 32 บาร์
  • วัสดุข้อต่อแรงดัน: ทองเหลืองแท้ปลอดสารสนิม
  • ความชื้นสัมพัทธ์สูงสุดในการทำงาน: 95% RH โดยไม่มีหยดน้ำเกาะ
