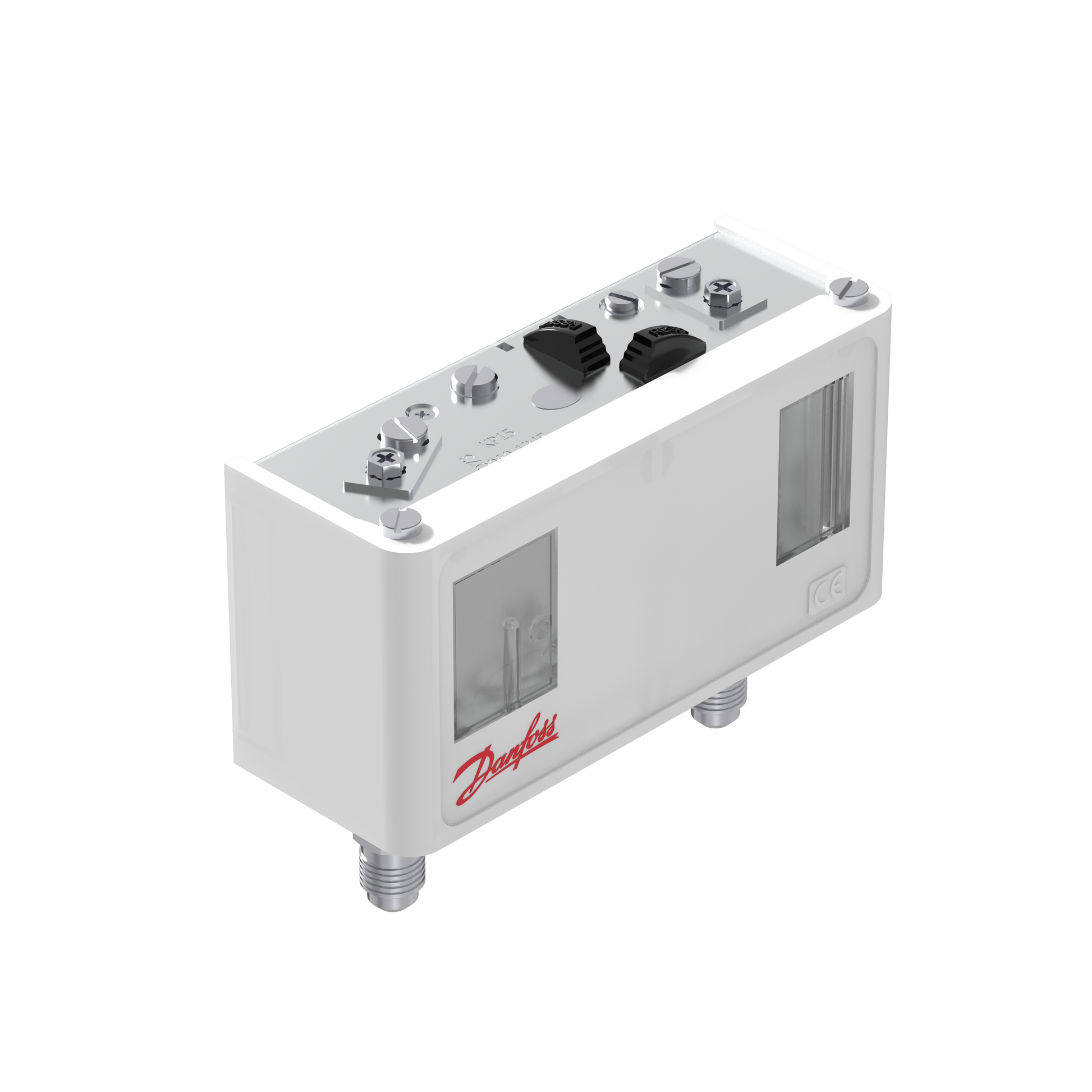

Pressure switch, KP15 เพรสเชอร์สวิทซ์ Danfoss 060-124566

Pressure switch, KP15 เพรสเชอร์สวิทซ์ Danfoss 060-124566

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 2,425.96 ฿
ราคาปกติ ราคาโปรโมชัน 2,425.96 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Pressure switch, KP15 เพรสเชอร์สวิทซ์ Danfoss 060-124566

Pressure switch, KP15 เพรสเชอร์สวิทซ์ Danfoss 060-124566 อุปกรณ์ตัดต่อและควบคุมแรงดันประสิทธิภาพสูงจาก Danfoss แบรนด์ที่สะท้อนถึงคุณภาพและความน่าเชื่อถือทางวิศวกรรม โดดเด่นด้วยกลไกการตั้งค่าที่ง่ายแต่ให้ความแม่นยำสูงสุด ทำหน้าที่เป็นอุปกรณ์เซฟตี้หลักในการปกป้องระบบทำความเย็นเมื่อเกิดวิกฤตแรงดันตกหรือพุ่งสูง หน้าสัมผัสสวิทซ์มีความแข็งแรงทนทานต่อการอาร์คไฟฟ้า ตัวเครื่องผลิตจากวัสดุเกรดพรีเมียมที่ต้านทานการสั่นสะเทือน เหมาะกับการใช้งานในอุตสาหกรรมหนักที่ต้องการความต่อเนื่องตลอด 24 ชั่วโมง

คุณสมบัติ

  • สามารถปรับตัวเข้ากับระบบท่อที่มีการขยายตัวจากความร้อนได้ดี
  • ระบบการล็อกฝาแบบใช้สกรูตัวเดียวช่วยให้เปิดบำรุงรักษาได้ไวขึ้น
  • การทำงานของหน้าสัมผัสไม่กะพริบ (Flicker-free) ให้ความเสถียรสูงสุด
  • น้ำหนักเบากว่ารุ่นในอดีตทำให้ประหยัดค่าขนส่งและติดตั้งง่ายขึ้น
  • มีค่าความแม่นยำในการตัดต่อซ้ำ (Repeatability) ที่ไว้ใจได้ในทุกสภาวะ

ข้อมูลจำเพาะ

  • รหัสสั่งซื้อ (Order Code) 060-124566
  • รุ่นและประเภท (Model) KP15 สวิทช์ความดันคู่ หน้าสัมผัสพิเศษทองคำ
  • ช่วงแรงดันการใช้งาน (Pressure Range) ฝั่ง Low -0.2 ถึง 7.5 bar / ฝั่ง High 6 ถึง 32 bar
  • ระบบการรีเซ็ต (Reset Function) ฝั่ง Low อัตโนมัติ / ฝั่ง High รีเซ็ตด้วยมือ
  • คุณสมบัติหน้าสัมผัส (Contact Point) หน้าสัมผัสทองคำ (Gold Contacts) สำหรับการใช้งานวงจร PLC
Gross weight 0.488 Kilogram
Net weight 0.443 Kilogram
Volume 0.861 Liter
EAN 5702428014762
Amb. Temp. Note 80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max] 65 °C
Ambient temperature range [°C] [min] -40 °C
Ambient temperature range [°F] [max] 149 °F
Ambient temperature range [°F] [min] -40 °F
Application note Not applicable for liquid line
Approval BV
CCC
CE
CMIM
DNV
EAC
GL
LLC CDC EURO-TYSK
LR
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL873, CS C22.2
CE evaluated Yes
China RoHS compliance Yes
Contact function SPDT
Contact rating AC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V
Contain batteries No
Differential left side [bar] 0.7 bar
Differential left side [psi] 10 psi
Differential right side [bar] 4 bar
Differential right side [psi] 58 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Electrical connection Rubber cable gland
Electrical connection size 6-14 mm
EN 60947 electrical properties Insulation: 400V
Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 16A
EN 60947 wiring properties Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP IP30
Enclosure rating Nema (~) 1
EU RoHS compliance Yes
EU RoHS exemption clause No
In scope of WEEE Yes
Lubricants compatibility Oilfree applications
Max.test press.left side[bar] 20 bar
Max.test press.right side[bar] 35 bar
MWP left side [bar] Pe 17 bar
MWP left side [psig] Pe 245 psig
MWP right side [bar] Pe 35 bar
MWP right side [psig] Pe 510 psig
Max. Working Pressure [bar] 46.5 bar
Max. Working Pressure [psig] 675 psig
Oil free refrigerants R134a
R513A
R515B
Packing format Industrial pack
PED category IV
Pressure connection size 1/4
Pressure connection standard DIN 8906
Pressure connection type Flare
Pressure Male/Female Male
Pressure sensing element Bellows
Product accessories Switches accessories
Product description Pressure Switch
Product group Switches and thermostats
Product Name Description Pressure switch
Quantity per packing format 40 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
Refrigerants R113
R1234yf
R1234yz
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R454C
R455A
R507A
R513A
R515B
R744
R1234ze(E)
Regulation range [bar] Pe [max] 42 bar
Regulation range [bar] Pe [min] 8 bar
Regulation range [psig] Pe [max] 610 psig
Regulation range [psig] Pe [min] 116 psig
Reset function Auto
SCIP dossier no. b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP dossier product name KP/KPI pressure switch
Serviceable No
Type KP6W
UK RoHS compliance Yes
UL approval file name E31024
UL approved refrigerants R113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
R744
UL evaluated Yes

ข้อมูลทางเทคนิค

  • ลักษณะพิเศษ: ตัวเครื่องเคลือบสารพิเศษป้องกันการเกิดสนิมในสภาพแวดล้อมเค็ม
  • กระแสไฟพิกัด AC-1: 16 A
  • ความต้านทานหน้าสัมผัส: น้อยกว่า 50 mΩ
  • ขนาดเกลียวข้อต่อแรงดัน: มาตรฐาน 1/4" Flare
  • รูปแบบการบรรจุ: บรรจุกล่องเดี่ยวพร้อมคู่มือการติดตั้ง
