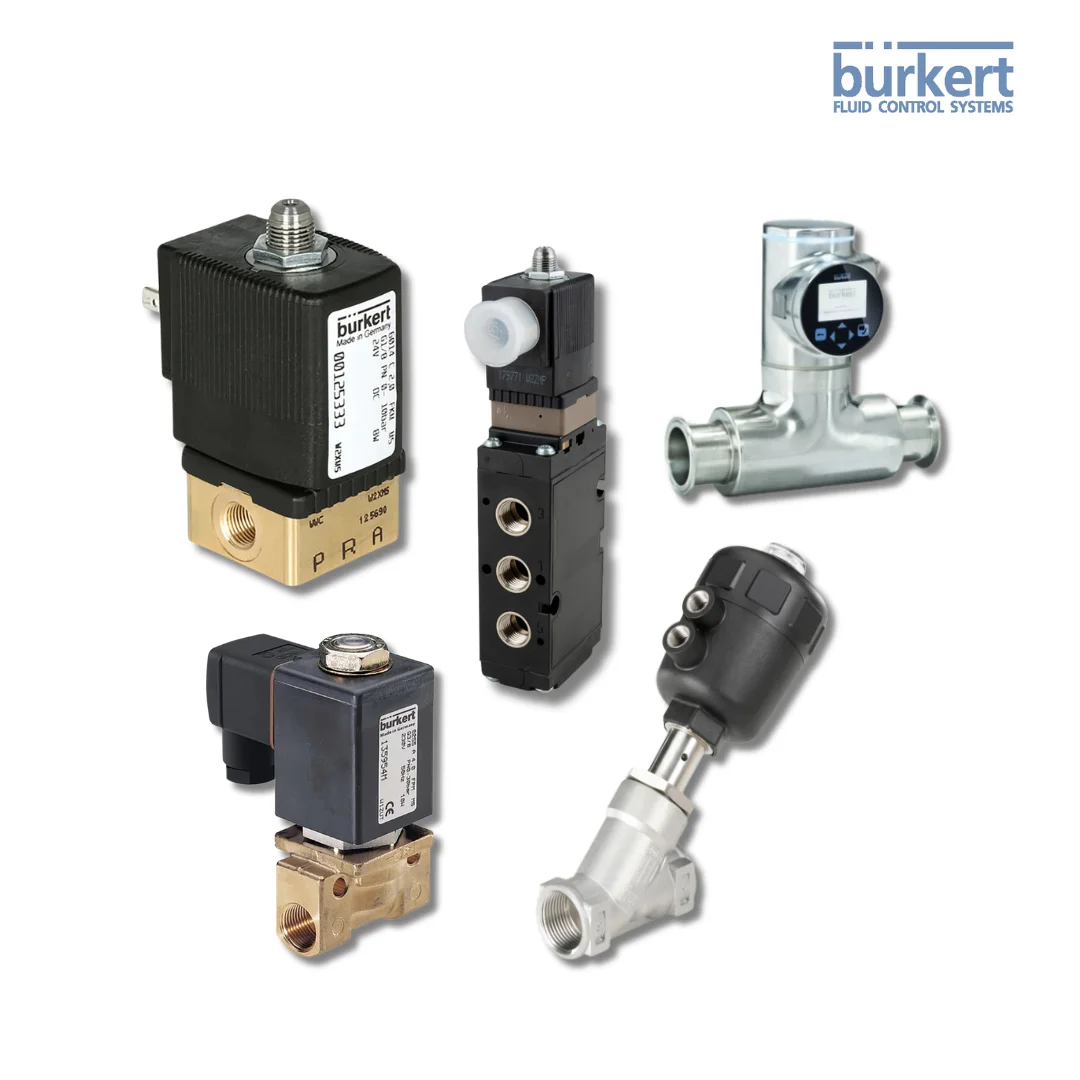

Burkert Proportional Solenoid Valve 239075, 2 port(s) , NC, 24 V dc, 1/8inRS Stock No.:125-8500หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:239075

Burkert Proportional Solenoid Valve 239075, 2 port(s) , NC, 24 V dc, 1/8inRS Stock No.:125-8500หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:239075

Burkert

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 8,147.00 ฿
ราคาปกติ 10,184.00 ฿ ราคาโปรโมชัน 8,147.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Burkert Proportional Solenoid Valve 239075, 2 port(s) , NC, 24 V dc, 1/8inRS Stock No.:125-8500หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:239075

2/2 Proportional Flow Valve - 2873 Series

Burkert proportional solenoid valves provide continuously adjustable and smooth control over the flow of fluid passing through them. Unlike conventional solenoid and process valves which offer only On or off control, Burkert 2873 series process valves use PWM (pulse width modulation) to give you the ability to adjust the flow from 0 to 100 percent. Design features such as the frictionless installation of the valve plunger, for exceptionally accurate adjustment and the tight sealing elastomeric seat make this the ideal valve for demanding and high accuracy control.
Features and Benefits
• Direct acting operation
• Available in either brass or stainless steel
• Excellent response time
• Globe valve operating principle
• IP65
• Plunger valve actuator
• <20 ms response time
• 9 W power consumption
• 1200Hz PWM frequency
• 100% continuously rated duty cycle
• Repeatability of less than 0.5% of full scale
• Less than 5% hysteresis
Applications
PWM solenoid control valves are suitable for applications which require more control over the flow of fluid than the simple on/off offered by standard solenoid valves.
Two-way Valves and Control Modules
Valves and control modules designed specifically to operate together, provide a valve opening which is proportional to the input signal and allows this to be correlated to the respective operating conditions.
Two-way Proportional Flow Valves & Control Modules
คุณสมบัติ Value
Supply Voltage 24 V dc
Number of Ports 2
Connection Size 1/8in
Connection 1/8 in G Female
Operation Direct
Default Valve Position NC
Suitable Applications Liquid, Neutral Gas
Type 2/2
Orifice Diameter 1.5mm
Series 2873
Body Material Brass
Maximum Working Pressure 10 bar
Thread Standard or Connection Type G
Connection Gender Female
Maximum Operating Temperature +55°C
Maximum Opening Time <20ms
Flow Factor Kv 0.06m³/h
