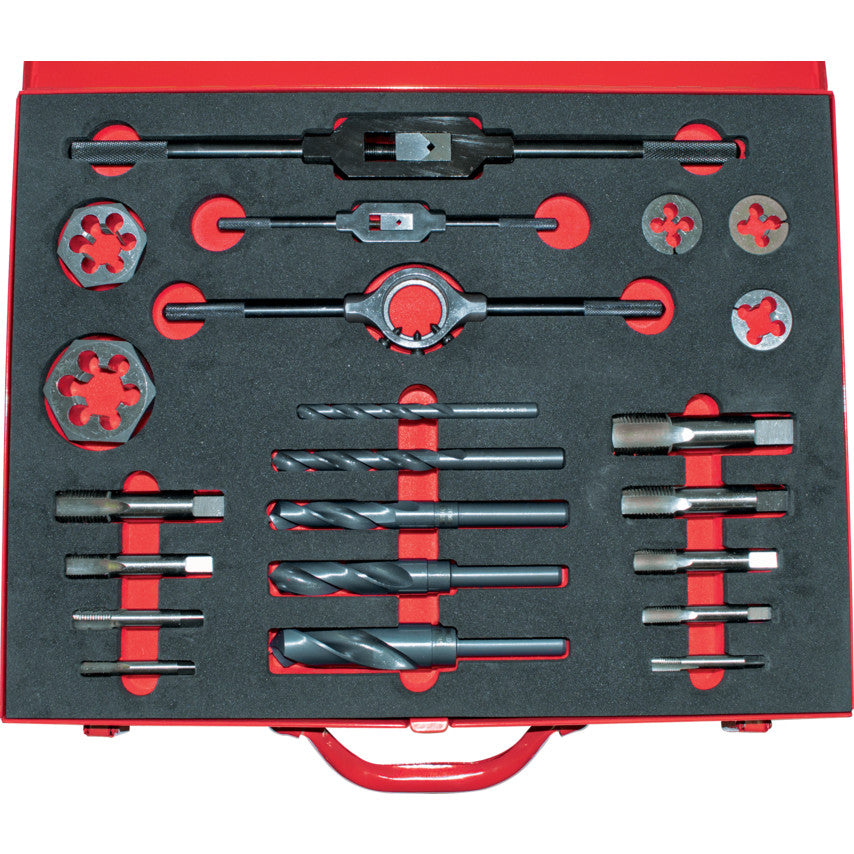

BSP(F) 22-PCE HSS THREADING SETIN CASE รหัส SHR0869989K

Chamfer : Plug

Chamfer : Second

Chamfer : Taper

Die Hex Width : 1.67 in.

Die Hex Width : 2.05 in.

Die Type : Hex Die Nut

Die Type : Round Die

Includes : (1) Die Stock: 1-5/16"

Includes : (1) Straight Flute Second Taps: 3/4"-14

Includes : (2) Tap Wrench: 1/16"-1/4"

Includes : (3) HSS Reduced Shank Drills (Blacksmiths) 1/2": 15.25mm, 19.00mm, 24.50mm

Includes : (4) Straight Flute Plug Taps: 1/8"-28, 1/4"-19, 3/8"-19, 1/2"-14

Includes : (4) Straight Flute Taper Taps: 1/8"-28, 1/4"-19, 3/8"-19, 1/2"-14

Includes : (6) HSS Jobber Drills: 8.80mm

Includes : 1/4"- 3/4"

Includes : 11.80mm

Includes : Metal Case

Kit Type : Tap, Die & Drill

Largest Thread Size : 3/4"

Number of Dies : 5

Number of Pieces : 22

Number of Taps : 9

Smallest Thread Size : 1/8"

Tap Dimensions Standard : BS 1127

Tap Dimensions Standard : BS 328/DIN 338N

Tap Dimensions Standard : DIN 1814

Tap Dimensions Standard : DIN 225

Tap Dimensions Standard : ISO 529

Tap Finish/Coating : Uncoated

Tap Material : High Speed Steel

Tap Type : Straight Flute

Tap Wrench Type : Straight-handle Bar

Thread Direction : Right Hand

Thread Size Range : 1/8 to 3/4

Thread Standard : BSP(F)
