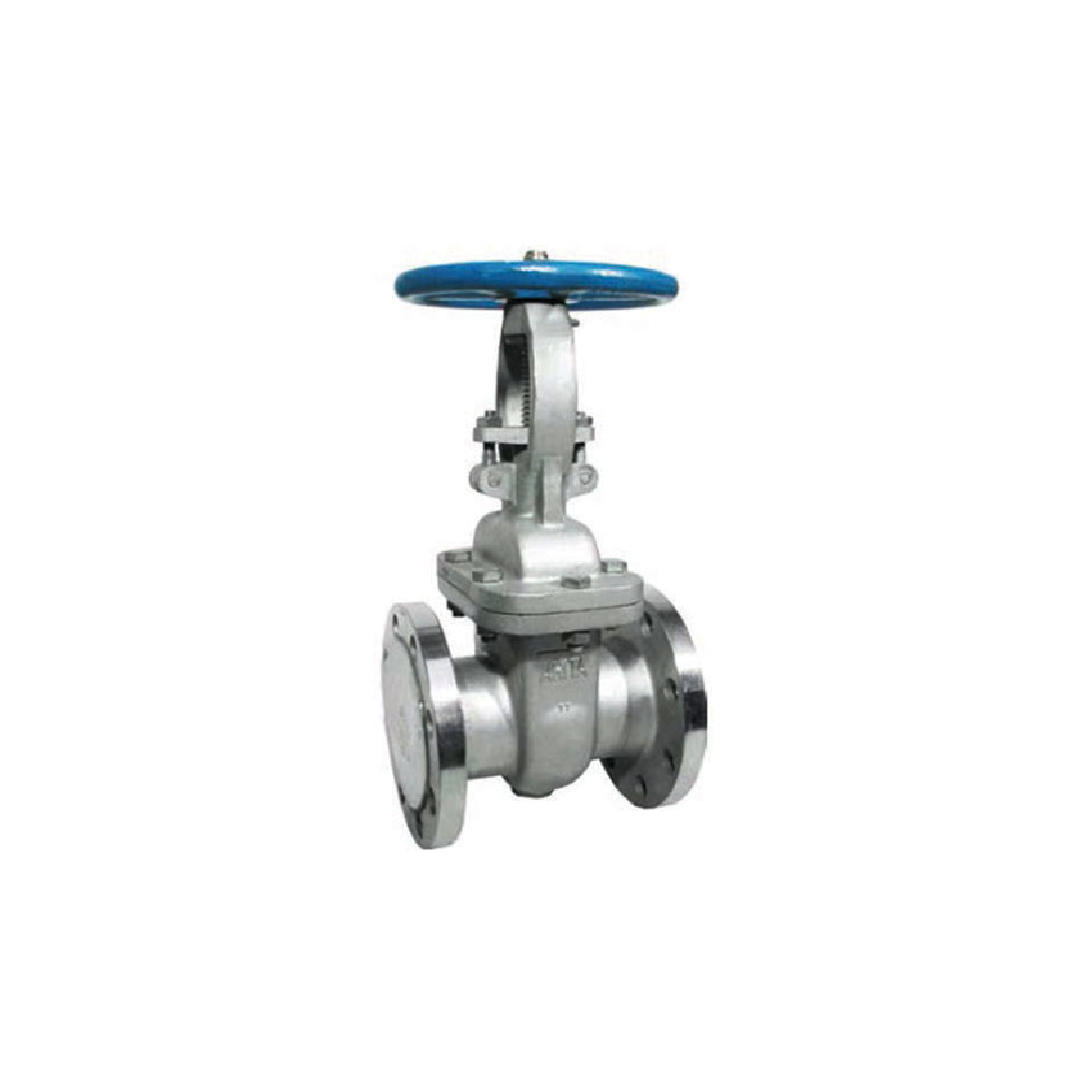

Arita Gate Valve SGA-F104 เกทวาล์ว 5 นิ้ว Stainless Steel

Arita Gate Valve SGA-F104 เกทวาล์ว 5 นิ้ว Stainless Steel

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

ARITA

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 28,800.00 ฿
ราคาปกติ ราคาโปรโมชัน 28,800.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Arita Gate Valve SGA-F104 เกทวาล์ว 5 นิ้ว Stainless Steel

Arita เกทวาล์วคือ วาล์วประตูน้ำ อาศัยประตูหรือที่เรียกว่าลิ้นวาล์ว (Gate) ที่ยกขึ้นหรือลงเพื่อควบคุมการไหลของของไหล Gate valve มีโอกาสการเกิด Pressure Drop น้อย ทนทานต่อแรงดันและอุณหภูมิสูงได้  เกทวาล์ว Arita เป็นวาล์วประตูที่มีคุณภาพ ทนทาน และมีประสิทธิภาพในการใช้งาน เหมาะสำหรับใช้ในงานอุตสาหกรรมต่างๆ ที่ต้องการควบคุมการไหลของของเหลวหรือก๊าซ วาล์วประตู Arita ผลิตจากวัสดุคุณภาพสูง เช่น เหล็กหล่อ เหล็กกล้าไร้สนิม และทองเหลือง ทำให้มีความทนทานต่อแรงดัน อุณหภูมิ และการกัดกร่อนได้ดี  Arita Gate Valve  เป็นตัวเลือกที่ดีสำหรับผู้ที่ต้องการวาล์วที่มีคุณภาพ ทนทาน และมีประสิทธิภาพในการใช้งาน รายละเอียดสินค้าดังต่อไปนี้

คุณสมบัติ

Specification Standard Arita Gate Valve SGA-F104

  • Face to face according to JIS B2002
  • Flange ends according to JIS B2212

Features Arita Gate Valve SGA-F104

  • Bolted bonnet, outside screw and yoke, rising stem
  • Solid wedge disc design
  • Hand – wheel operator
  • Available upon special request

Application Arita Gate Valve SGA-F104

  • For general and industrial services
  • Applicable medium : water, light oil

Test Requirements

Working Pressure 150 PSI
Maximum Pressure 200 PSI
Shell Test Pressure 300 PSI
Applicable Temperature ≤ 150℃

Maximum Pressure 300 PSI ( 20 Bar)
Shell Test Pressure 600 PSI ( 42 Bar)
Applicable Temperature -20~425 ℃

วัสดุ/ขนาดสินค้า

วัสดุ Gate Valve

No. Parts Material
1 Body SS316 / SS304
2 Disc SS316 / SS304
3 Nut SS304
4 Gasket Graphite
5 Bolt SS304
6 Bonnet SS316 / SS304
7 Stem packing Graphite
8 Hinge pin SS304
9 Bolt A193 – B8
10 Nut A194-8
11 Sleeve SS304
12 Wheel handle Cast iron
13 Stem nut A193- B8
14 Gland SS304
15 Stem SS304
16 Gland SS316 / SS304

ขนาด Gate Valve

Size 5″
C 210
D 250
d 125
g 182
H 630
L 257
T 20
t 2
W 300
